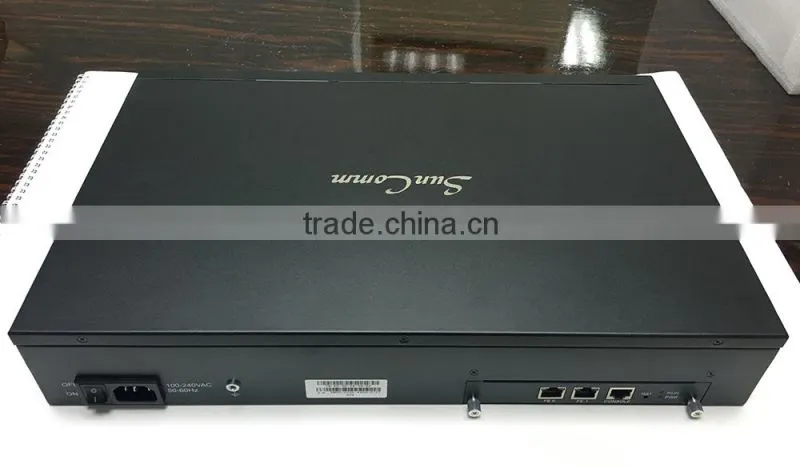

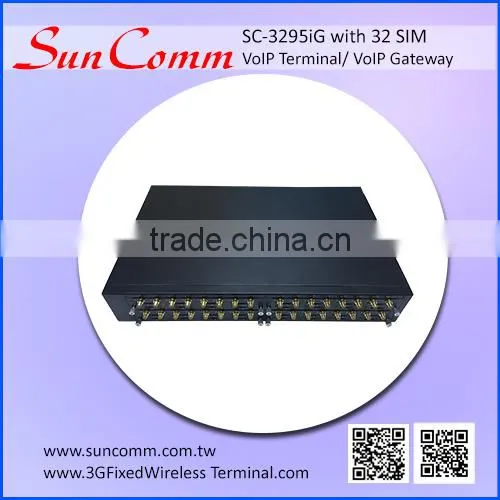

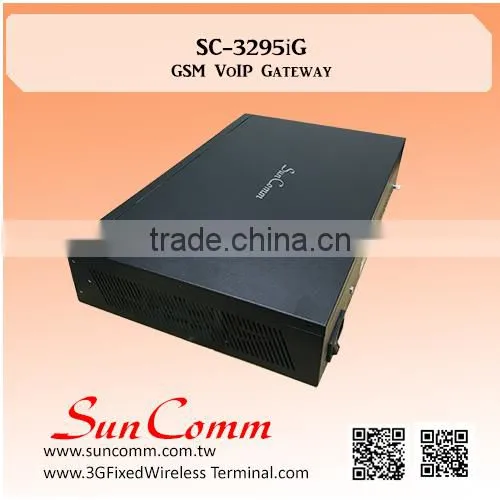

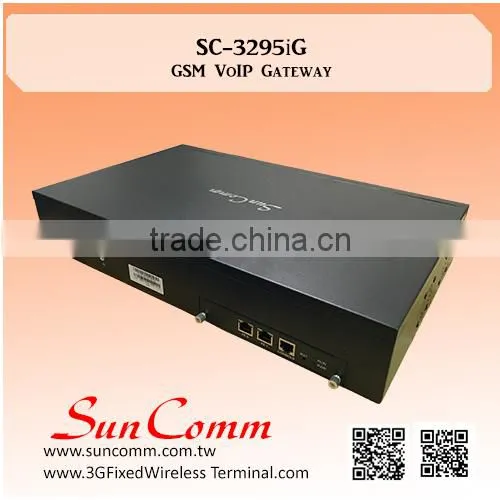

SC-3295iG with GSM 32 SIM, 1LAN, Quad band VoIP Gateway
SC-3295iG with 32 SIM is an effective device for GSM/CDMA - SIP conversion for GSM/CDMA termination & GSM/CDMA origination. Up to 16/ 32 SIM card can operate simultaneously. They are compatible with standard SIP IP PBX, Soft switch and SIP Server for Call Center or ISP use.
Advantage:
- SNTP
- PIN modified
- Ping/ Tracer on web
- SMS/SMSC/USSD, support API
- Manually /automatically select operators
- BCCH (Lock frequency)
- Syslog way output tracking information
Voice:
² G.711A/U law, G.723.1, G.729A/B
² Silence Suppression & Detection
² Comfort Noise Generation (CNG)
² Voice Activity Detection (VAD)
² Echo Cancellation (G.168)
² Adaptive (Dynamic) Jitter Buffer
² Call Progress Tone Generation
² Programmable Gain Control
SIP:
² By port registration
² By device registration (share account)
² Support IP trunk and IP trunk group
² Two 183 mode
² Response code switch
² All ports busy, redirected to other device
Mobile:
² Quad band: 850/900/1800/1900MHz
² DTMF mode: Signal/RFC2833
² SMS/SMSC/USSD
² Provide API interface
² Call duration limitation
² One/two stage dial-up, Hotline
² Polarity Reversal
² Custom IVR
² PIN and IMEI modified
² Carrier select
² CLIR
² BCCH
Maintenance & Upgrade:
² Web based configuration
² Telnet configuration
² Configure backup/restore
² Firmware upgrade by TFTP
² Web & telnet login password modify; Factory reset
² Output CDR/Tracking news by syslog
² Ping and Tracer test on web
² Traffic statistics: TCP,UDP,RTP
² VoIP call statistics
² PSTN call statistics: ASR,ACD,PDD
Network Features:

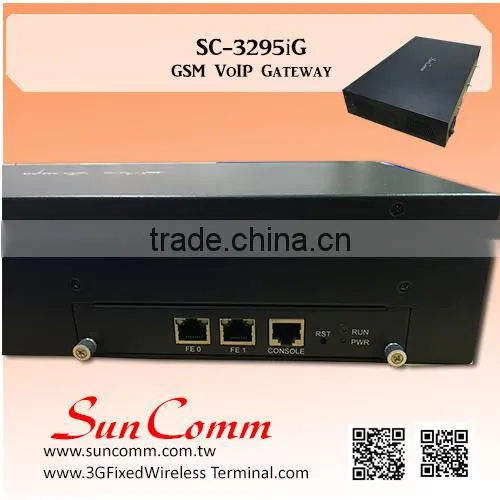

² Ethernet Interface: 1 x LAN*10/100M Base-Tx RJ45
² Management Interface: 1 Console RFC2833
² Static IP, PPPoE, DHCP
² Network Protocol Support: IP,TCP, UDP,TFTP, FTP, RTP, RTCP, ARP,RARP,ICMP, Ping, NTP, SNTP, Http, DNS
² NAT traversal: Static NAT, STUN
² Static/dynamic ARP request
² VLAN
Physical & Environments:

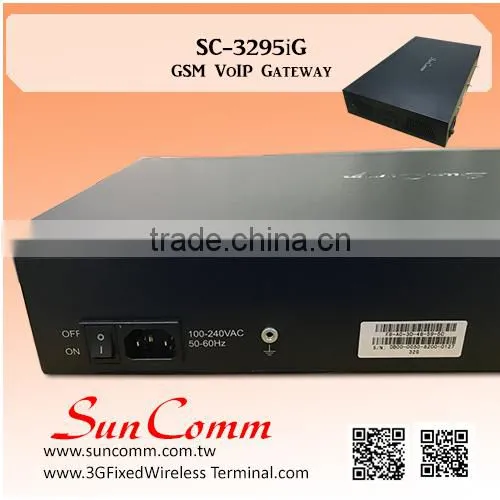

² Power: 220 VAC; Power consumption:80W
² Temperature (operation): 0 ℃ ~ 45 ℃; (storage): -20 ℃ ~80 ℃;
² Operation Humidity: 10%-90%; no condensation;
² Dimension: 440*330*66mm ;Weight: 6.4kg

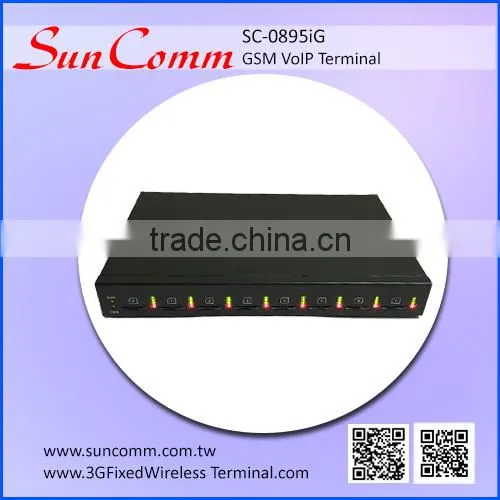

1. SC-0895iG with 8 SIM (Compact case)

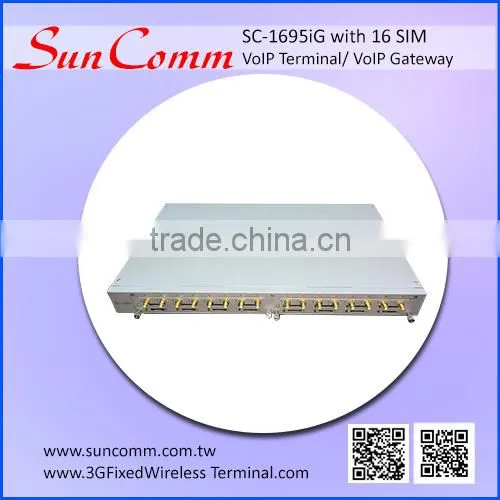

2. SC-1695iG with 16 SIM (1U, 19” rack mounting)
3. SC-3295iG with 32 SIM (1U, 19” rack mounting)
We also have CE Certifications for SC-9039-3G, SCG-4QE/ SCG-8QE, SC-368W, SC-396-GP3G/ SC-393-GP3G
