HK-A80 comprehensive mud logging gas chromatograph
Overview
By the use of GWDC (Greatwall Drilling company) ,our company latest developed HK-A80 comprehensive mud logging gas chromatograph, which conforms to standards of logging gas chromatograph. Adopted several kinds of domestic and foreign advanced technology, HK-A80 is also equipped with imported FID detector and rotary valve (All made in USA).Electronic pneumatic control module, gas source module, power supply module and drawer cabinet design will help you achieve mutil-site tasks and expand your work scope to the wild, Capability of 12 hours continuous unattended work mode make it ideal for comprehensive on-line mud logging analysis.
The functions:
Built-in touch screen industrial PC
Multi-detector for selection
Split system with micro-packed column
Negative pressures sample injection
Multi stream selection module
Explosion-proof design
Modular design for multi-column and multi-valve
Zero-leak diaphragm with purge vent
Quickly on-site mud logging analysis

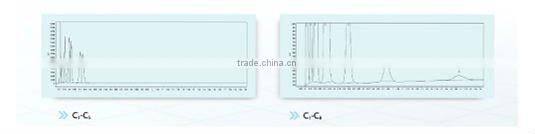

One machine with double functions, 25 sec analyzes C1~C5, 115 sec analyzes C1~C8
All intelligent control, automatic ignition, automatic base line Calibration, automatic fault diagnosis
Measuring scope: component 5*10 -6-100%, total hydrocarbon: 10-5-100%
Natural chromatographic analysis

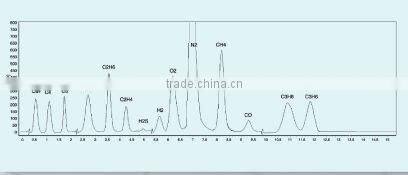

Separation for many valves and columns, TCD system analysis H2, O2, CH4, CO, C2H6, CO2, H2S, C2H4, C3H8, C3H6, C4, C5, C6+ and ect.
Analytical process

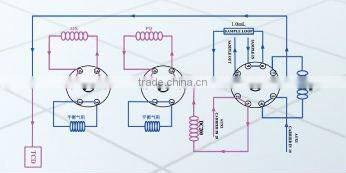

The analytical system consists of a ten connection valve, two 6-way valve, four Chromatographic column and one thermal conductivity detector.
The flow diagram lies in original state, when put the sample into No. 9 mouth of valve V1 into quantitative tube 1, after sweeping clean, switch V1 from OFF to ON, carrier gas 1 takes sample into analytical column DC200, before components flowing out, switch valve 1 from OFF to ON, C6+ was flow back to TCD, examined.
Components O2, N2, CH4, CO, CO2 and C2 flow out from DC200 and flow into chromatographic column PQ, and when components H2S, C3 and above have not flowed out, switch the valve V2 from OFF to ON. Then H2S, C3 and above will be brought into detector TCD by gas carrier 2 and be detected, switch the valve V2 from ON to OFF. Before CO2 and C2 flowing out, O2, N2, CH4, CO flow into chromatographic column 13X, switch the valve V3 from OFF to ON. Components CO2 and C2 will be detected by TCD in sequence. Switch the valve V3 from ON to OFF, components O2, N2, CH4 and CO will be detected. Analysis process finish.
