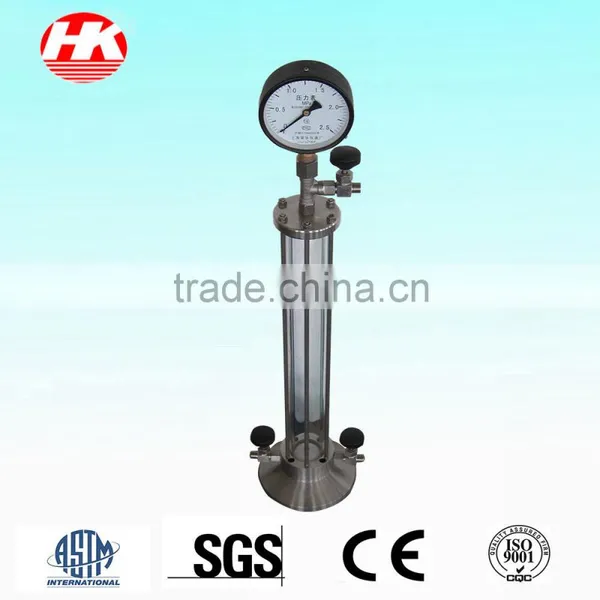

Help CenterHK-3004 Pressure Hydrometer Cylinder for LPG
Related Products
-
HK-3004A ASTM D1657 LPG Density Pressure Hydrometer TesterUS$ 1,100 - 1,200MOQ: 1 Set -
HK-3004A ASTM D1657 LPG Pressure Hydrometer BathUS$ 4,100 - 4,200MOQ: 1 Set
-
HK-3004A ASTM D1657 Density by Pressure Hydrometer Method Testing EquipmentUS$ 4,100 - 4,150MOQ: 1 Set
-
HK-3004A Pressure Hydrometer Bath for LPGUS$ 4,100 - 4,150MOQ: 1 Set
-
HK-3004A Liquefied Petroleum Gas Density Tester (pressure Hydrometer Method)US$ 4,100 - 4,200MOQ: 1 Set
Overview
Density analyzer for liquefied petroleum gas is produced in accordance with national standard ISO3993, taking American standard ASTM D1657, British standard IP 235, and Japanese standard JISK 2558 as reference.
The analyzer is used for measuring the density and relative density of liquefied petroleum gas and light hydrocarbon with vapor pressure no more than 1.4MPa (absolute pressure is 1.5MPa).
For the density meter, the standard temperature shall be 20°C or 15°C. For relative density, the standard temperature is mostly 15.56°C. The pressure vessel of the analyzer has a structure comprising of hydraulic oil synthetic rubber and metal flange at both ends, a pedestal at the bottom end and a pressure cylinder clamped with 6 bolts. The vessel is equipped with pressure gauge and exhaust needle valve at the upper end, while LPG inlet and outlet needle valve at the lower end.
Technical parameters
Working pressure: |
1.2MPa |
Diameter of inlet and outlet tube: |
6mm |
Diameter of pressure cylinder: |
51mm, thickness 6.5mm |
Length of pressure cylinder: |
445mm |
