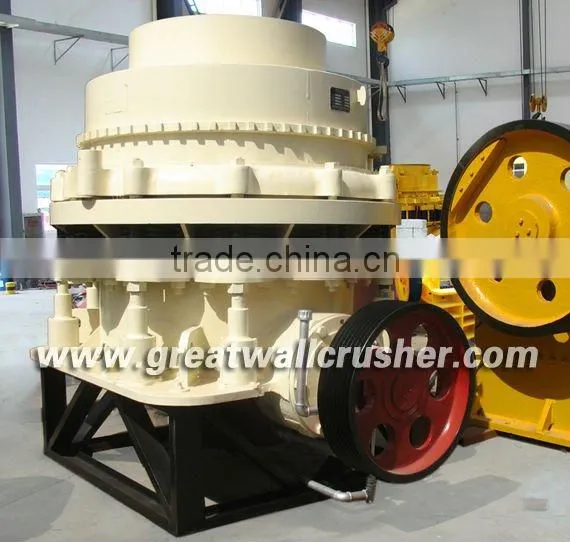

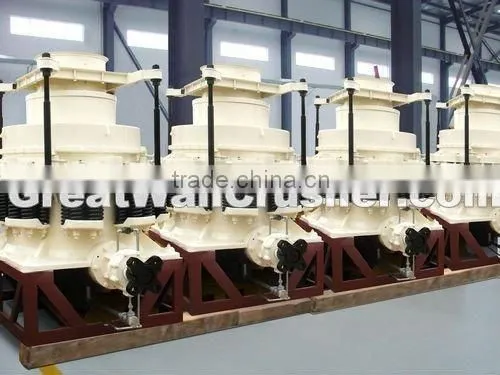

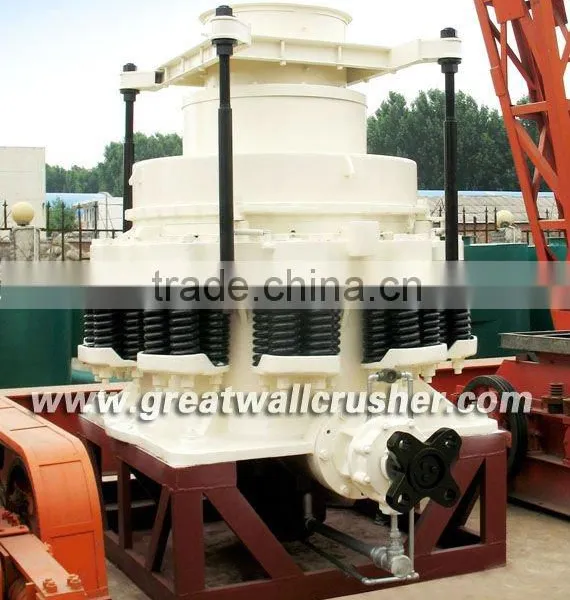

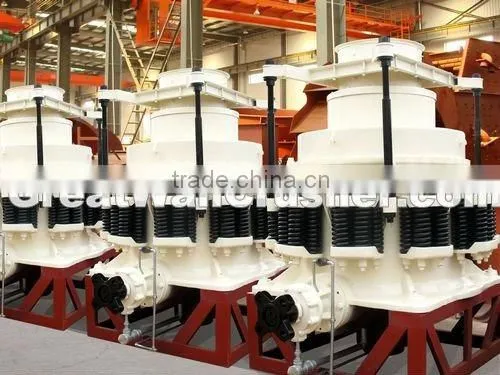

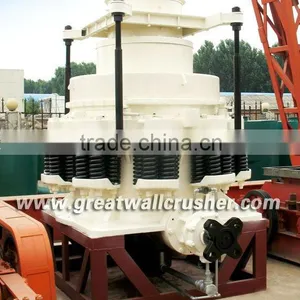

Spring Cone Crushing Machine1. High capacity
2. Easy operation
3. Long life for wearing parts
4. ISO9001:2008
Alibaba Best Seller Spring Cone Crushing Machine
Spring Cone Crusher Usage and Application
Our Spring cone crusher is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgy and so on. It can crush materials with Moh's scale in middle and high hardness such as ironstone, copper ore, limestone, quartz, granite, rock and so on. The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing.
Spring Cone Crusher Working Principle
When spring cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle close to the bowl liner and far away from the bowl liner from time to time. The raw materials are pressed, impacted and finally crushed in the crushing cavity.
Spring Cone Crusher Features
1. High capacity and good quality;
2. Long life for quick-wear parts, and low investment cost;
3. Dilute petrol stations for continuous lubrication to reduce downtime maintenance time.
Spring Cone Crusher Main Specifications
Model |
Max. Feeding Sizes |
Adjustable Range of Output size |
Capacity |
Motor Power |
Weight |
Overall |
PYB600 |
65 |
12-25 |
10-25 |
30 |
5 |
2234×1370×1675 |
PYD600 |
35 |
3-13 |
5-20 |
30 |
5.5 |
2234×1370×1675 |
PYB900 |
115 |
15-50 |
50-90 |
55 |
11.2 |
2692×1640×2350 |
PYZ900 |
60 |
5-20 |
20-65 |
55 |
11.2 |
2692×1640×2350 |
PYD900 |
45 |
3-13 |
15-50 |
55 |
11.3 |
2692×1640×2350 |
PYB1200 |
145 |
20-50 |
110-168 |
110 |
24.7 |
2790×1878×2844 |
PYZ1200 |
100 |
8-25 |
42-135 |
110 |
25 |
2790×1878×2844 |
PYD1200 |
50 |
3-15 |
18-105 |
110 |
25.6 |
2790×1878×2844 |
PYB1750 |
215 |
25-60 |
280-480 |
160 |
50.3 |
3910×2894×3809 |
PYZ1750 |
185 |
10-30 |
115-320 |
160 |
50.3 |
3910×2894×3809 |
PYD1750 |
85 |
5-15 |
75-230 |
160 |
50.4 |
3910×2894×3809 |
PYB2200 |
300 |
30-60 |
490-800 |
260/280 |
80 |
4622×3302×4470 |
PYZ2200 |
230 |
10-30 |
200-580 |
260/280 |
80 |
4622×3302×4470 |
PYD2200 |
100 |
5-15 |
120-340 |
260/280 |
81.4 |
4622×3302×4470 |
