"Great Wall Make Great Machine"

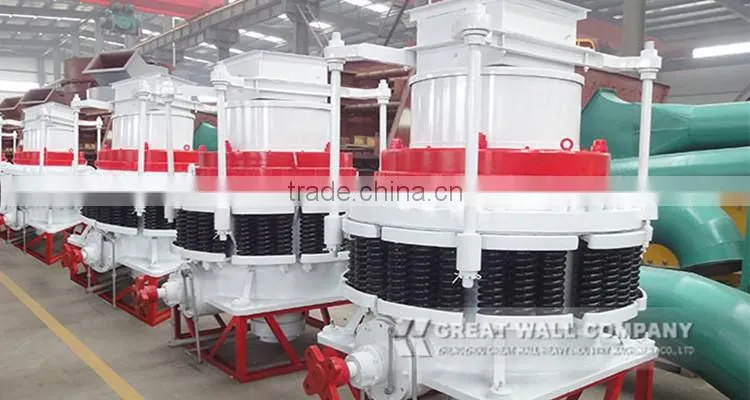

Great Wall PYB cone crusher, PYD cone crusher
Great Wall PYB cone crusher, PYD cone crusher Usage and Application

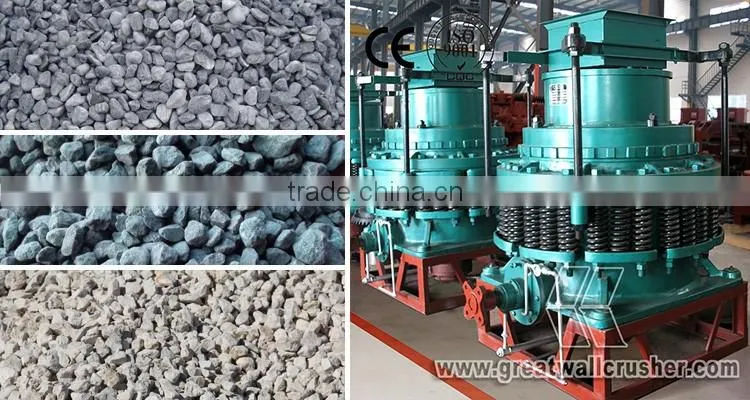

Great Wall PYB cone crusher, PYD cone crusher is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgy and so on. It can crush materials with Moh’s scale in middle and high hardness such as ironstone, copper ore, limestone, quartz, granite, rock and so on. The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing.
Great Wall PYB cone crusher, PYD cone crusher Working Principle
When the Great Wall PYB cone crusher, PYD cone crusher for stone chip is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle close to the bowl liner and far away from the bowl liner from time to time. The raw materials are pressed, impacted and finally crushed in the crushing cavity.
Great Wall PYB cone crusher, PYD cone crusher Features
1. High capacity and good quality;
2. Long life for quick-wear parts, and low investment cost;
3. Dilute petrol stations for continuous lubrication to reduce downtime maintenance time.
Great Wall PYB cone crusher, PYD cone crusher Main Specifications
|
Model |
Max. Feeding Sizes |
Adjustable Range of Output size |
Capacity |
Motor Power |
Weight |
Overall |
PYB600 |
65 |
12-25 |
10-25 |
30 |
5 |
2234×1370×1675 |
PYD600 |
35 |
3-13 |
5-20 |
30 |
5.5 |
2234×1370×1675 |
PYB900 |
115 |
15-50 |
50-90 |
55 |
11.2 |
2692×1640×2350 |
PYZ900 |
60 |
5-20 |
20-65 |
55 |
11.2 |
2692×1640×2350 |
PYD900 |
45 |
3-13 |
15-50 |
55 |
11.3 |
2692×1640×2350 |
PYB1200 |
145 |
20-50 |
110-168 |
110 |
24.7 |
2790×1878×2844 |
PYZ1200 |
100 |
8-25 |
42-135 |
110 |
25 |
2790×1878×2844 |
PYD1200 |
50 |
3-15 |
18-105 |
110 |
25.6 |
2790×1878×2844 |
PYB1750 |
215 |
25-60 |
280-480 |
160 |
50.3 |
3910×2894×3809 |
PYZ1750 |
185 |
10-30 |
115-320 |
160 |
50.3 |
3910×2894×3809 |
PYD1750 |
85 |
5-15 |
75-230 |
160 |
50.4 |
3910×2894×3809 |
PYB2200 |
300 |
30-60 |
490-800 |
260/280 |
80 |
4622×3302×4470 |
PYZ2200 |
230 |
10-30 |
200-580 |
260/280 |
80 |
4622×3302×4470 |
PYD2200 |
100 |
5-15 |
120-340 |
260/280 |
81.4 |
4622×3302×4470 |

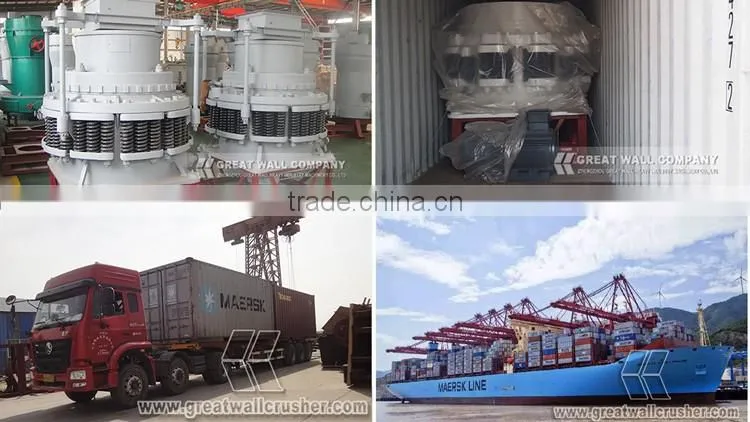

The machine is fixed tightly when it is sent to the port by professionale truck. Before shipped, it is covered by waterproof material to avoid moisture and rough handling.
Great Wall Company is a professional machine manufacturer with more than 30 years' experience, which specializes in manufacturing all kinds of large and medium sized heavy industry machines. The company not only has established system of designing, testing, inspecting and measuring, but also all kinds of modern production equipments, such as casting , heat treating, welding, machining and so on .
Great Wall Company has professional technology and great production strength, which can meet customers' growing demands. We will spare no efforts to keep improving ourselves to develop our company to be a well-known international enterprise with core competitiveness
We can not only provide wholeheartedly service but also longtime warranty after sale. Before sale, our professional engineer would customize the client according to the production situation and demand. The machine we recommend is NOT the most expensive, NOT maximum profit for us, but the suitable. We insist the concept of “win-win” at the basic of the maximum profit for client. Our aim is to ensure the client to expend least money but create the greatest profit.
After sale, the machine has the 12 months warranty. But one different point from other manufacturers is we provide the professional technology support in the production progress. Any problems about the production, our senior engineer would help to solve them.

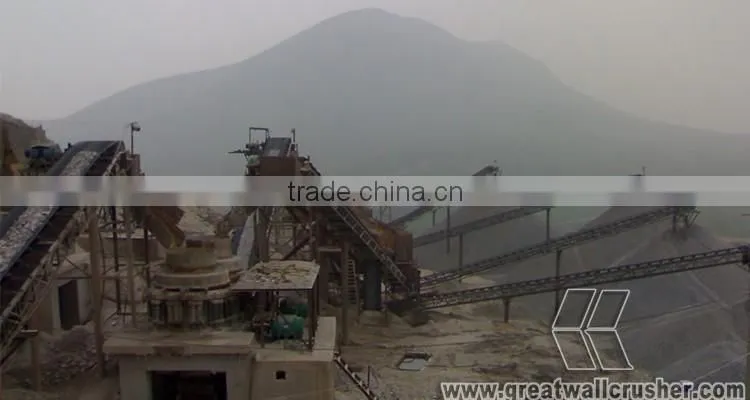

60 TPH PYB cone crusher for stone with 3-5 mm size
In a river stone crushing plant, a secondary crusher is need. The main specification as follows:
Material: stone
Capacity: 60 TPH
Input size: 2 inch
Output size: 3-5 mm
When looking for a secondary crusher, we should take the raw material into consideration. The hardness of stone belongs to medium and high hardness, so a cone crusher machine is suitable. Then we choose a right model according to the capacity, input size and output size. As for this situation, a spring cone crusher machine PYB 900 is enough, which costs least.
900 Cone Crusher is applied to secondary and fine crushing with large efficient and low investment cost. So it enjoys a great prestige in crushing machine.
Do not hesitate send us inquiry for more details about the Great Wall PYB cone crusher, PYD cone crusher.
