2W 0-10dB DC-3GHz SMA Attenuator, Manually Variable Attenuator
- 200 Piece / Pieces per Month
- Shanghai Shenzheng Ningbo
- T/T L/C D/P D/A Credit Card
- RF Variable Step Attenuator(0-90dB 2/5/10Watts DC-3G)
- 2.4GHz 802.11b/g/n 4W WIFI Signal Booster ( 1000mW 4W 2.4G WIFI Booster Amplifier For outdoor WIFI )
- 802.11b/g/n 1000mW 5W 2.4GHz WIFI Signal Booster ( 2.4G WIFI Signal Amplifier For WLAN )
- 5.8GHz 802.11a/n 2w Signal Booster ( outdoor wifi signal booster for 1000mW 2w amplifier )
- 2.4GHz 802.11b/g/n 5W WIFI Signal Booster ( 1000mW 2.4G WIFI amplifier For out door 5W wifi booster )
- 2.4G 802.11b/g/n 20W WIFI Signal Booster with 1000mW 2.4GHz wifi signal booster 20W for 5km outdoor wifi
Product Details
Place of Origin: | Anhui, China | Brand Name: | Setsail | Model Number: | YFA-10-1-3G-N/S |
Packaging Details
standard cartons for 2W 0-10dB DC-3GHz SMA Attenuator, Manually Variable Attenuator
Product Description
2W 0-10dB DC-3GHz SMA Attenuator, Manually Variable Attenuator
Model | YVA-1-0.1-3G-N/S | YVA-10-1-3G-N/S | YVA-60-10-3G-N/S | YVA-90-10-3G-N/S |
Step Value(dB) | 0-1dB in 0.1dB step | 0-10dB in 1dB step | 0-60dB step in 10dB step | 0-90dB in 10dB step |
Frequency(GHZ) | DC-3GHz | |||
Insertion Loss(dB) | max 0.5 | max 0.5 | max 0.5 | max 0.5 |
Attenuation Accuracy(dB) | ±0.2 | ±0.5 | ±0.5( max 50dB) ±0.8 or ±3% (min 50dB) | ±0.5( max 50dB) ±3.5% (min50dB) |
VSWR | max 1.30 | max 1.30 | max 1.30 | max 1.30 |
Average Power (W) | 2 | |||
Impedance(ohm) | 50 | |||
RF Connector | N(F,F) or SMA(F,F) | |||
Color | Grey or Blue | |||
Weight | 0.25 |
Noted: all the technical specifications can be changed as customer's requirement

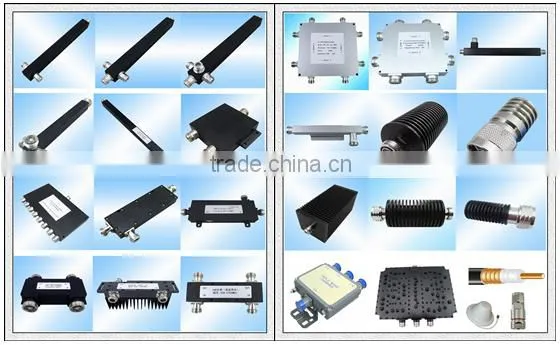

Product Range: RF/Passive/Microwave Components in Telecommunication field.
Product Name: Power Splitter, Directional Coupler, 3dB Hybrid Coupler, Triplexer, Diplexer, Hybrid Combiner, Attenuator, Termination, Cable, Antenna, Connector, Isolator, Circulator and so on.
Application Range: IBS and BTS construction and installation, Military Telecommunication, Products Frequency Range is wide from 0-40Ghz.
Product Features:
Wide Frequency Band 698-2700MHz
Low Passive Intermodulation(-150dBc)
Low VSWR & Insertion Loss
Indoor & Outdoor Application, IP65
Widely used for In-building Solutions
