RF Winkinson Coaxial Reverse Power 10W Isolator
RF Characteristics
Model NO |
TNK6060EG-1 |
|
Frequency Range |
150-160MHz |
|
Forward Power |
80W CW |
|
Reverse Power |
10W CW |
|
Connector |
N-K/K |
|
ROHS Compliant |
Yes |
|
Insert loss |
0.60dB max |
0dB max |
Isolation |
23dB min |
0dB min |
VSWR |
1.20 min |
0 min |
Operating temperature range |
0~+60℃ |
-40~+85℃ |
Model |
Freq (MHz) |
Insertion Loss (dB max) |
Isolation(dB) min |
VSWR min |
Forw Power (W) |
Reverse Power(W) |
Connector |
Temp(deg) |
YC-0709-N/S |
700-900 |
0.4 |
18 |
1.3 |
100 |
100 |
SMA-F |
-30~+70 |
YC-0810-N/S |
800-1000 |
0.4 |
20 |
1.25 |
100 |
100 |
N-F |
-30~+70 |
YC-08080N/S |
805-870 |
0.3 |
23 |
1.20 |
200 |
200 |
N-F |
-30~+70 |
YC-0809-N/S |
860-960 |
0.3 |
23 |
1.20 |
100 |
100 |
SMA-F |
-30~+70 |
YC-0912/N/S |
960-1215 |
0.4 |
20 |
1.25 |
200 |
200 |
N-F |
-30~+70 |
YC-1015/N/S |
1000-1500 |
0.6 |
18 |
1.30 |
200 |
200 |
N-F |
-30~+70
|
Noted: all the technical specifications can be changed as customer's requirement

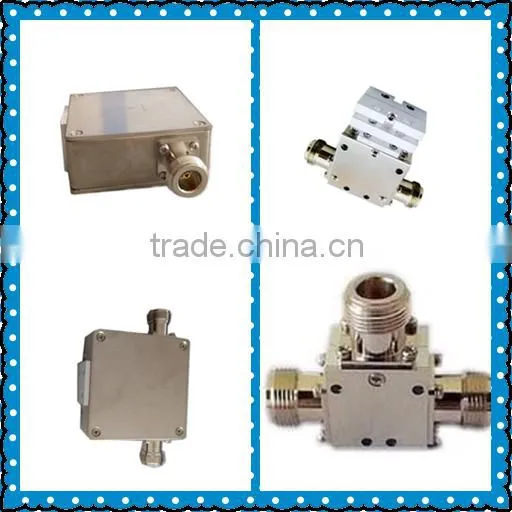

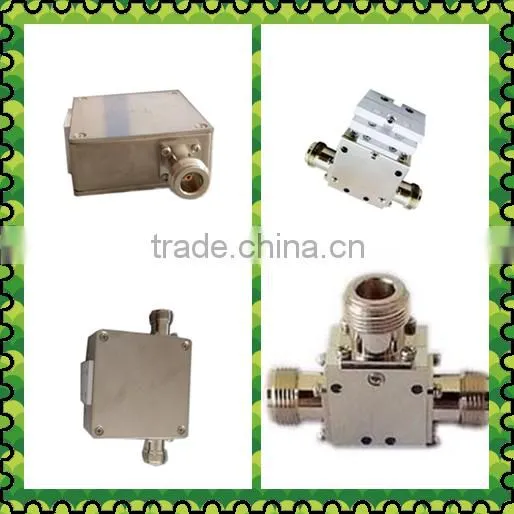

Coaxial Isolators & Circulators
Design Features
Can be dual junction even three for high isolation
High RF Performance, ultra-competitive price
Military, space and commercial applications
Custom design available upon request
Guaranteed one year standard

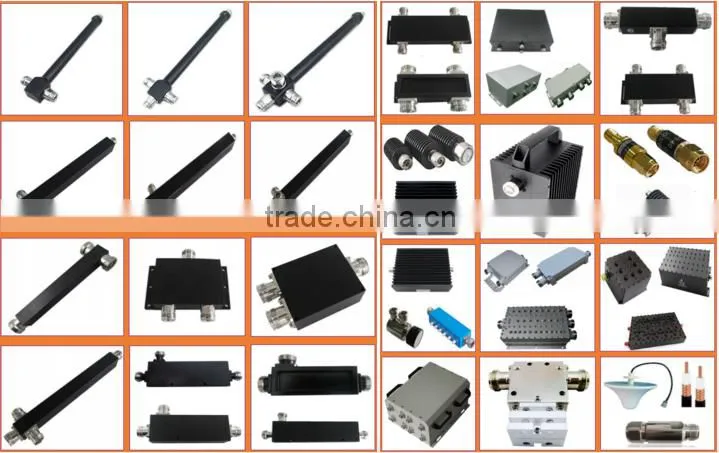

Other Products
Product Range: RF/Passive/Microwave Components in Telecommunication field.
Product Name: Power Splitter, Directional Coupler, 3dB Hybrid Coupler, Triplexer,
Diplexer, Hybrid Combiner, Attenuator, Termination, Cable, Antenna, Connector,
Isolator, Circulator and so on.
Application Range: IBS and BTS construction and installation, Military Telecommunication, Products Frequency
Range is wide from 0-40Ghz.
FAQ:
Q:What is your payment terms? A:We accept the T/T, Western Union, L/C and so on.
Q:When can you arrange the shipment after I have placed an order? A: we can arrange shipment within 3days.If for the earphone and antenna, usually we can arrange the shipment 5-7days.
Q: Could you supply the sample for me to test first ? A: Yes, we can supply the sample first, however, the customer should bear the cost.
Q: What is the MOQ of your products? A: Usually, it is serious requirement. However, it depends on different products.
Q. Q: Can you accept Customized ? A: OEM and ODM are welcomed
Warranty and return :
1. All products accessories have been checked for 3 times before shipping out.
2. All products have one year warranty. If there is no man-made problems,
we will replace or repair for you.
