RF10/20/50/100/150/200 W Rf N/SMA Coaxial Isolators
- Shanghai Ningbo
- T/T Money Gram Credit Card PayPal
You May Like
Product Details
| Brand Name | Setsail | Model Number | YFI-400A |
RF10/20/50/100/150/200 W Rf N/SMA Coaxial Isolators high quality and international package material for RF10/20/50/100/150/200 W Rf N/SMA Coaxial Isolators
Product Description
RF10/20/50/100/150/200 W Rf N/SMA Coaxial Isolators
RF Characteristics
Model | Freq (MHz) | Insertion Loss (dB max) | Isolation(dB) min | VSWR min | Forw Power (W) | Reverse Power(W) | Connector | Temp(deg) |
YC-0709-N/S | 700-900 | 0.4 | 18 | 1.3 | 100 | 100 | SMA-F | -30~+70 |
YC-0810-N/S | 800-1000 | 0.4 | 20 | 1.25 | 100 | 100 | N-F | -30~+70 |
YC-08080N/S | 805-870 | 0.3 | 23 | 1.20 | 200 | 200 | N-F | -30~+70 |
YC-0809-N/S | 860-960 | 0.3 | 23 | 1.20 | 100 | 100 | SMA-F | -30~+70 |
YC-0912/N/S | 960-1215 | 0.4 | 20 | 1.25 | 200 | 200 | N-F | -30~+70 |
YC-1015/N/S | 1000-1500 | 0.6 | 18 | 1.30 | 200 | 200 | N-F | -30~+70
|
Noted: all the technical specifications can be changed as customer's requirement
Coaxial Isolators & Circulators

Design Features
Can be dual junction even three for high isolation
High RF Performance, ultra-competitive price
Military, space and commercial applications
Custom design available upon request
Guaranteed one year standard

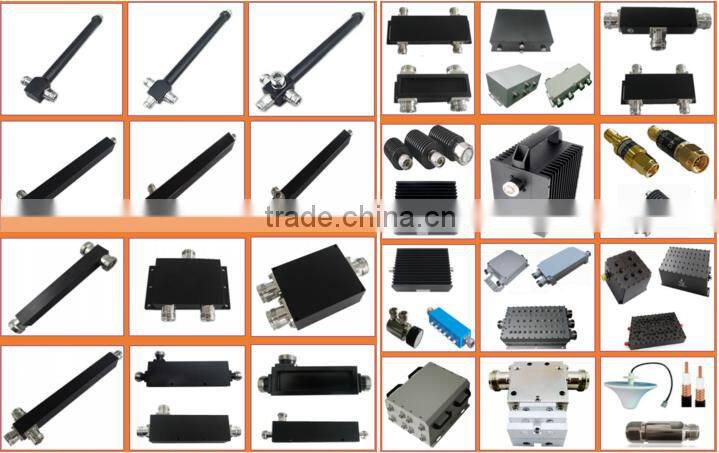

Other Products
Product Range: RF/Passive/Microwave Components in Telecommunication field.
Product Name: Power Splitter, Directional Coupler, 3dB Hybrid Coupler, Triplexer,
Diplexer, Hybrid Combiner, Attenuator, Termination, Cable, Antenna, Connector,
Isolator, Circulator and so on.
Application Range: IBS and BTS construction and installation, Military Telecommunication, Products Frequency
Range is wide from 0-40Ghz.
FAQ:
Q:What is your payment terms? A:We accept the T/T, Western Union, L/C and so on.
Q:When can you arrange the shipment after I have placed an order? A: we can arrange shipment within 3days.If for the earphone and antenna, usually we can arrange the shipment 5-7days.
Q: Could you supply the sample for me to test first ? A: Yes, we can supply the sample first, however, the customer should bear the cost.
Q: What is the MOQ of your products? A: Usually, it is serious requirement. However, it depends on different products.
Q. Q: Can you accept Customized ? A: OEM and ODM are welcomed
Warranty and return :
1. All products accessories have been checked for 3 times before shipping out.
2. All products have one year warranty. If there is no man-made problems,
we will replace or repair for you.
Our Company

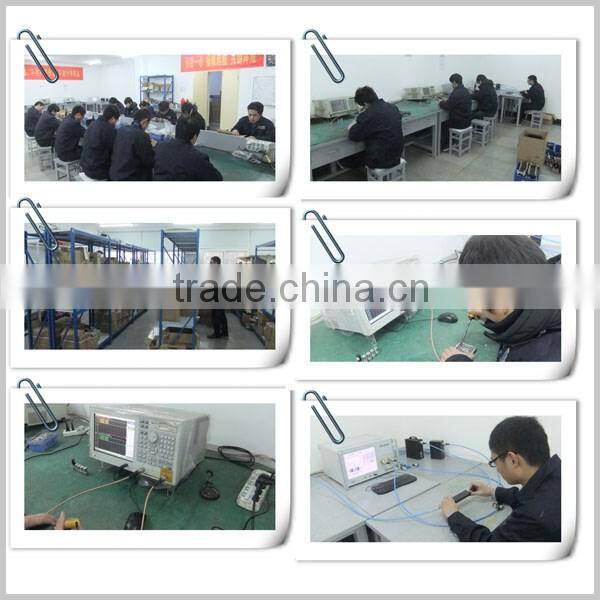

Company Profile
Hefei Setsail Telecom,Co,Ltd (established in 2002) is an Professional Manufacturer of RF Passive Components:Power Spliter, Directional Coupler, 3dB Hybrid Coupler, Combiner, Dummy Load/Termination, Attenuator, Duplexer, Isolator, Cable, Connector and Antenna. 1. Hefei Setsail Telecom,Co,Ltd is established in 2002.located in Hefei National Hi-tech Industry Development Zone.We focus on Microwave Technology Research,RF,Microwave Components and System Industry Development.Our products are widely used in communication network,satellite orientation,radar and military field.We offer a highly diversified product line that serves top tier telecom,satellite companies. 2. Products include 10 series and 100 designs with their own property right and authority approval.The products line have Hybrid Coupler,Power Splitter,Directional Coupler ,Coaxial Attenuator,Coaxial Termination,Cable Assembly,Connector,Arrester,Filter,Duplexer,Combiner and so on .Customer designs (OEM/ODM) are also available. 3. Headquarters of Setsail is located at hi-tech developing district in Hefei Anhui,includeing two factories, At the same time,Setsail's market network has been all over the world. 4. Setsail company has a tremendous fellowship that is compased of many high-level technologists .And also has established a research institution which cooperating with some famous universities.(University of Science and Technology of China.) 5.All the staffs are filled with confidence ,attending the market cpmpetition and offering clients the exquisite technology,reasonable price,excellent quality and best service.
