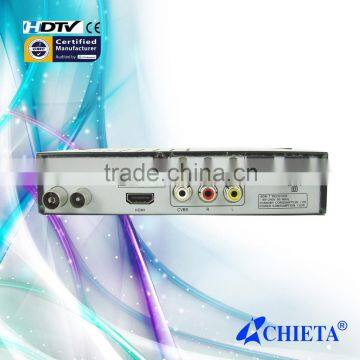

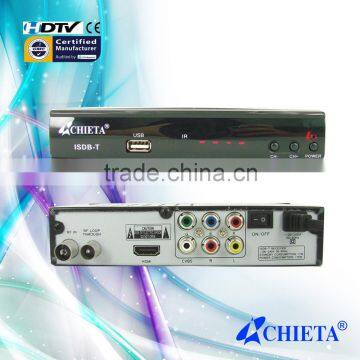

Help CenterMSD7T01 Chipset HD 1080P ISDB-T Digital Terrestrial TV Receiver With MPEG-2/MPEG-4 Decoding
Related Products
-
Black Classical Full HD Receiver DVB-T2 Terrestrial TV Set Top Box With USBUS$ 1 - 15MOQ: 1000 Pieces -
PVR Playback FTA Receiver DVB-T2 Terrestrial TV Set Top BoxUS$ 1 - 15MOQ: 1000 Pieces
-
FTA Receiver DVB-T2 Terrestrial TV Set Top BoxUS$ 1 - 15MOQ: 1000 Pieces
-
1080P Full HD Digital DVB-T2 Terrestrial Receiver DVB-T TV BOX for Home UseUS$ 1 - 12MOQ: 2000 Pieces
-
Metal Housing Full HD 1080P 220mm DVB-T2 Terrestrial TV Receiver With Digital LED DisplayUS$ 1 - 15MOQ: 1000 Pieces
Feature
*Fully compliant Brazil ISDB-T

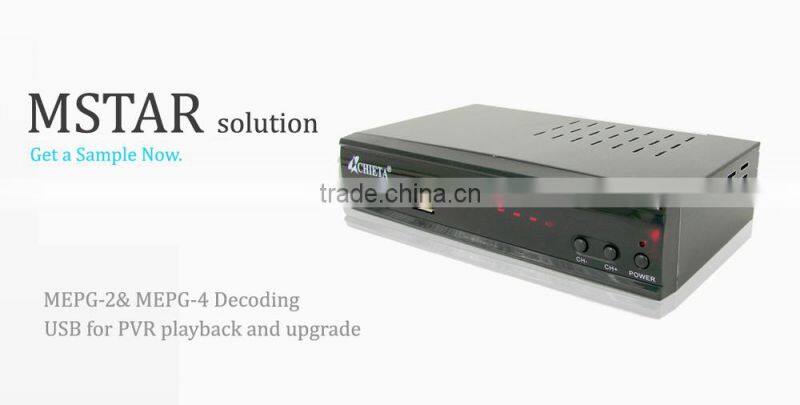

*MPEG-2/ MPEG-4 decoding
*Full definition1080P
*Supports USB update ,PVR playback
*Full compliant H.264 MP&HP @L4

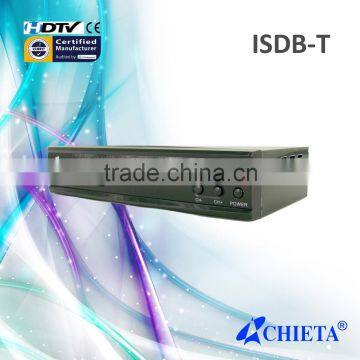

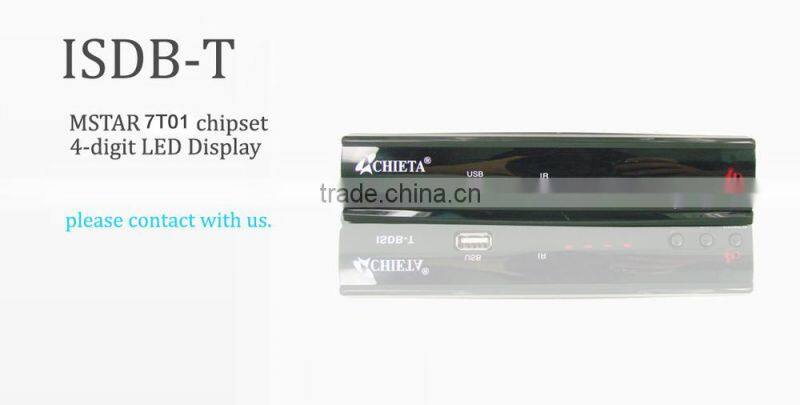

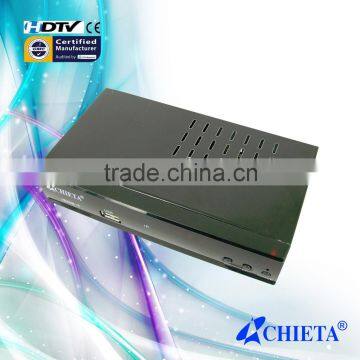

MSD7T01 Chipset HD 1080P ISDB-T Digital Terrestrial TV Receiver with MPEG-2/MPEG-4 Decoding
* Fully compliant Brazil ISDB-T
* Full Segment standard MPEG-4 ASP @ L5 HD resolution
* Fully compliant H.264 MP&HP @L4
* Frequency Range:VHF:177.143~213.143 MHz. UHF:473.143~803.143MHz.

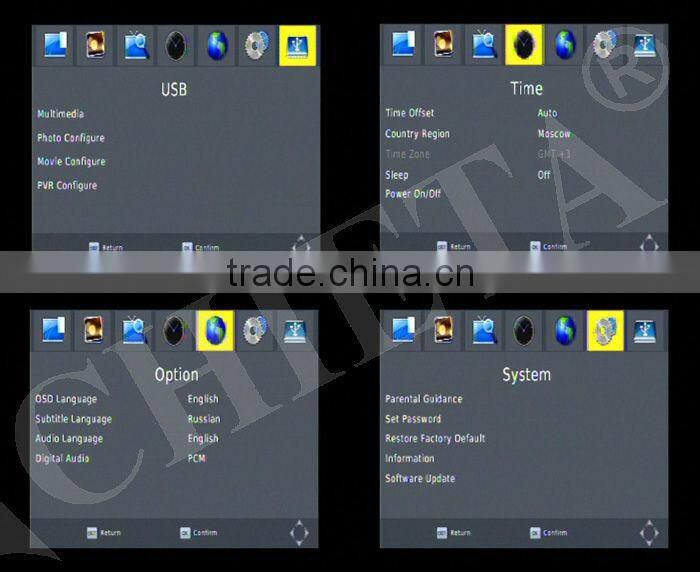

* Multi-language OSD support: English, Portuguese, Spanish
* Fully compliant MEPG-2 MP @ HL and MP @ML

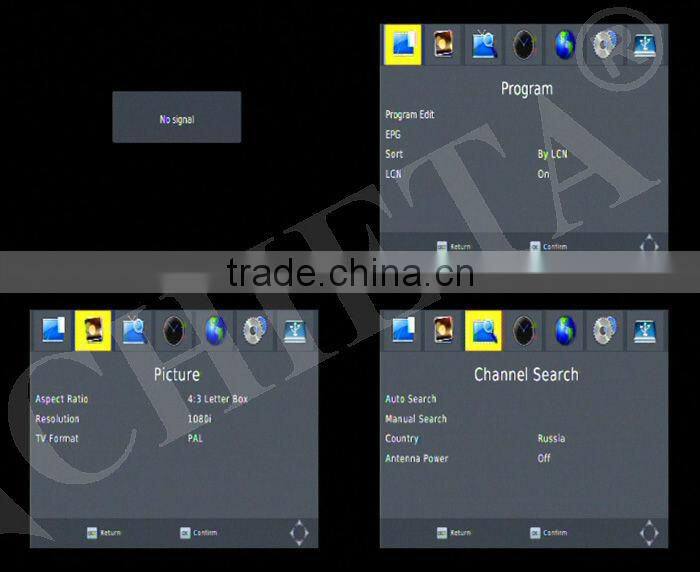

* Fully support to Electronic Program Guide (EPG)
* S/PDIF Digital audio output interface
* Software upgrades USB2.0 Interface
* HDMI (High Definition Multimedia interface) output
* AC100~240V, 50Hz Power supply
* Recording TV and Playback JPEG/MP3 with External Storage Devices (USB2.0/HDD)
* Advanced Time-shift function

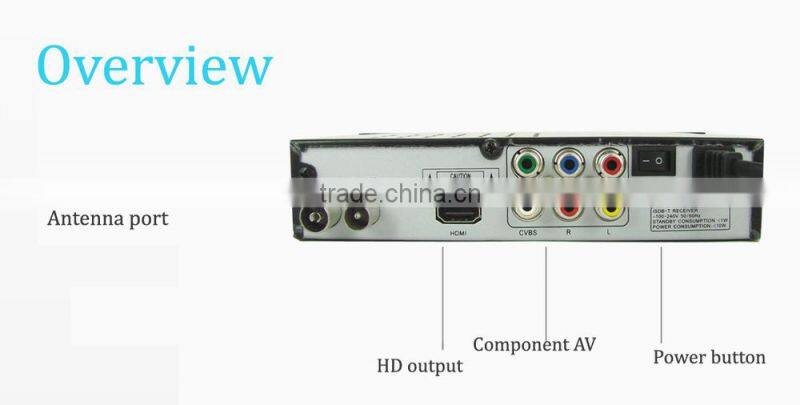

* CVB/RGB/YPbPr/HDMI output supported
* Multi-language audio and subtitle reception
* Teletext and subtitle output through OSD
* NIT search supported
* Timer function supported
* 16:9 aspect ratio supports through pan/scan or letter-boxing
* PVR Function supported
| Video | Decoder | MPEG-1/MPEG-2 MP@HL |
| H.264, MPEG-4 ASP@L5 HD/DivX(3.x~6.x) | ||
| Hardware Decoder | 422/411/420/444/440 | |
| Display Resolution | 1920×1080,1280×720,720×480 (i&p) | |
| Supported Videos | .avi,.mpg,.dat,.vob,.div,.mov,.mkv,.rmvb,.wmv,.flv,.ts | |
| Picture | Supported Picture | .jpg, .png, .bmp |
| Supported Audio | .wma,.mp3,m4a,.wav,.aac,.ogg | |
| Audio | Decoder | MPEG-1,MPEG-2(Layer I/II) |
| Mode | LEFT/RIGHT/STEREO/MONO | |
| Frequency | 32KHz,44.1KHz,48KHz | |
| Response | 20HZ~20KHZ +/-2Db | |
| TS Demux | Demultiplexer | MPEG2 ISO/IEC 13818-1 |
| Input Bit Rate | 120Mbps (serial)/15MBps (parallel) | |
| AV Output | Video Bandwidth | SD:5.0MHz(-3dB),HD:30MHz(-3dB) |
| Video Impedance | 75Ω | |
| Video Voltage Level | 1.0 Vp-p | |
| Audio Freq. Range | 20~20KHz | |
| Audio Impedance | 600Ω | |
| Audio Voltage Level | 2V rms(5.6Vp-p) | |
| Tuner | Input impedance | 75Ω |
| Bandwidth | 6MHz | |
| Input Frequency | 13-62 Ch(470mHz~806mHz) | |
| FEC | 1/2, 2/3, 3/4, 4/5,5/6, | |
| FFT Mode | 2K, 4K, 8K | |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 | |
| Demodulation | QPSK,16QAM,64QAM or DQPSK | |
| Environment | Power input voltage | AC 100~240V,50Hz/60Hz |
| Power Consumption | Max 12W | |
| Humidity | <95% | |
| Operation Temperature | 0°C~40°C |

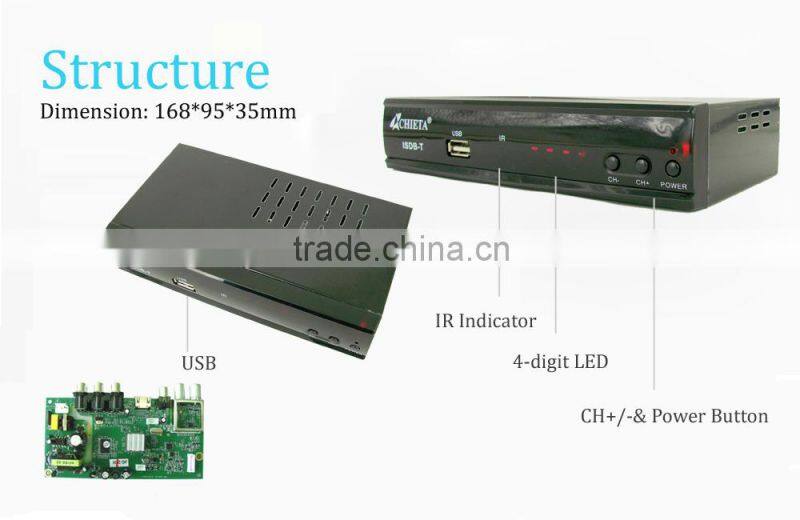

| Unit Packing Size | PCS/ Carton |
| 190*180*45mm | 20 pcs |
| Carton CBM (0.03m3) | QTY per Container |
| 41*30*33 cm | 20GP: 12100pcs |
| Box Type | 40GP: 27000pcs |
| Color/ Neutral | 40HQ: 33000pcs |
| Unit Weight: | Carton Weight: |
| N/A | N/A |
