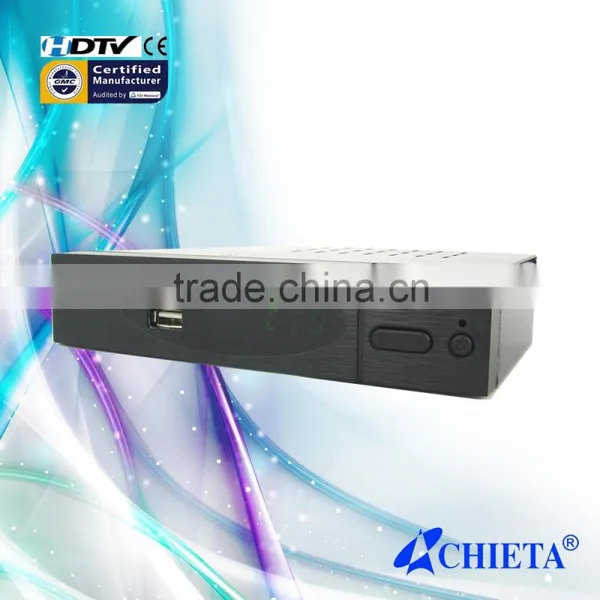

Help CenterMetal Housing Full HD 1080P 220mm DVB-T2 Terrestrial TV Receiver With Digital LED Display
Related Products
-
Full Digital Global DVB-T2 TV Receiver With Multi-functionUS$ 1 - 15MOQ: 1000 Pieces -
Multi-language DVB-T2 Terrestrial TV Set Top Box HD Digital TV TunerUS$ 1 - 15MOQ: 1000 Pieces
-
Mini Smart Design DVB-T2 Terrestrial Multi TV Receiver With HD OutputUS$ 1 - 15MOQ: 1000 Pieces
-
MSD7t01 Chipset 120mm Mini DVB-T2 Terrestrial Receiver Set Top Box With 4 Digit DisplayUS$ 1 - 15MOQ: 1000 Pieces
-
Full HD 1080P Visual DVB-S2 Digital Satellite TV Receiver Set Top BoxUS$ 1 - 30MOQ: 1000 Pieces
Feature
*Fully compliant with DVB-T2 standard
*MPEG-2/ MPEG-4 decoding
*Full definition1080P
*Supports USB update ,PVR playback

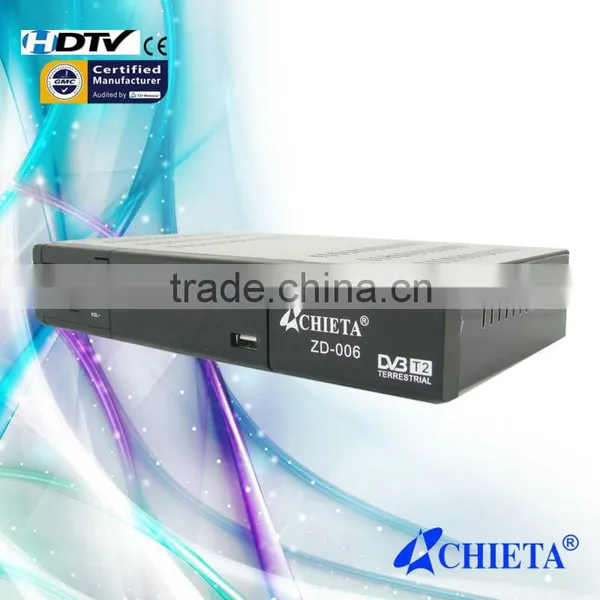

Metal Housing Full HD 1080P 220mm DVB-T2 Terrestrial TV Receiver with Digital LED Display
*Supports AVI,MPG,VOB,MPEG,DIV,etc multimedia play formats
*Video resolution support:1080P/1080i/720P/720I/576
*Multi language menu supported
*1000TV channels and radio programs avaiable
*Supports USB upgrade,PVR playback
*Standard Electronic Program Guide(EPG)
*Supports multi-search function,including automatic / manual / list search
*Screen display ratio:4:3 and 16:9
*Various channel editing function (Favorite , Move , Skip , Lock , and Delete)
*Switch power supply of AV 90~250V

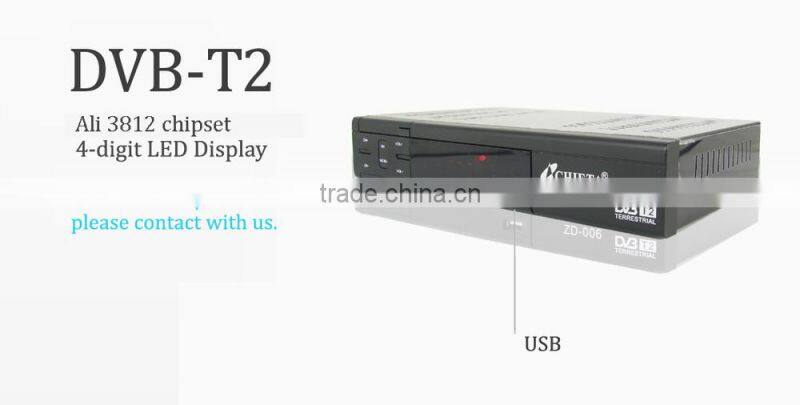

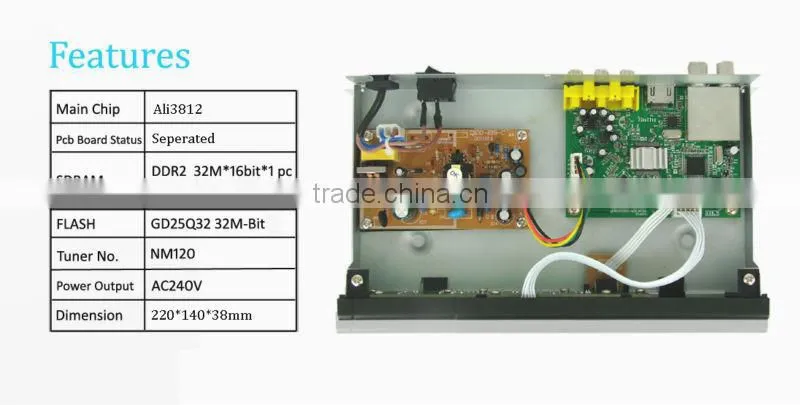

Chip & Board |
Main Chip |
Ali3812 |
SDRAM |
DDR232M*16bit*1pcs@1066Mhz |
|
Board Status |
Separated Powerboard and Mainboard |
|
TUNER Number |
NM120 |
|
TUNER TYPE |
Silicon |
|
Front Panel |
LED |
Power Indicator (LED):(Standby, Lock) / show channel number and etc. |
Key |
7PCS(Power, Up, Down, Left, Right, Confirm& Menu) |
|
USB |
x1 |
|

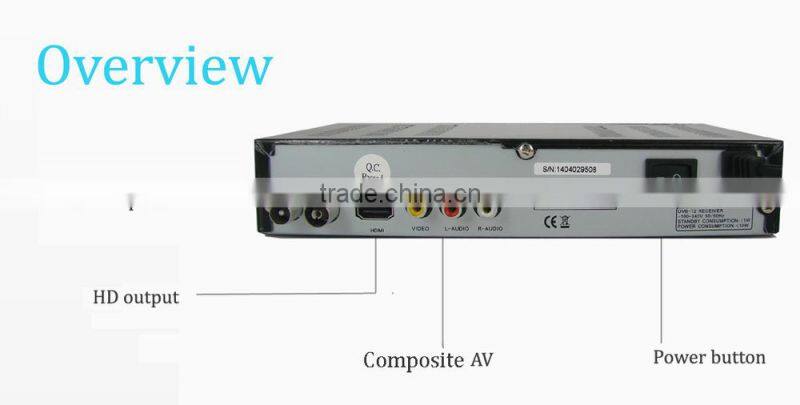

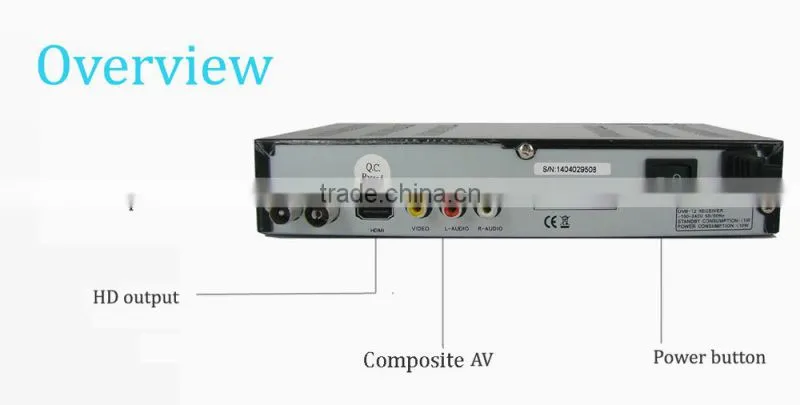

Rear Panel |
Tuner RF input connector |
IEC Female x1 |
Tuner RF Loop through connector |
IEC Male x1 |
|
CVBS |
x1 |
|
19 PIN Female HDMI 1.3b |
x1 |
|
On/ Off Switch |
x1 |
|
Basic User Interface Features (common features) | ||
OSD |
Supported Language |
English, French, German, Italian, Spainish, etc |
Subtitle |
English, French, German, Italian, Spainish, etc |
|
TV System |
Aspect Mode |
4:3,16:9 |
System Spec | ||
Video |
Decoder |
1. 1MPEG2 ISO/IEC 13818-2 MP@ML, |
|
2. H.264(MPEG4 part 10) main and high profile level 4.1 /MPEG-2 MP@HL |
|
Display Resolution |
1920×1080,1280×720,720×480 (i&p) |
|
Supported Videos |
.avi, .mpg, .dat, .vob, .div, etc |
|
Picture |
Supported Picture |
.jpg, .png, .bmp, etc |
Audio |
Supported Audio |
.wma, .mp3, .wav, etc |
Decoder |
MPEG-1 layerI/II,PCM downmix,IEC958 SPDIF |
|
|
Stereo Audio Decoding |
|
Mode |
LEFT/RIGHT/STEREO/MONO |
|
Frequency |
32KHz,44.1KHz,48KHz |
|
Response |
20HZ~20KHZ +/-2Db |
|
TS Demux |
Demultiplexer |
MPEG2 ISO/IEC 13818-1 |
Input Bit Rate |
Max 100Mbit/s |
|
AV Output |
Video Bandwidth |
SD:5.0MHz(-3dB),HD:30MHz(-3dB) |
Video Impedance |
75Ω |
|
Video Voltage Level |
1.0 Vp-p |
|
Audio Freq. Range |
20~20KHz |
|
Audio Impedance |
600Ω |
|
Audio Voltage Level |
2V rms(5.6Vp-p) |
|
Tuner |
Input impedance |
75Ω |
ANT Loop-Through |
51MHz~858MHz full Band loop through |
|
Input Frequency |
177.5~227.5MHz;474~858MHz; |
|
Input Level Range |
64QAM:-78.5dBm~-8.75dBm; 16QAM:-84.1dBm~-8.75dBm; QPSK:-90.3dBm~-8.75dBm |
|
Environment |
Power input voltage |
AC 100~240V,50Hz/60Hz |
Power Consumption |
Max 12W |
|
Humidity |
<95% |
|
Operation Temperature |
0°C~40°C |
|
| Unit Packing Size | PCS/Carton |
| 270*240*50mm | 20pcs |
| Carton CBM (0.03m3) | QTY per Container |
| 49*45.5*25.5cm | 20GP:9330pcs |
| Box Type | 40GP:18660pcs |
| Color/Neutral | 40HQ:22660pcs |
| Unit Weight | Carton Weight |
| approx.0.7kg | 14kgs |
