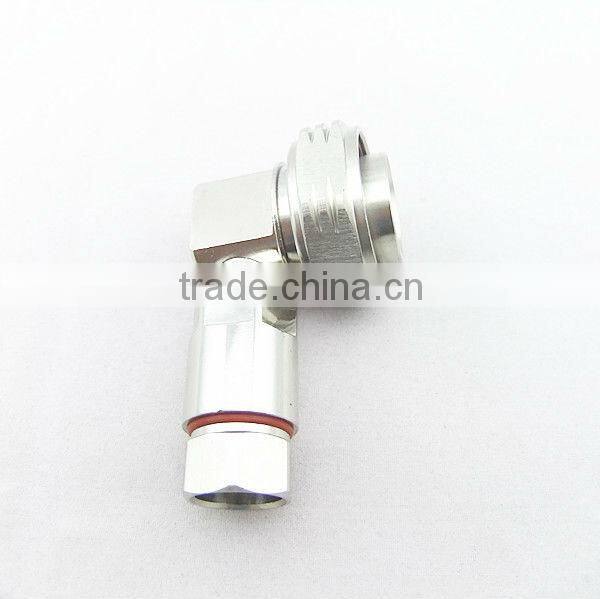

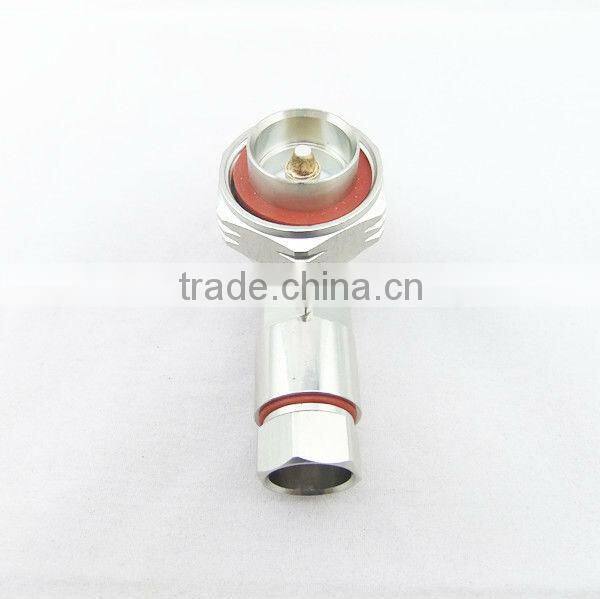

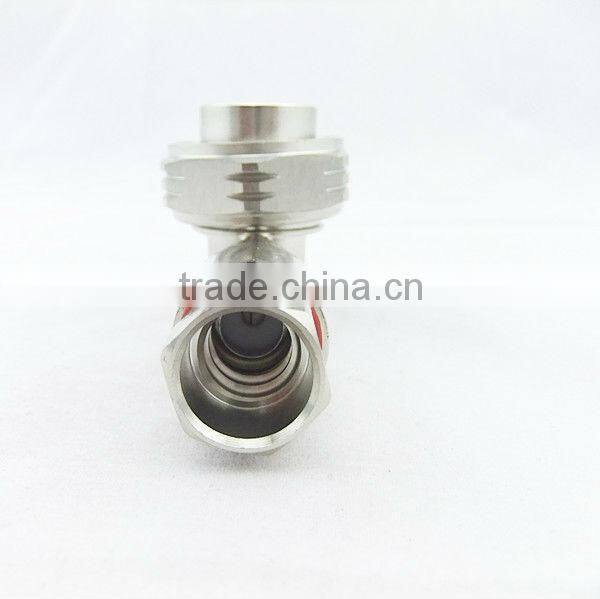

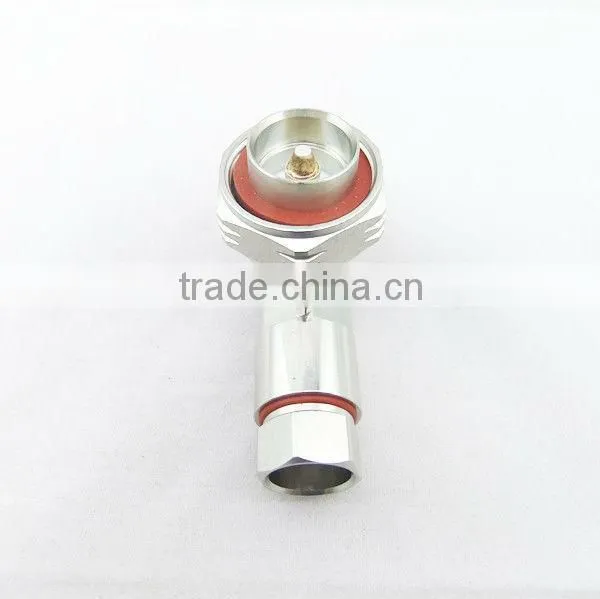

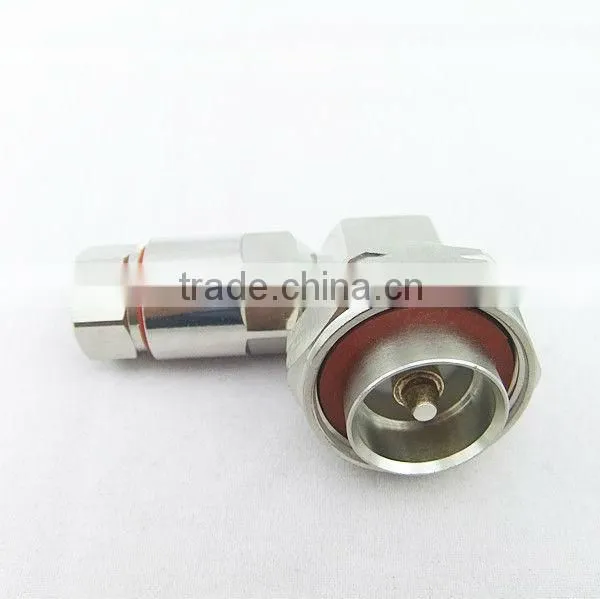

Help CenterRF 7/16 DIN-F CONNECTOR
Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
SETSAIL
Model Number:
YF-CNTR
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RF N-F CONNECTORNegotiableMOQ: 20 Pieces -
Din Male to N Female rf Adapter ConnectorNegotiableMOQ: 50 Pieces
-
N-female to N-female rf AdapterNegotiableMOQ: 50 Pieces
-
N Male to N Male rf Adapter ConnectorNegotiableMOQ: 50 Pieces
-
N-male to N-female Right Angel rf AdapterNegotiableMOQ: 50 Pieces
Place of Origin
Anhui, China
Brand Name
SETSAIL
Model Number
YF-CNTR
Specifications
RF 7/16 DIN-F CONNECTOR,High Quality 7/16 DIN connector,7/16 DIN connector YF-CNTR Details,VSWR:1.15max
Characteristic:50ohm
RF 7/16 DIN-F CONNECTOR,High Quality 7/16 DIN connector,7/16 DIN connector YF-CNTR Details
Technical Specifications for rf din connector
Interface |
According to IEC 60169-16 |
|
|
Electrical
|
Characteristic |
50 ohm |
Frequency Range |
DC-3GHz |
|
VSWR |
1.15 |
|
Dielectric Withstanding Voltage |
2500V RMS,50Hz,at sea level |
|
Dielectric Resistance |
5000Mohm |
|
Contact Resistance |
Center Contact 1.0mohm Outer Contact 0.25mohm |
|
|
Mechanical
|
Durability |
Mating cycles 500 |
|
Material and Plating
|
Body |
Brass Ni or Tri-Alloy |
Insulator |
PTFE |
|
Center Conductor |
Phosphor Au or Ag |
|
Coupling Nut |
Brass Ni |
|
Temperature |
-40°C~+85°C |
|
Note: SETSAIL is capable of manufacturing different kinds connectors according to customers’ detailed requirements.
