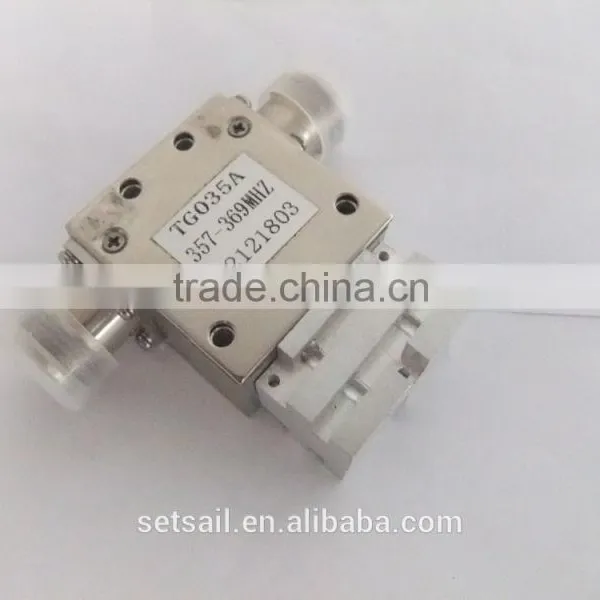

Coaxial Isolators & Circulators
Design Features
Can be dual junction even three for high isolation
High RF Performance, ultra-competitive price
Military, space and commercial applications
Custom design available upon request
Guaranteed one year standard
RF Characteristics
Model |
Freq (MHz) |
Insertion Loss (dB max) |
Isolation(dB) min |
VSWR min |
Forw Power (W) |
Reverse Power(W) |
Connector |
Temp(deg) |
YC-0709-N/S |
700-900 |
0.4 |
18 |
1.3 |
100 |
100 |
SMA-F |
-30~+70 |
YC-0810-N/S |
800-1000 |
0.4 |
20 |
1.25 |
100 |
100 |
N-F |
-30~+70 |
YC-08080N/S |
805-870 |
0.3 |
23 |
1.20 |
200 |
200 |
N-F |
-30~+70 |
YC-0809-N/S |
860-960 |
0.3 |
23 |
1.20 |
100 |
100 |
SMA-F |
-30~+70 |
YC-0912/N/S |
960-1215 |
0.4 |
20 |
1.25 |
200 |
200 |
N-F |
-30~+70 |
YC-1015/N/S |
1000-1500 |
0.6 |
18 |
1.30 |
200 |
200 |
N-F |
-30~+70 |
