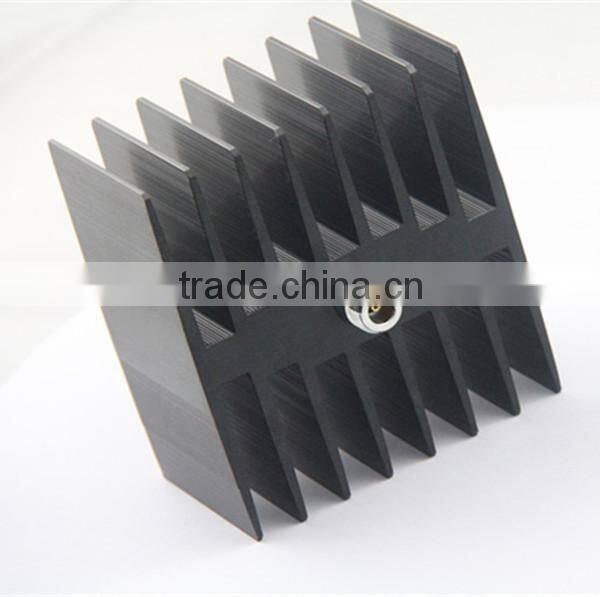

High frequency DC-6GHz 50 W 30 dB Coaxial Attenuator N type
Applications:
Attenuator is typically large voltage signal proportional to certain multiple attenuation, generally refers to power failure less, reaching the desired level of safety or value, to facilitate testing, particularly widely using in the range of RF and Microwave.
1.Mobile Communication Network Optimization and In-door distribution system.
2.Cluster communication, satellite communication,shortwave communication and hopping radio.
3.Radar, electronic navigation and electronic confrontation.
4.Aerospace equipment systems.
Techanical Specifications:
Model |
YA-50W-6G-N |
Average Power (w) |
50 |
Frequency |
DC-6GHz |
VSWR |
≤1.25 |
Attenuation (dB) |
30 |
Accuracy(dB) |
±0.7 |
Impedance(ohm) |
50 |
RF Connector |
N-J to N-K |
Working Temp(deg) |
-55~+125 |
Note:Attenuator can be customized according to the detailed requirements.
Our company has a variety of products to choose.
SETSAIL is capable of manufacturing and providing 1W, 2W, 5W, 10W,25W, 30W, 50W, 100W, 200W RF Coaxial Attenuator.The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G.RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type
Product description:
Product processing:
Each piece in opp bag, each bag in small white inner box, and then the small boxes in standard
exporting carton. the products will be protected very well with paper cardboard and foam.
More hot selling products:
Our service
1. Professional skills support.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
Warranty and return
1. All products accessories have been checked for 3 times before shipping out.
2. All products have one year warranty. If there is no man-made problems,
we will replace or repair for you.
Looking forward to have a wonderful conversation with you !
