Specifications
1.Manufacturer of Attenuator with 8 years2.Power Rating: 30W Attenuator
3.OEM servcice is OK
4.Frequency Range:DC-3GHz
Techanical Specifications of 30W RF Coaxial Attenuator:
Model |
YF-RFCA-30W-N |
Frequency( GHz ) |
DC-3.0GHz |
Impendence(Ohm ) |
50 Ohm |
VSWR |
≤1.20:1 |
Application |
Indoor |
Attenuation( dB ) |
6/10/20/30/40/60dB |
Tolerance( dB ) |
±2.0 |
Interface |
N-male or N-female |
Temperature( °C ) |
-40 ~ + 80 |
IP Grade |
IP60 or IP65 |
Color |
Black |
Average Power ( W ) |
30W |
Weight(kg) |
0.175 |
Note:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose.

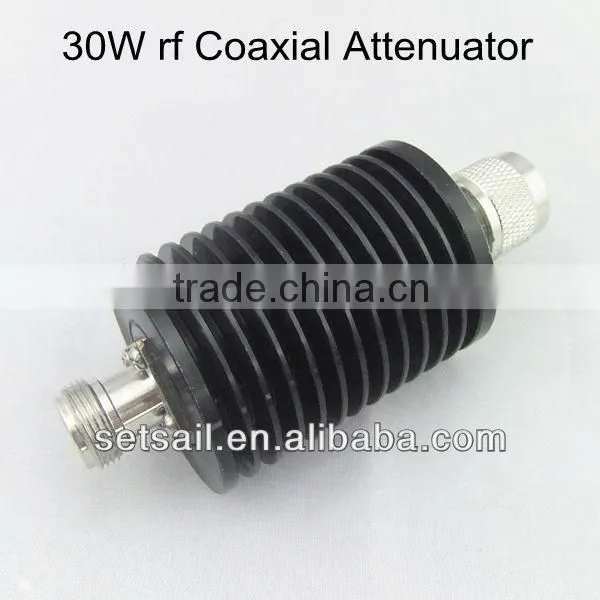

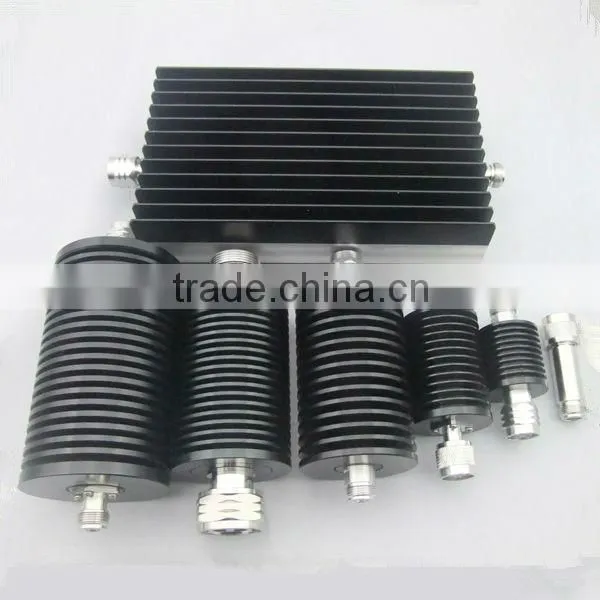

30W Coaixal RF Coaxial Attenuator is just one of SETSAIL's RF Attenuator Products Line. SETSAIL is capable of manufacturing
and providing 1W, 2W, 5W, 10W,25W, 30W, 50W, 100W, 200W RF Coaxial
Attenuator.The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G,DC-20,DC-26G.RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type
Applications:
1.Mobile Communication Network Optimization and In-door distribution system.
2.Cluster communication, satellite communication,shortwave communication and hopping radio.
3.Radar, electronic navigation and electronic confrontation.
4.Aerospace equipment systems.
