Hot Sale Low Consumption Jaw Crusher pe 150x250
Jaw Crusher pe 150x250 Specifications
1. Jaw crusher pe 150x250 is made of high manganese steel, wear-resistant.
2. Jaw crusher 150x250 is convenient to handle, low running expense.
3. Jaw crusher 150x250 has low investment, low noise and less dust.
I. Jaw Crusher pe 150x250 Usage and Application
Jaw Crusher pe 150x250 is a type of jaw crusher. In order to meet small scale crushing requirement, Jaw Crusher pe 150x250 is born with small capacity, small feeding size and small output size. Compared to output size of big jaw crusher, the Jaw Crusher pe 150x250’s is smaller. With the strong application ability and small appearance, Jaw Crusher pe 150x250 is widely used in the laboratory and small production line. Its feathers make itself popular among the crushing machine.
Although it is small, the function is same as large jaw crusher’s. Jaw Crusher pe 150x250 can crush all kinds of rocks with compressive strength less than 320MPa, such as quartz, talc, barite, marble, ceramics, bauxite, manganese ore, iron ore, copper ore, phosphate ore, iron oxide red, zircon sand, mineral slag, grain slag, cement clinker, activated carbon, dolomite, granite, garnet, iron oxide yellow, bean cake, chemical fertilizer, compound fertilizer, fly ash, soft coal, charred coal, lignite, magnesite, chromium oxide green, gold ore, red mud, clay, kaolin, coke, coal gangue, china clay, kyanite, fluorspar, bentonite, maifanite, rhyolite, greenstone, pyrophyllite, purple sand, shale, basalt, gypsum, graphite, carborundum, heat insulating material, etc.
II. Jaw Crusher pe 150x250 Structure and Working Principle
Structure
The Jaw Crusher pe 150x250 is mainly composed of frame, fixed jaw plate,movable jaw plate, left and right guard plates, movable jaw, eccentric shaft,toggle plate, adjustable base, adjustable screw stem, adjustable wedge block, fitting of tension spring and so on.
Working Principle
When Jaw Crusher pe 150x250 works, the belt and belt pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw run up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring, then the end products come out from the crushing cavity.

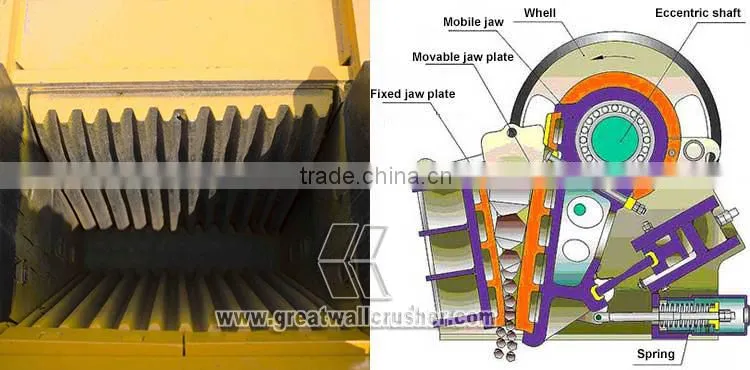

The following left picture show the crushing cavity of jaw crusher.
III. Main Technical Parameters Jaw Crusher pe 150x250
|
Feed Opening Size |
Max. Feeding Size |
Adjustable Range of Discharge Opening |
Capacity |
Motor Power |
Weight |
Overall |
PE250×400 |
250×400 |
200 |
20-50 |
5-20 |
15 |
2.9 |
1430×1310×1340 |
PE400×600 |
400×600 |
350 |
40-100 |
15-60 |
30-37 |
6.8 |
1700×1732×1653 |
PE500×750 |
500×750 |
425 |
50-100 |
40-100 |
45-55 |
11.2 |
2035×1921×2000 |
PE600×900 |
600×900 |
500 |
65-160 |
60-140 |
55-75 |
16.5 |
2290×2206×2370 |
PE750×1060 |
750×1060 |
630 |
80-150 |
90-230 |
90-110 |
29 |
2655×2302×3110 |
PE900×1200 |
900×1200 |
750 |
95-165 |
150-350 |
110-132 |
54.5 |
3789×3050×3025 |
PEX150×250 |
150×250 |
125 |
10-40 |
1-3 |
5.5 |
0.85 |
896×745×935 |
PEX150×750 |
150×750 |
125 |
12-45 |
5-16 |
15 |
3.8 |
1205×1495×1203 |
PEX250×750 |
250×750 |
210 |
25-60 |
10-40 |
22-30 |
5 |
1667×1545×1020 |
PEX250×1000 |
250×1000 |
210 |
25-60 |
15-50 |
30-37 |
6.8 |
1964×1550×1380 |
PEX400×1200 |
400×1200 |
320 |
35-95 |
28-95 |
45-55 |
11.7 |
2256×2100×1960 |
JC180×1300 |
180×1300 |
150 |
10-30 |
12-40 |
30-37 |
6 |
1320×2150×1175 |
JC250×1000 |
250×1000 |
220 |
20-40 |
15-55 |
30-37 |
5.6 |
1400×1850×1310 |
JC250×1300 |
250×1300 |
220 |
20-40 |
20-65 |
37-45 |
6.8 |
1450×2150×1310 |
JC400×600 |
400×600 |
350 |
35-85 |
15-80 |
30-37 |
10 |
1920×1460×1840 |

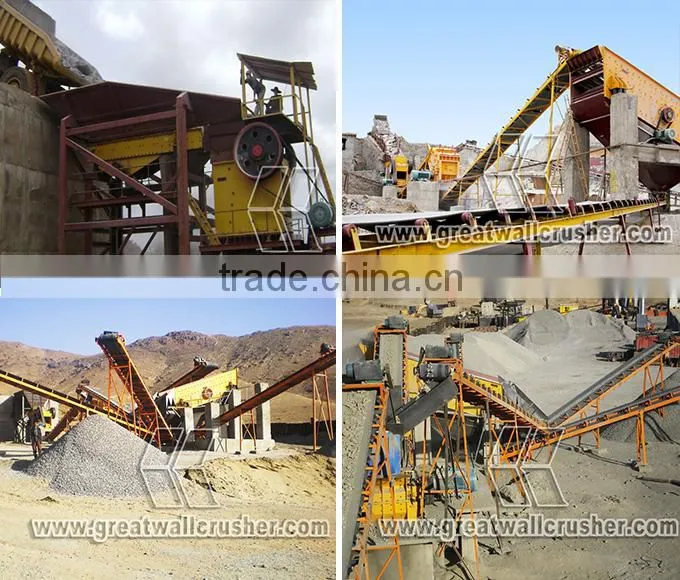

The following picture has shown a whole production line. The whole product line includes vibrating feeder, jaw crusher, impact crusher, vibrating screen and belt conveyors. The raw material is fed into jaw crusher through vibratong feeder for primary crusher, then is transported to impact crusher for fine crushing, then the material is transported fo vibrating screen to be separated into different sizes. The bottom right picture is another complex whole production line.
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
All the products of Great Wall have approved the ISO CE certificate.
With more than twenty years' history, Zhengzhou Great Wall Heavy Industry Machinery Co.,Ltd. is a manufacture which specialized in R&D, manufacturing and selling big and middle size heavy industry machinery.
"Persons of ability guarantee the quality". Our company takes in persons of ability and gives training to the staffs annually to their quality and skill to meet the development of the company.With the right of importing and exporting, the company owns an international trading department which is specialized in sales and exports, we provide the best service to the foreign clients.
During the past years, we stick to "honest, truth-seeking, innovation and hard working". To keep "Great Wall" brand, we will improve ourselves and try our best to make perfect products and the best service.
Welcome to our production plant for having a look.
