"Great Wall Make Great Machine"
Different Colors&Packages are avaialble

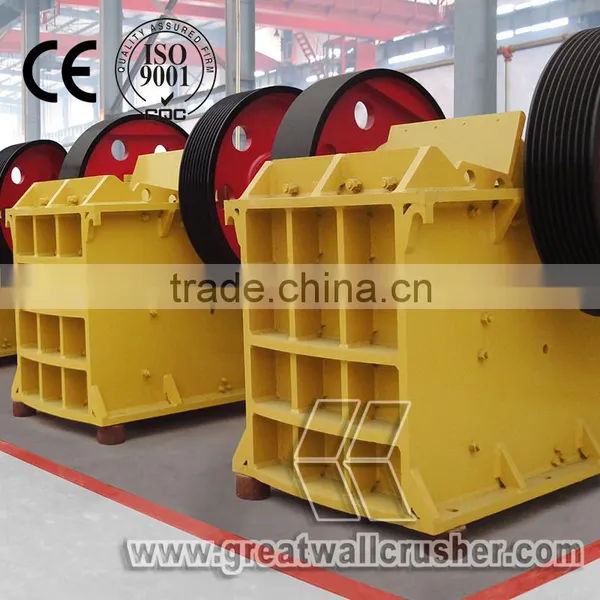

CE ISO Certifiacted Small Stone Crusher
Specifications
Small stone crusher -- Jaw Crusher
1.Small capacity but Conveninet and Poratble
2.High Steel Manganese structure and abrasion resistant
3.Long service life
4.Carefully design and elaborate to ensure a satisfied experience
I. Small Stone Crusher Usage and Application
Small Stone Crusher is widely used in the industry of mining, building materials, chemical industry, metallurgy and fodder. It can crush materials with middle or less than middle hardness into secondary of fine granularity. Such as, barite, limestone, terrazzo, silica sandstone, coal, coke, gypsum, aluminum sulfate, slag, etc.
II. Small Stone Crusher Structure and Working Principle
Structure
Small stone crusher includes two main types: small jaw crusher and small hammer crusher. The structure and working principle of small stone crusher are taken example of small jaw crusher.
The small jaw crusher is mainly composed of frame, fixed jaw plate,movable jaw plate, left and right guard plates, movable jaw, eccentric shaft,toggle plate, adjustable base, adjustable screw stem, adjustable wedge block, fitting of tension spring and so on.
Working Principle
The electric motor drives the rotor and the rotor moves, making the hammer rotate in high speed. The materials are crushed in the crusher by the rotated hammer. The end products come out via the strips of the screen under the machine. The size of the granularity can be adjusted by changing the gap among the screen strips. The advantages of the machine are simple in operating, high in productivity, and very low investment cost.
III. Small Stone Crusher Main Specifications
Model |
Feed Opening Size |
Max. Feeding Size |
Adjustable Range of Output Size |
Capacity |
Motor Power |
Weight |
Overall |
PE250×400 |
250×400 |
200 |
20-50 |
5-20 |
15 |
2.9 |
1430×1310×1340 |
PE400×600 |
400×600 |
350 |
40-100 |
15-60 |
30-37 |
6.8 |
1700×1732×1653 |
PE500×750 |
500×750 |
425 |
50-100 |
40-100 |
45-55 |
11.2 |
2035×1921×2000 |
PE600×900 |
600×900 |
480 |
65-160 |
60-140 |
55-75 |
16.5 |
2290×2206×2370 |
PE750×1060 |
750×1060 |
630 |
80-150 |
80-230 |
90-110 |
29 |
2655×2302×3110 |
PE900×1200 |
900×1200 |
750 |
95-165 |
140-320 |
110-132 |
54.5 |
3789×3050×3025 |
PE1000×1200 |
1000×1200 |
850 |
105-185 |
180-400 |
160-200 |
56.5 |
3900×3320×3280 |
PE1200×1500 |
1200×1500 |
1020 |
150-300 |
250-650 |
220-250 |
99.6 |
4300×3540×4043 |
PEX150×250 |
150×250 |
125 |
10-40 |
1-3 |
5.5 |
0.85 |
896×745×935 |
PEX150×750 |
150×750 |
125 |
12-45 |
5-16 |
15 |
3.8 |
1205×1495×1203 |
PEX250×750 |
250×750 |
210 |
25-60 |
10-40 |
22-30 |
5 |
1667×1545×1020 |
PEX250×1000 |
250×1000 |
210 |
25-60 |
15-50 |
30-37 |
6.8 |
1964×1550×1380 |
PEX250×1200 |
250×1200 |
210 |
25-60 |
20-60 |
37-45 |
8.5 |
2192×1605×1415 |
PEX400×1200 |
400×1200 |
320 |
35-95 |
28-95 |
45-55 |
11.7 |
2256×2100×1960 |
Small hammer crusher main specifications
Model |
Max. Feeding |
Output |
Capacity |
Motor Power |
Weight |
PC400×300 |
100 |
<15 |
3-10 |
11 |
0.86 |
PC600×400 |
120 |
<15 |
8-15 |
22 |
1.55 |
PC800×600 |
150 |
<20 |
10-40 |
55 |
4.8 |
PC1000×800 |
200 |
<30 |
16-65 |
110 |
8.1 |
PC1300×1200 |
280 |
<40 |
50-200 |
240 |
14.8 |
PC1600×1600 |
350 |
<50 |
100-350 |
480 |
37.5 |
The following picture has shown a whole production line. The whole product line includes vibrating feeder, jaw crusher, impact crusher, vibrating screen and belt conveyors. The raw material is fed into jaw crusher through vibratong feeder for primary crusher, then is transported to impact crusher for fine crushing, then the material is transported fo vibrating screen to be separated into different sizes. The bottom right picture is another complex whole production line.
All the products of Great Wall Heavy Industry Company have approved ISO CE certificate.
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
Recommend procduct
diesel engine crusher cone crusher impact crusher mobile crusher plant
With more than twenty years' history, Zhengzhou Great Wall Heavy Industry Machinery Co.,Ltd. is a manufacture which specialized in R&D, manufacturing and selling big and middle size heavy industry machinery. Since establishment, we make a good image in the market with scientific management, qualified products and perfect service.
Our main products are crushers, grinding mills, other equipments for crushing plant and grinding plant, as well as building construction equipments. They are widely used in mining, building material, metallurgy, chemical, traffic, reservoir and so on. Our products are not only sold well in more than twenty provinces and cities in China, but also in tens of countries and regions in Eastern Europe, Middle East, Asia, Africa, North America, South America, and Oceania.
Now we have domestic top ranking production equipments and precise testing instrument, each process of products is strictly inspected to guarantee the products to achieving high ex-factory standard. Besides, we cooperate with many famous universities and scientific research institutions, so that can make technical warrantee for the products in it's developing, updating and improving.
"Persons of ability guarantee the quality". Our company takes in persons of ability and gives training to the staffs annually to their quality and skill to meet the development of the company.With the right of importing and exporting, the company owns an international trading department which is specialized in sales and exports, we provide the best service to the foreign clients.
During the past years, we stick to "Honest, truth-seeking, innovation and hard working". To keep "Great Wall" brand, we will improve ourselves and try our best to make perfect products and the best service.
1.Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing th e most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;
1. We are Manufacturer (Not Dealer):
All machineries from Great Wall Heavy Industry Machinery CO., LTD are made by ourselves, with good quality, Competitive price and assured full after service.
2. If you are new for this business:
We can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us this information about your requirement in your enquiry:
1. What is the raw material to be processed? And maximum feeding size of raw material?
2. What is the required output size after crushing?
3. How many tons per hour do you want?
Do not hesitate send us inquiry for more details about the CE ISO Certifiacted Small Stone Crusher.
