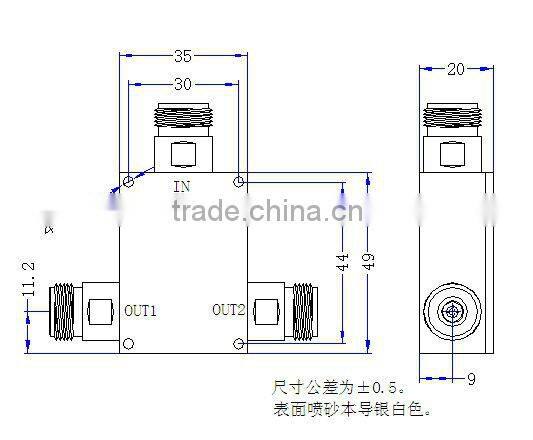

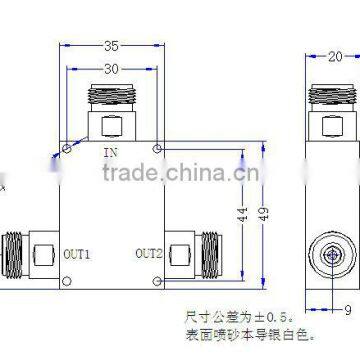

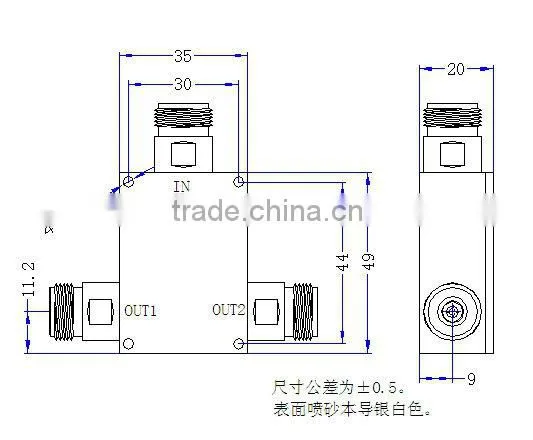

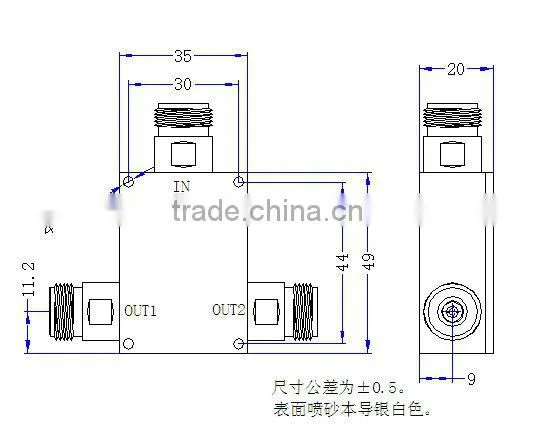

Help Center2-6G, 2 Way Micro-strip RF Power Splitter/Divider
Related Products
-
2-6G, 3 Way Micro-strip RF Power Divider/SplitterNegotiableMOQ: 1 Piece -
2-6G, 4 Way Micro-strip RF Power Splitter/DividerNegotiableMOQ: 1 Piece
-
700-2700MHz, N-female, 2 Way RF SplitterUS$ 1 - 50MOQ: 5 Pieces
-
700-2700MHz, N-female, 3 Way RF Power SplitterUS$ 1 - 50MOQ: 1 Piece
-
700-2700MHz, N-female, 4 Way RF Power DividerUS$ 1 - 50MOQ: 1 Piece
Specifications
1. We are Manufacturer of RF Power Splitter2. OEM Service is ok
3. 20pcs in stock
4. ISO9001:2008
5. Competive Prices.
Applications: 2-6G, 2-way Micro-strip RF Power Splitter/Divider (2000-6000MHz)
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
Technical Specifications
Model |
YF-MS-0206-02-WF |
YF-MS-0206-03-WF |
YF-MS-0206-04-WF |
Frequency(MHz) |
2000-6000 (2-6G) |
||
Insertion loss(dB) |
0.8 |
1.7 |
1.5 |
Isolation |
18 |
||
VSWR |
1.50:1 |
||
Power Capacity (W) |
10 |
||
| Color | Black |
||
Impedance(ohm) |
50 |
||
Temperature(deg) |
-35 deg to +60 deg |
||
RF connector |
N-female |
||
Relative Humidity |
5%-95% |
||
| Weight | 0.30kg | 0.40kg | 0.50kg |
| Application | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor |
