Specifications
1. We are Manufacturer of RF Power Splitter2. OEM Service is available
3. 500pcs in stock
4. Power Splitter with Best Price
Applications:

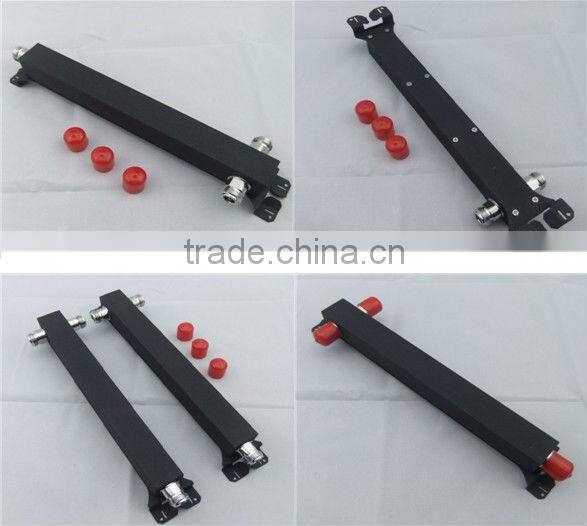

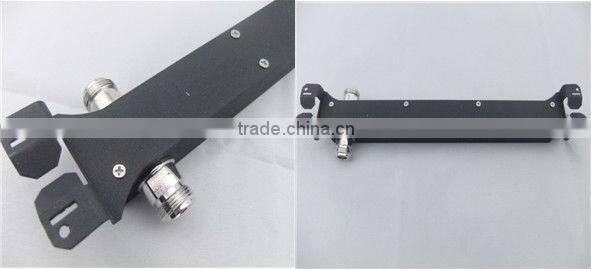

2-way Multiband Power Splitter with wall mounting bracket, 200W, N-female
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems
800-2700MHz Multiband Power Splitter (N-female Connector, 200W, PIM3=-140dBc)
Technical Specification:
Model |
YF-PS-0827-02-N-W |
YF-PS-0827-03-N-W |
YF-PS-0827-04-N-W |
||
Frequency(MHz) |
800-2700 |
||||
Insertion loss(dB) |
3.3 |
5.4 |
6.5 |
||
| Color | Black-plated |
||||
VSWR |
1.30:1 |
||||
Power Capacity (W) |
200 |
||||
3rd order PIM |
-140dBc@2×43dBm |
||||
Impedance(ohm) |
50 |
||||
Temperature(deg) |
-35 deg to +60 deg |
||||
RF connector |
N-female |
||||
Relative Humidity |
5%-95% |
||||
Size(mm) |
2210.1×60.4×20 |
223.4×60.4×18 |
223.4×60.4×18 |
||
Wight(kg) |
0.25 |
0.35 |
0.45 |
||
Related Products:
7/16 DIN-female Multiband Power Splitter
(800-2500/2700MHz, 698-2700MHz)
