Specifications
Jaw Crusher PEX400*1200Simple structure
Easy operation
High crushing ratio
Low investment & high reliability
I. Jaw Crusher PEX400*1200 Usage and Application
It is very common in the field of Mining and quarry. This kind of stone crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. Jaw crushers suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.
II. Jaw Crusher PEX400*1200 Advantages
1. Simple structure, convenient maintenance;
2. High crushing ratio, even output granularity;
3. High reliability, low investment;
4. Low noise, less dust.

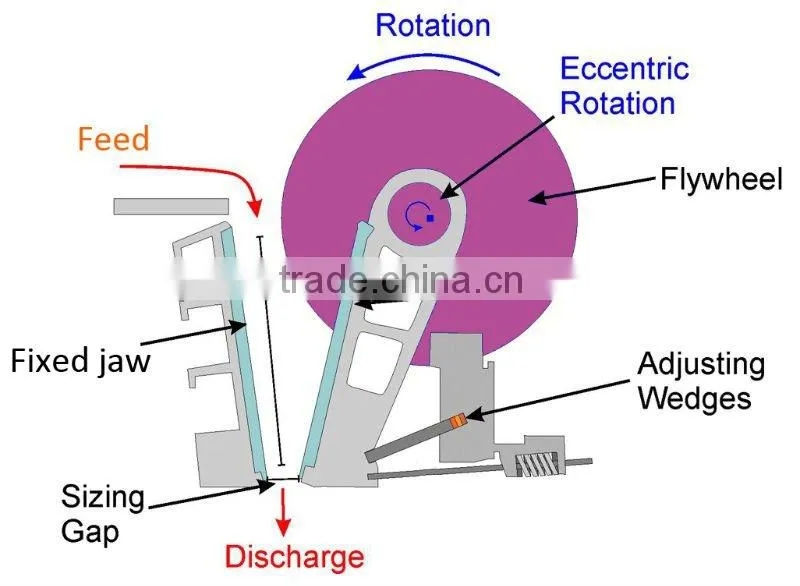

III. Jaw Crusher Working Principle
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
III. Main Specification
Model |
Feed Opening Size |
Max. Feeding Size |
Adjustable Range of Output Size |
Capacity |
Motor Power |
Weight |
Overall |
PE250×400 |
250×400 |
200 |
20-50 |
5-20 |
15 |
2.9 |
1430×1310×1340 |
PE400×600 |
400×600 |
350 |
40-100 |
15-60 |
30-37 |
6.8 |
1700×1732×1653 |
PE500×750 |
500×750 |
425 |
50-100 |
40-100 |
45-55 |
11.2 |
2035×1921×2000 |
PE600×900 |
600×900 |
480 |
65-160 |
60-140 |
55-75 |
16.5 |
2290×2206×2370 |
PE750×1060 |
750×1060 |
630 |
80-150 |
80-230 |
90-110 |
29 |
2655×2302×3110 |
PE900×1200 |
900×1200 |
750 |
95-165 |
140-320 |
110-132 |
54.5 |
3789×3050×3025 |
PE1000×1200 |
1000×1200 |
850 |
105-185 |
180-400 |
160-200 |
56.5 |
3900×3320×3280 |
PE1200×1500 |
1200×1500 |
1020 |
150-300 |
250-650 |
220-250 |
99.6 |
4300×3540×4043 |
PEX150×250 |
150×250 |
125 |
10-40 |
1-3 |
5.5 |
0.85 |
896×745×935 |
PEX150×750 |
150×750 |
125 |
12-45 |
5-16 |
15 |
3.8 |
1205×1495×1203 |
PEX250×750 |
250×750 |
210 |
25-60 |
10-40 |
22-30 |
5 |
1667×1545×1020 |
PEX250×1000 |
250×1000 |
210 |
25-60 |
15-50 |
30-37 |
6.8 |
1964×1550×1380 |
PEX250×1200 |
250×1200 |
210 |
25-60 |
20-60 |
37-45 |
8.5 |
2192×1605×1415 |
PEX400×1200 |
400×1200 |
320 |
35-95 |
28-95 |
45-55 |
11.7 |
2256×2100×1960 |
