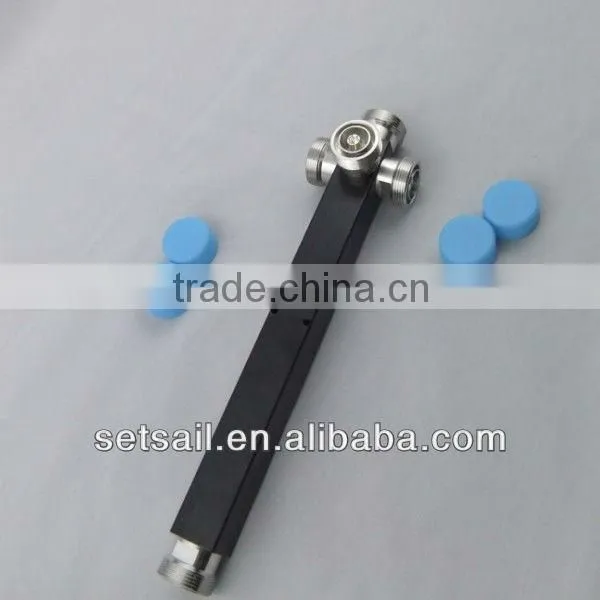

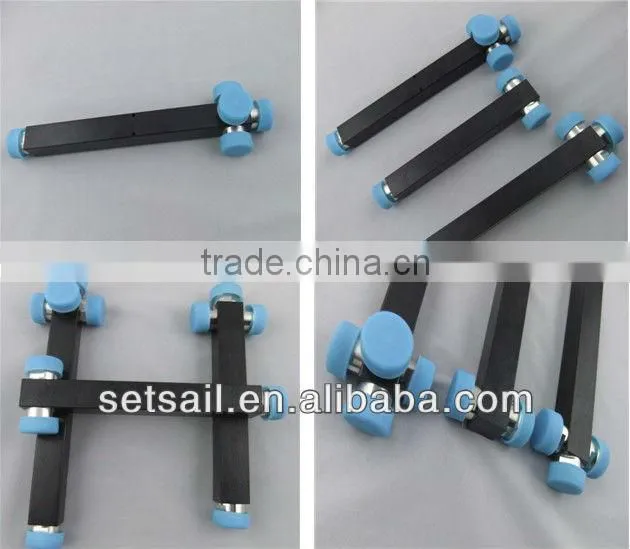

Help Center4-way 700-2700MHz RF DIN Power Splitter (Cavity-type)
Related Products
-
800-2500MHz 2-way DIN RF Power Splitter (Cavity-type)NegotiableMOQ: 5 Pieces -
800-2500MHz 3-way RF DIN Power Splitters(Cavity-type)NegotiableMOQ: 5 Pieces
-
800-2700MHz 3-way RF DIN Power Splitters(Cavity-type)NegotiableMOQ: 5 Pieces
-
800-2700MHz 2-way RF DIN Power Splitters(Cavity-type)NegotiableMOQ: 5 Pieces
-
800-2700MHz 4-way RF DIN Power Splitters(Cavity-type)NegotiableMOQ: 5 Pieces
Specifications
1. We are Manufacturer of RF Power Splitter2. OEM Service is available
3. 200pcs in stock
4. Power Splitter with Best Price
Applications:
Power Splitter: 700-2700MHz, DIN-female, 500W, 4-way, Cavity-type
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems
700-2700MHz Cavity Power Splitters (DIN-female Connector, 500W, PIM3=-150dBc)
Technical Specification:
Model |
YF-PS-0727-02-DIN |
YF-PS-0727-03-DIN |
YF-PS-0727-04-DIN |
||
Frequency(MHz) |
700-2700 |
||||
Insertion loss(dB) |
3.3 |
5.4 |
6.5 |
||
| Color | Black-plated |
||||
VSWR |
1.30:1 |
||||
Power Capacity (W) |
500 |
||||
3rd order PIM |
-150dBc@2×43dBm |
||||
Impedance(ohm) |
50 |
||||
Temperature(deg) |
-35 deg to +60 deg |
||||
RF connector |
DIN-female |
||||
Relative Humidity |
5%-95% |
||||
Size(mm) |
2210.1×60.4×20 |
223.4×60.4×18 |
223.4×60.4×18 |
||
Wight(kg) |
0.17 |
0.21 |
0.235 |
||
Power Splitter:
