Specifications
1.Manufacturer of power splitter wilkinson 2Way SMA-F2.Low insertion loss power splitter
3.2 years gaurantee
4.ZTE supplie
Power dividers are used in a wide variety of applications and can satisfy almost any requirement where a signal needs to be distributed or combined. SETSAIL’s compact, microstrip divider/combiners provide minimal insertion loss while delivering high isolation between output ports with exceptional phase and amplitude balance.

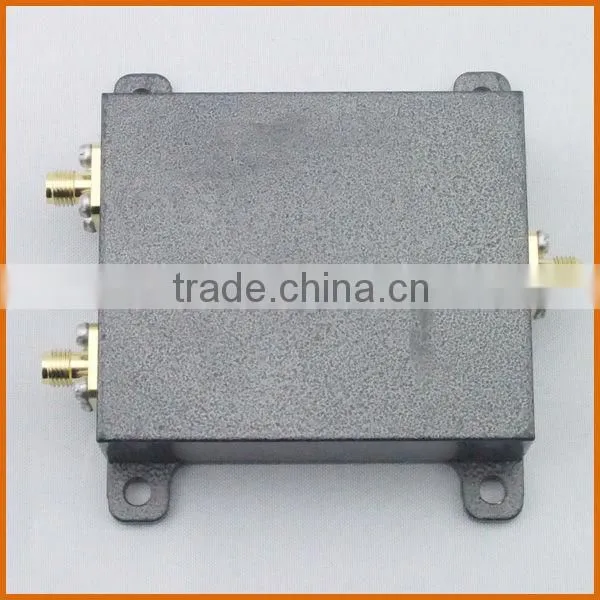

power splitter wilkson 2way, SMA-F
Product Name |
50W, 2 way wilkinson SMA-Female Power Dividers/splitters |
||
Model |
YFTX-MPS-0825-02SF |
YFTX-MPS-0825-03SF |
YFTX-MPS-0825-04SF |
Frequency(MHz) |
0.8-2.5GHz/0.7-2.7GHz/0.35-0.52GHz /0.35-1GHz |
||
Insertion Loss(dB) |
<=3.4 |
<=5.5 |
<=6.5 |
Isolation(dB) |
>=20 |
||
VSWR |
<=1.30:1 |
||
Power Capacity(W) |
50 |
||
Impedance(ohm) |
50 |
||
RF Connector |
SMA-female |
||
Application |
Indoor |
||
Operating Temperature(deg) |
-35~+60 |
||
Color |
Black-plated |
||
Relative Humidity |
5%-95% |
||
Power splitter/dividers Applications:
1.Mobile Communication Network Optimization and In-door distribution system
2.Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio
3. Radar, Electronic Navigation and Electronic Confrontation
4. Aerospace Equipment systems
