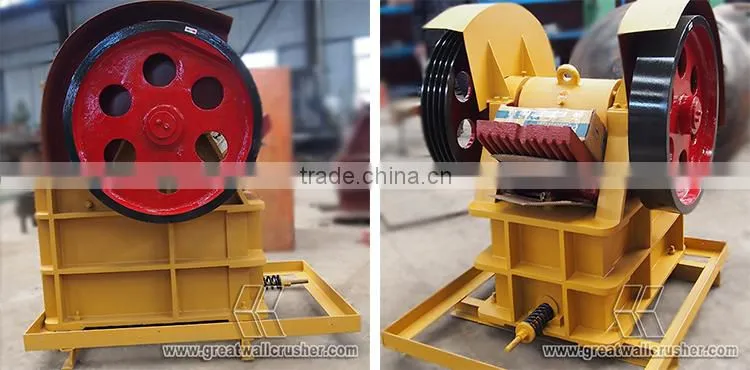

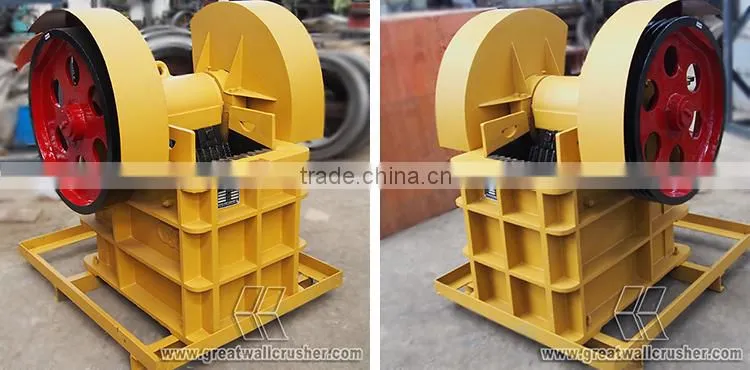

High Manganese Steel Lab Jaw Crusher
I. High Manganese Steel Lab Jaw Crusher Introduce
From the name of High Manganese Steel Lab Jaw Crusher, we can see the lab jaw crusher is made of high manganese steel. The high manganese steel material has the feathers of high abrasion resistance, high intensity and high tenacity. The high manganese steel itself is rigid to resist the impact force and stay perfect. Moreover, due to the high tenacity, it can resist strong impact load, and feather with more reliability and safety compared to other materials. So high manganese steel lab jaw crusher is more abrasion resistance. The quick wear part can service longer times.
II. High Manganese Steel Lab Jaw Crusher Usage and Application
Lab Jaw crusher is widely applied in laboratory to crush high hardness, mid hardness ,and soft rocks and ores such as ore, quartz, granite,limestone,slags,construction materials, marble, etc. The maximum compression strength of materials to be crushed is 320MPA. Lab jaw crusher can examine the crushing progress, or forms a part of experiment.
III. High Manganese Steel Lab Jaw Crusher Structure and Working Principle
Structure
The lab jaw crusher is mainly composed of frame, fixed jaw plate,movable jaw plate, left and right guard plates, movable jaw, eccentric shaft,toggle plate, adjustable base, adjustable screw stem, adjustable wedge block, fitting of tension spring and so on.
Working Principle
When the lab jaw crusher works, the belt and belt pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring, then the end products come out from the crushing cavity.
IV. High Manganese Steel Lab Jaw Crusher Main Specifications
Model |
Feed Opening Size |
Max. Feeding Size |
Adjustable Range of Output Size |
Capacity |
Motor Power |
Weight |
Overall |
PE250×400 |
250×400 |
200 |
20-50 |
5-20 |
15 |
2.9 |
1430×1310×1340 |
PE400×600 |
400×600 |
350 |
40-100 |
15-60 |
30-37 |
6.8 |
1700×1732×1653 |
PE500×750 |
500×750 |
425 |
50-100 |
40-100 |
45-55 |
11.2 |
2035×1921×2000 |
PE600×900 |
600×900 |
480 |
65-160 |
60-140 |
55-75 |
16.5 |
2290×2206×2370 |
PE750×1060 |
750×1060 |
630 |
80-150 |
80-230 |
90-110 |
29 |
2655×2302×3110 |
PE900×1200 |
900×1200 |
750 |
95-165 |
140-320 |
110-132 |
54.5 |
3789×3050×3025 |
PE1000×1200 |
1000×1200 |
850 |
105-185 |
180-400 |
160-200 |
56.5 |
3900×3320×3280 |
PE1200×1500 |
1200×1500 |
1020 |
150-300 |
250-650 |
220-250 |
99.6 |
4300×3540×4043 |
PEX150×250 |
150×250 |
125 |
10-40 |
1-3 |
5.5 |
0.85 |
896×745×935 |
PEX150×750 |
150×750 |
125 |
12-45 |
5-16 |
15 |
3.8 |
1205×1495×1203 |
PEX250×750 |
250×750 |
210 |
25-60 |
10-40 |
22-30 |
5 |
1667×1545×1020 |
PEX250×1000 |
250×1000 |
210 |
25-60 |
15-50 |
30-37 |
6.8 |
1964×1550×1380 |
PEX250×1200 |
250×1200 |
210 |
25-60 |
20-60 |
37-45 |
8.5 |
2192×1605×1415 |
PEX400×1200 |
400×1200 |
320 |
35-95 |
28-95 |
45-55 |
11.7 |
2256×2100×1960 |
The lab jaw crusher is fixed tightly when it is sent to the port by professionale truck. Before shipped, it is covered by waterproof material to avoid moisture and rough handling.
Recommend procduct
diesel engine crusher cone crusher impact crusher mobile crusher plant
All product of Great Wall Heavy Industry Machinery have approved ISO CE certificate.
With more than twenty years' history, Zhengzhou Great Wall Heavy Industry Machinery Co.,Ltd. is a manufacture which specialized in R&D, manufacturing and selling big and middle size heavy industry machinery.
"Persons of ability guarantee the quality". Our company takes in persons of ability and gives training to the staffs annually to their quality and skill to meet the development of the company.With the right of importing and exporting, the company owns an international trading department which is specialized in sales and exports, we provide the best service to the foreign clients.
During the past years, we stick to "Honest, truth-seeking, innovation and hard working". To keep "Great Wall" brand, we will improve ourselves and try our best to make perfect products and the best service.
1.Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing th e most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;
1. We are Manufacturer (Not Dealer):
All machineries from Great Wall Heavy Industry Machinery CO., LTD are made by ourselves, with good quality, Competitive price and assured full after service.
2. If you are new for this business:
We can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us this information about your requirement in your enquiry:
1. What is the raw material to be processed? And maximum feeding size of raw material?
2. What is the required output size after crushing?
3. How many tons per hour do you want?
Do not hesitate send us inquiry for more details about the lab jaw crusher.
