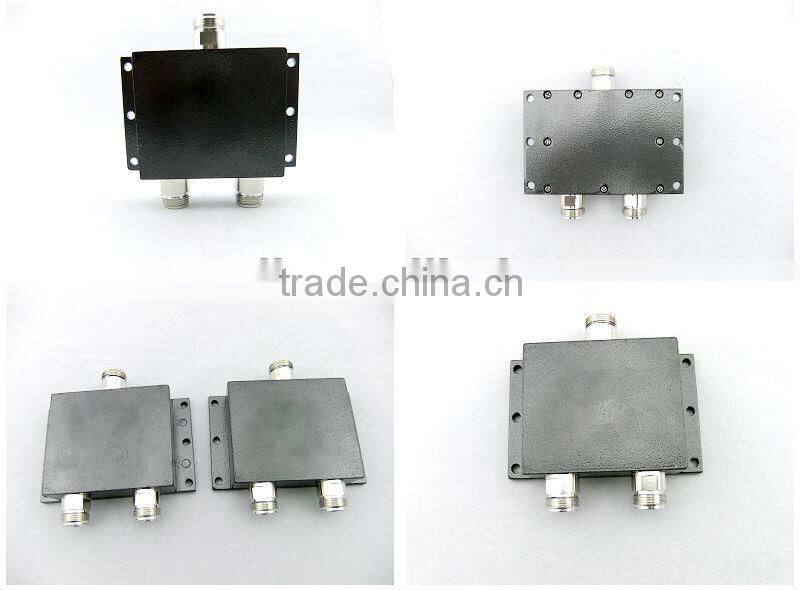

Help CenterN-Connector Micro Strip 2 Way RF Power Splitter/Divider(700-2500MHz)
Related Products
-
890-915Mhz 2 Way Micro Strip RF Power Splitter/DividerNegotiableMOQ: 1 Piece -
890-915Mhz 4 Way Micro-Strip RF Power Splitter/DividerNegotiableMOQ: 1 Piece
-
N-Female Micro-Strip 3 Way RF Power Splitter/divider(0.8-2.5GHz)NegotiableMOQ: 1 Piece
-
N-male Micro-Strip 3 Way RF Power Splitter/divider(0.8-2.5GHz)NegotiableMOQ: 1 Piece
-
N Type 2 Way Micro Strip RF Power Splitter/Divider(0.7-2.5GHz)NegotiableMOQ: 1 Piece
Specifications
1.Low Insertion loss for RF Power Splitter2.RF Power Splitter good VSWR
3.OEM of RF Power Splitter is ok.
700-2500MHz 2 way Micro-strip RF Power Splitter/Divider
Technical Specifications:
700-2500MHz Micro-strip Power Splitter/Divider
Model |
YFTX-MPS-0725-02NF |
YFTX-MPS-0725-03NF |
YFTX-MPS-0725-04NF |
Frequency(MHz) |
700-2500MHz |
||
Insertion Loss(dB) |
3.4 |
5.5 |
6.5 |
Isolation(dB) |
20 |
||
VSWR |
1.30 |
||
Power Capacity(W) |
50 |
||
Impedance(ohm) |
50 |
||
RF Connector |
N-female |
||
Application |
Indoor |
||
Operating Temperature(deg) |
-35~+60 |
||
Color |
Black-plated |
||
Relative Humidity |
5%-95% |
||
Send Inquiry to This Supplier
