Help Center700-2400MHz, SMA-female,4 Way Power Splitter(Micro Strip)
Related Products
-
Slivery-white 2-way RF Cavity Power Splitter(800-2500,800-2700,698-2700MHz)NegotiableMOQ: 100 Pieces -
Slivery-white 3-way RF Power Splitters(800-2500,800-2700,698-2700MHz)NegotiableMOQ: 100 Pieces
-
Slivery-white Color 4-way RF Power Splitters/Dividers(800-2500,800-2700,698-2700MHz)NegotiableMOQ: 100 Pieces
-
700-2700MHz RF 3-way Cavity Power SplitterNegotiableMOQ: 100 Pieces
-
800-2500MHz RF 4-way Power SplitterNegotiableMOQ: 10 Pieces
Specifications
1.Wide Frequency Range.2.Low insertion loss .
3.Low VSWR.
4.We are the manufacturer.
5. OEM service can be provided.
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems
Technical Specifications: 700-2400MHz SMA, 4-way Micro-strip Power Splitter/Divider
Model |
YFTX-MSPS-7024-4WAY-SMA |
Products Name |
700-2400MHz, SMA(F), 4-way Power Splitter |
Insertion Loss(dB) |
6.5 |
Frequency(MHz) |
700-2400 |
0Isolation(dB) |
20 |
VSWR |
1.30:1 |
Power Capacity(W) |
50 |
Impedance(ohm) |
50 |
RF Connector |
SMA-female |
Operating Temperature(deg) |
-35~+60 |
Color |
Black |
Relative Humidity |
5%-95% |

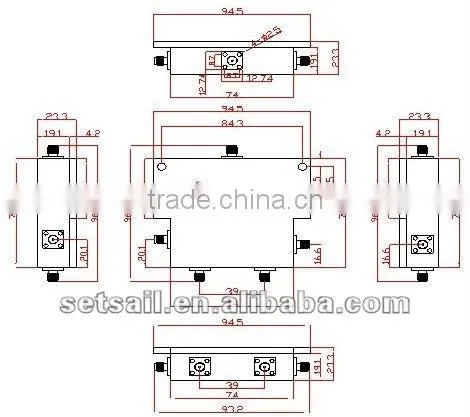

Outline Drawing
Send Inquiry to This Supplier
