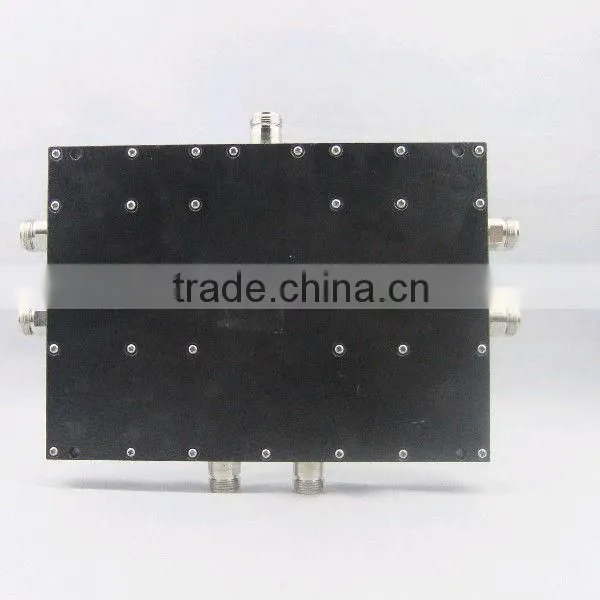

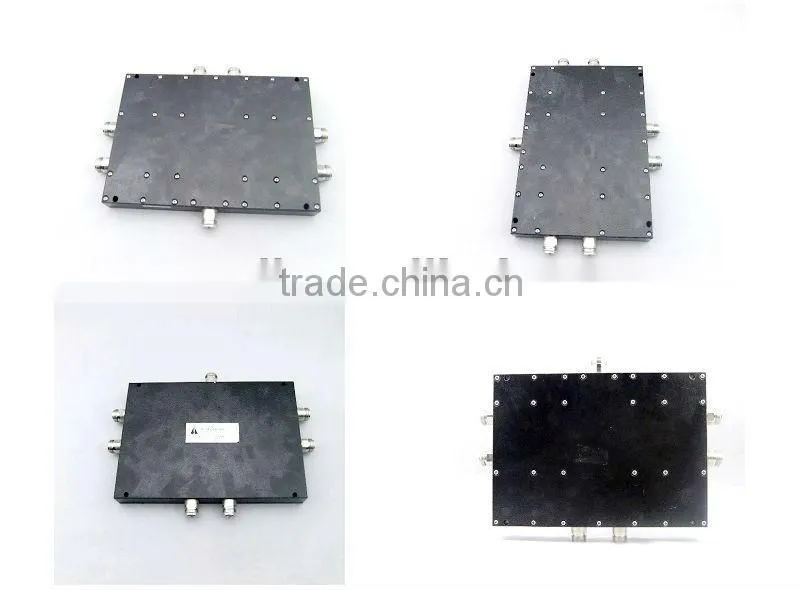

Help Center6 Ways rf Micro-strip Power Splitter( 800-2500MHz)
Related Products
-
RF 8-ways 350-1000Mhz Power SplitterNegotiableMOQ: 2 Pieces -
RF 8-ways 670-2700MHz Micro-strip Power SplitterNegotiableMOQ: 1 Piece
-
150-230MHz 50W Micro-strip UHF/VHF Low Power Splitter(Wireless Communications Used)NegotiableMOQ: 10 Pieces
-
890-915MHz, 2-way, SMA RF Power Splitters/DividersNegotiableMOQ: 1 Piece
-
890-915MHz, 4-way, Micro Strip RF Power Splitters/DividersNegotiableMOQ: 50 Pieces
Specifications
1.Low insertion loss2.Wide Frequency Range rf power splitter
3.Low VSWR of 6 way splitter
4.We are the manufacture
Applications:
1. RF power splitter in Mobile Communication Network Optimization and In-door distribution system.
2.RF power splitter in Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation need rf power splitter
4. Aerospace equipment systems need rf power splitter
Technical Specifications
800-2500MHz Micro-strip Power Splitter/Divider
Model |
YFTX-MSPD-8025-06N |
Frequency(MHz) |
800-2500 |
Insertion Loss(dB) |
8.8 |
Isolation(dB) |
20 |
VSWR |
1.30:1 |
Power Rating(W) |
50 |
Impedance(ohm) |
50 |
Temperature(deg) |
-35 ~ +60 |
RF Connector |
N-type or SMA-type |
Relative Humidity |
5%-95% |
Color |
Black-plated |
Size(mm) |
203.4*158.4*23 |
Note: All Technical Specifications can be changed according to customers' detailed requirements.
