Home > Products > Indoor Antenna > RF Indoor Omni Antenna N-F 50W

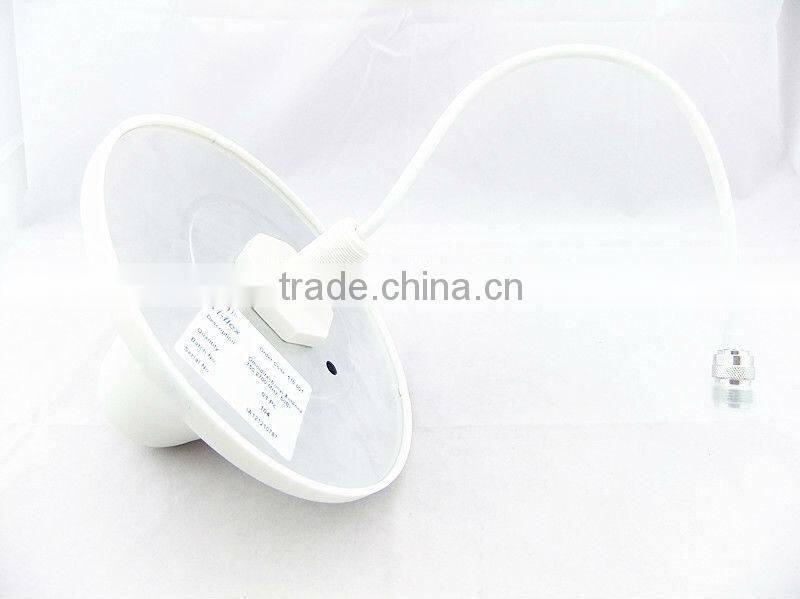

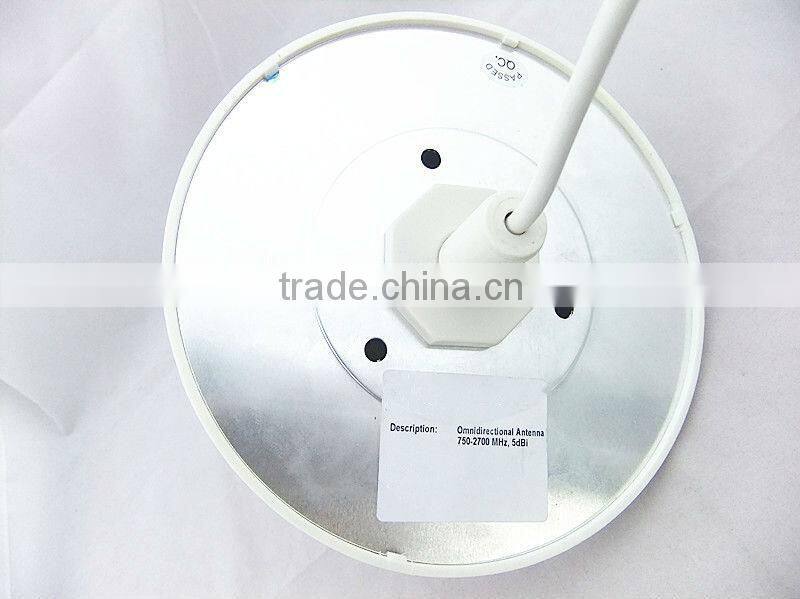

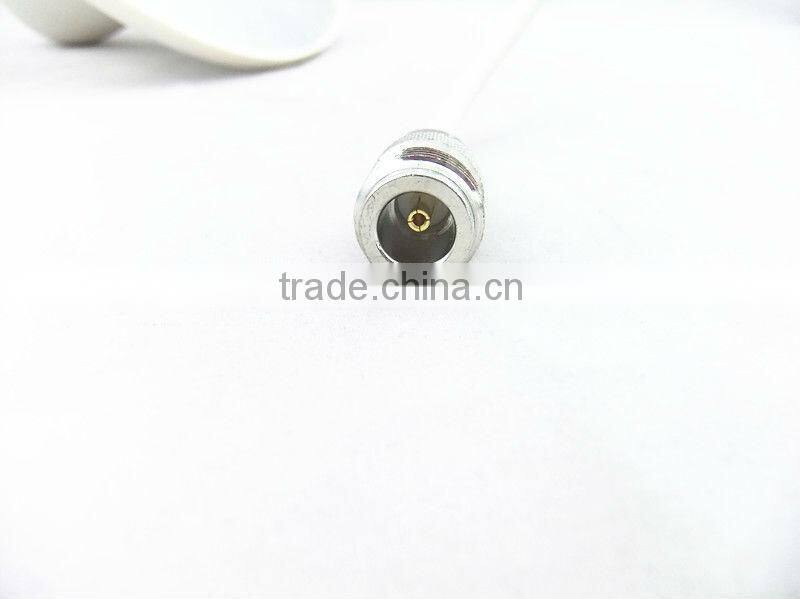

RF Indoor Omni Antenna N-F 50W
- 500 Piece / Pieces per Month
- Shanghai/Shenzhen/Ningbo
- T/T
- 50W RF Indoor Directional suction top Antenna N-F
- RF 7dBi/10dBi Wall mount Flat Omni Patch Panel Antenna Wifi (Manufacturer)
- 698-2700MHz 3dBi Ceiling Mount Antenna Indoor Omni Directional Antenna (Manufacturer)
- 750-2700MHz 5dBi Ceiling Mount Indoor Omni 3G Directional Antenna (Manufacturer)
- RF 7dBi/10dBi Flat Omni Wall mount Patch Panel Antenna Wifi (Manufacturer)
- 698-2700MHz 3dBi Ceiling Mount Antenna Indoor vhf Omni Directional Antenna (Manufacturer)
Product Details
Place of Origin: | Anhui, China | Brand Name: | SETSAIL | Model Number: | YF-OA-50W |
Packaging Details
Standard Exporting Cartons for Omnidirectional suction top Antenna
Product Description
50W RF Indoor Omnidirectional suction top Antenna N-F, rf antenna, antenna ominidirectional
Technical Specifications for Omnidirectional suction top Antenna :
Name | Omnidirectional suction top antenna | Directional suction top antenna | Log periodic antenna |
Model | YF-OA-50W | YF-DA-50W | YF-LA-50W |
Frequency range(MHz) | 806-960/1710-2500MHz | 806-960/1710-2500MHz | 806-960/1710-2500 MHZ |
Polarization | vertical | ||
Gain(dBi) | 2/5 | 4/6 | 8/9 |
Horizontal lobe width(°) | 360 | 115±15/85±15 | 90±15/75±15 |
Vertical lobe width(°) | 85/40 | 120/80 | 60/55 |
Front-to-rear ratio(dB) | 4/8 | ≥16dB | |
Impedance(ohm) | 50 | ||
VSWR | ≤1.4 | ||
Lightning protection | Direct ground | ||
Weight(kg) | 0.250 | 0.35 | 0.4 |
Cable length(mm) | 380mm | 380mm | 500mm |
Size(mm) | 165*100mm | 165*85mm | 310*207*65mm |
Antenna color | White | ||
Environment temperature(°C) | -40 - +60 | -40-+70 |
Note: SETSAIL is capable of manufacturing different frequencies (700-2700MHz) antennas according to customers’ detailed requirements.
Please feel free to contact with below information:
Company Profile
Hefei Setsail Telecom,Co,Ltd (established in 2002) is an Professional
Manufacturer of RF Passive Components:Power Spliter, Directional
Coupler, 3dB Hybrid Coupler, Combiner, Dummy Load/Termination, Attenuator, Duplexer, Isolator, Cable, Connector and Antenna.
1. Hefei Setsail Telecom,Co,Ltd is established in 2002.located in Hefei National Hi-tech Industry Development Zone.We focus on Microwave Technology Research,RF,Microwave Components and System Industry Development.Our products are widely used in communication network,satellite orientation,radar and military field.We offer a highly diversified product line that serves top tier telecom,satellite companies.
2. Products include 10 series and 100 designs with their own property right and authority approval.The products line have Hybrid Coupler,Power Splitter,Directional Coupler ,Coaxial Attenuator,Coaxial Termination,Cable
Assembly,Connector,Arrester,Filter,Duplexer,Combiner and so on .Customer designs (OEM/ODM) are also available.
3. Headquarters of Setsail is located at hi-tech developing district in Hefei Anhui,includeing two factories, At the same time,Setsail's market network has been all over the world.
4. Setsail company has a tremendous fellowship that is compased of many high-level technologists .And also has established a research institution which cooperating with some famous universities.(University of Science and Technology of China.)
5.All the staffs are filled with confidence ,attending the market cpmpetition and offering clients the exquisite technology,reasonable price,excellent quality and best service.
