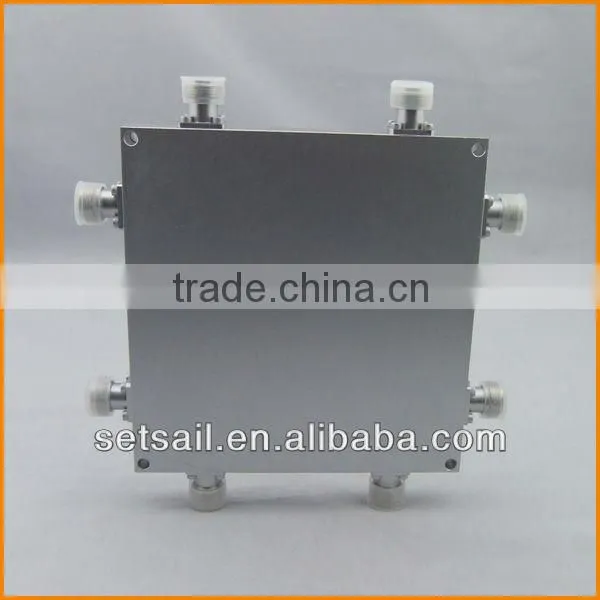

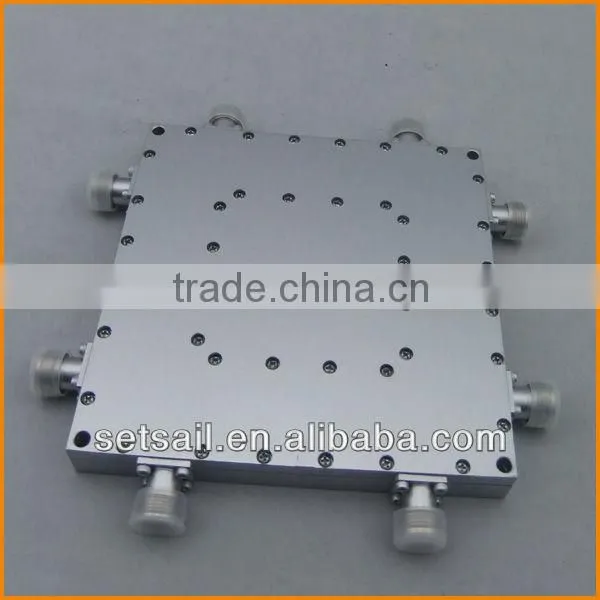

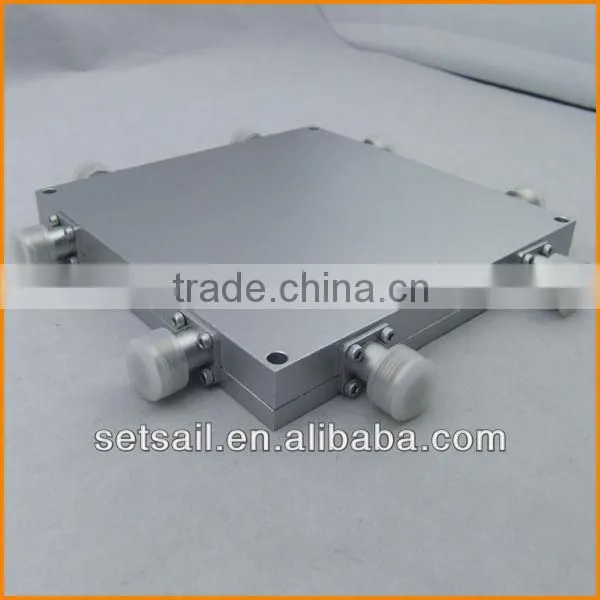

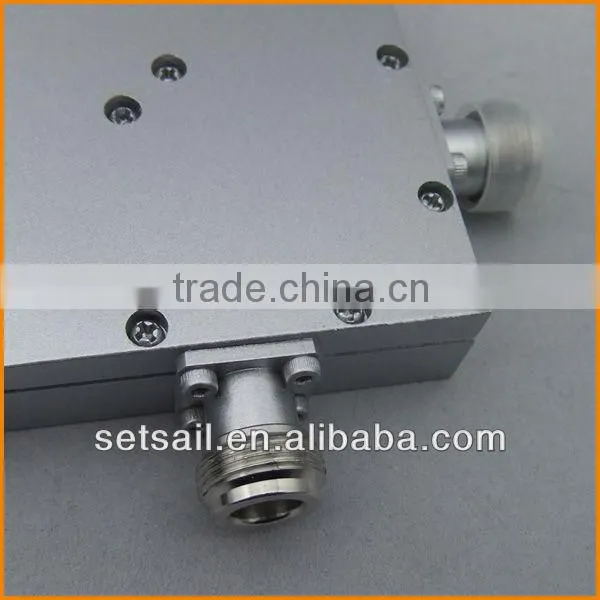

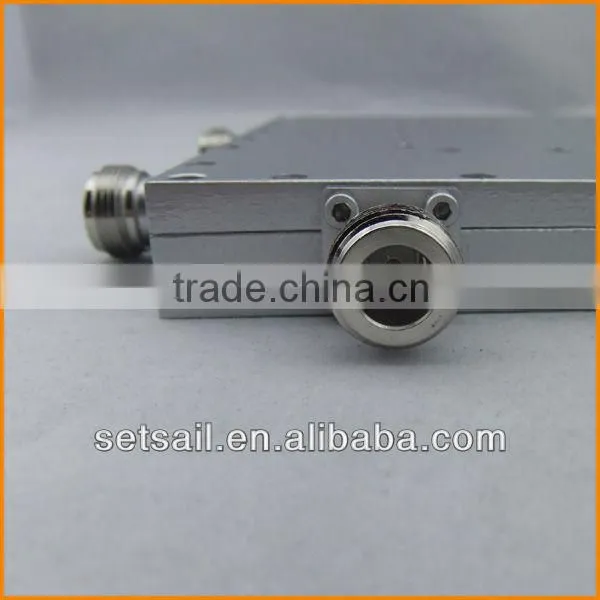

Help CenterStripline Hybrid Coupler 698-2700MHz N-type
Related Products
-
(698-2700MHz) N-type Wilkinson 3dB Hybrid CouplerUS$ 5 - 15MOQ: 10 Pieces -
N-type Wilkinson 3dB RF Hybrid Coupler (698-2700MHz)US$ 5 - 15MOQ: 10 Pieces
-
N-type Wilkinson Hybrid Coupler 3dB (698-2700MHz)US$ 1.2 - 5MOQ: 10 Pieces
-
(698-2700MHz) N-type Wilkinson 3dB Hybrid Coupler 90NegotiableMOQ: 10 Pieces
-
(698-2700MHz) N-type Wilkinson Hybrid Coupler 3dbNegotiableMOQ: 10 Pieces
A hybrid coupler is a passive device used in radio and telecommunications. It is a type of directional coupler where the input power is equally divided between two output ports. Since it is a special case of directional coupler, it is discussed in Power dividers and directional couplers.

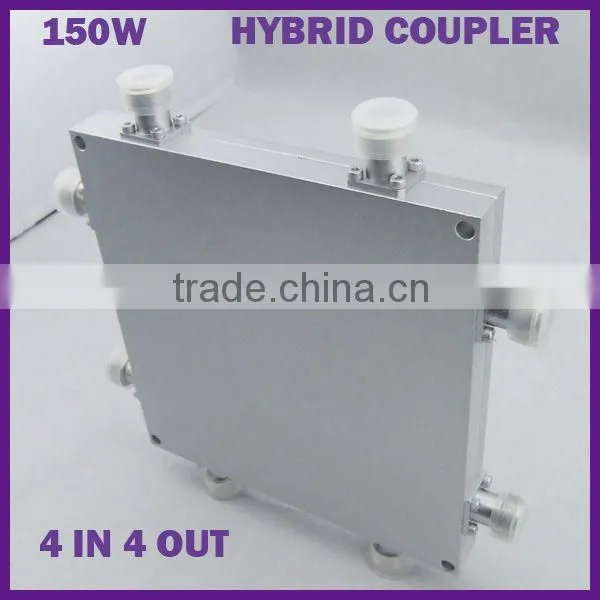

(698-2700MHz) N-type Micro-Strip 4*4 Port Hybrid Coupler
Product Name |
800-2500/2700MHz, 698-2700MHz, 150W, N-female, RF 4 way Combiner |
||
Model |
YF-RC-0825-04-N |
YF-RC-0827-04-N |
YF-RC-0727-04-N |
Frequency(MHz) |
800-2500 |
800-2700 |
698-2700 |
Insertion Loss(dB) |
1.0 |
1.0 |
1.1 |
Isolation(dB) |
20 |
20 |
20 |
Coupling(dB) |
6 |
6 |
6 |
VSWR |
1.30:1 |
1.30:1 |
1.30:1 |
Power Capacity(W) |
160 |
||
Impedance(ohm) |
50 |
||
RF Connector |
N-female |
||
Operating Temperature (deg) |
-35~+70 |
||
Material |
Aluminum |
||
Color |
Black-plated |
||
Relative Humidity |
5%-95% |
||
Dimensions(mm) |
278.2*210 |
||
Weight(kg) |
2.13kg |
||
Send Inquiry to This Supplier
