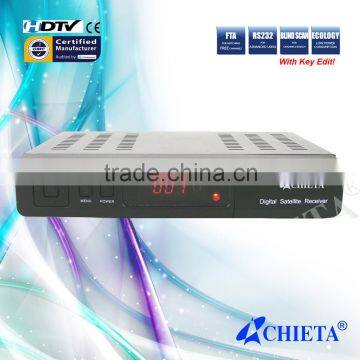

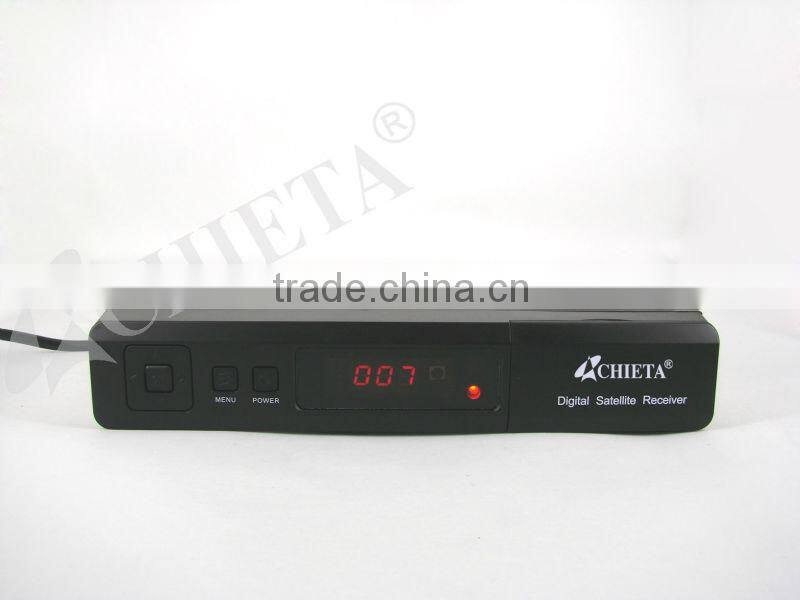

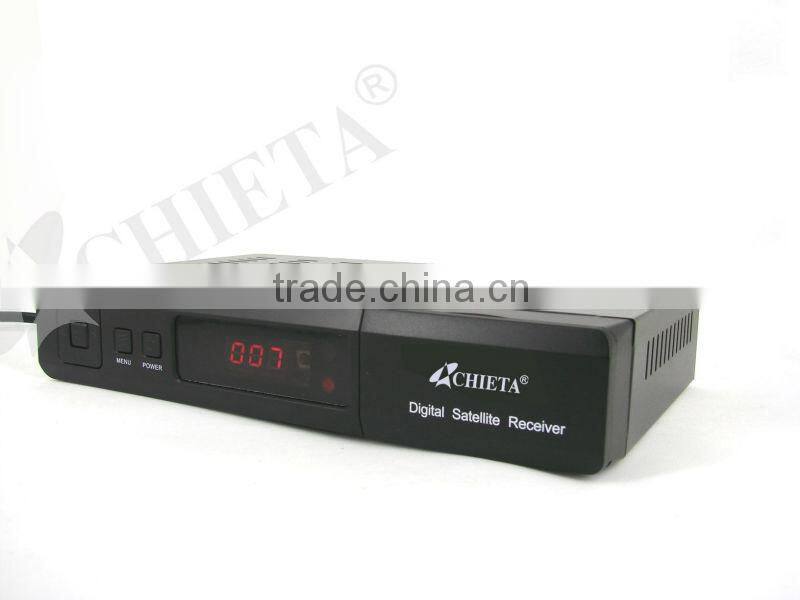

DVB-S Digital TV Satellite Receiver with RF In & Out
Digital Satellite Receiver with Key Edit and RF in& out
CHIPSET Ali3328/3329
Compatible with DVB-S/MPEG-2
Ultra low threshold(<2.2dB)
Storing 2000 channels

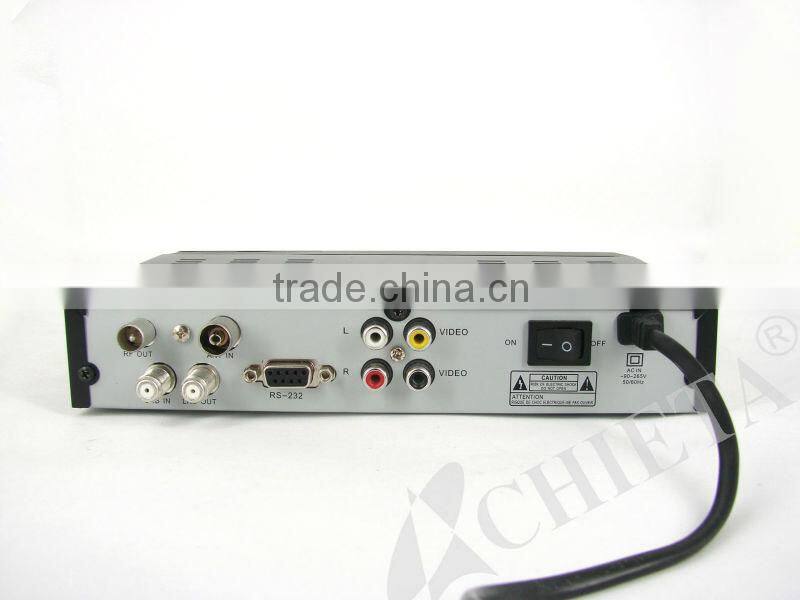

With RF- port
9PIP function
Signal indicator available
0/22KHz function available
DiSEqC 1.0,1.2function available
PID settings available
Power off memory
Software upgradable via RS-232
BOX-to-BOX upgrading function available
Highly reliable ON/OFF power switch
Tuner |
Frequency range |
950~2,150MHz |
Input level |
-79~-11dBm |
|
Input impedance |
75ohms |
|
IF band width |
27~36MHz |
|
Threshold |
<2.2dB |
|
Input interface |
F-type |
|
Audio |
Audio output |
L/R |
Frequency characteristic |
<=+/-0.5dB(20Hz-20KHz) |
|
Audio SNR |
>=70dB |
|
Level difference between left and right sound channels: |
<=0.3dB(60Hz-18KHz) |
|
Output connector |
RCA |
|
Video |
Decode format |
MPEG- |
Bit rate |
<=15Mbps |
|
Output mode |
NTSC/PAL |
|
Video output |
1V+/-20(mV)P-P |
|
Resolution |
720x576(PAL),720x480(NTSC) |
|
Channel decode |
Demodulation mode |
QPSK |
Symbol rate |
2~45Mbps |
|
LNB power supply |
13/18V |
|
Operating voltage |
80270V AC |
|
Power |
20W(Max.) |
| Unit Packing Size | PCS/ Carton |
| 230*210*45mm | 20pcs |
| Carton CBM (0.06m3) | QTY per Container |
| 53.0*45.5*25.5 cm | 20GP: 9180pcs |
| Box Type | 40GP: 16390pcs |
| Color/ Neutral | 40HQ: 21310pcs |
| Unit Weight: | Carton Weight: |
| 720g | 15.5kg |
