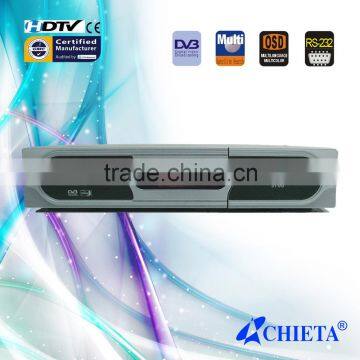

FTA DVB-S Digital Satellite Receiver with RS-232 Update Port
* Compatible with DVB-S/MPEG-2
* Ultra low threshold(<2.2dB)
* Storing 2000 channels
* Support dongle (optional)
* 9 PIP function
* Signal indicator available
* 0/22KHz function available
* DiSEqC 1.0,1.2function available
* PID settings available
* Software upgradable
* Power off memory
* Software upgradable via RS-232
* BOX-to-BOX upgrading function available

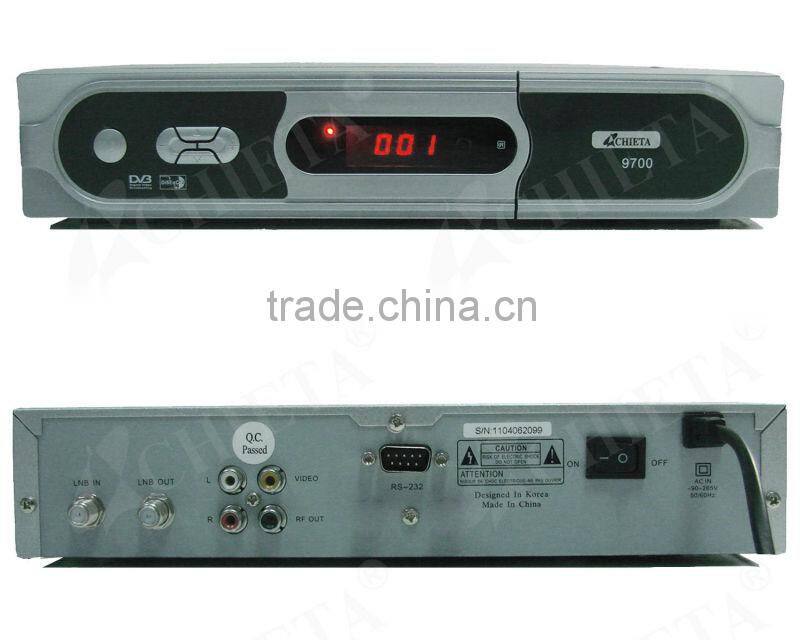

* With AV,S-Video and RF output
* Highly reliable ON/OFF power switch
Tuner |
Frequency range |
950~2,150MHz |
Input level |
-79~-11dBm |
|
Input impedance |
75ohms |
|
IF band width |
27~36MHz |
|
Threshold |
<2.2dB |
|
Input interface |
F-type |
|
Audio |
Audio output |
L/R |
Frequency characteristic |
<=+/-0.5dB(20Hz-20KHz) |
|
Audio SNR |
>=70dB |
|
Level difference between left and right sound channels: |
<=0.3dB(60Hz-18KHz) |
|
Output connector |
RCA |
|
Video |
Decode format |
MPEG- |
Bit rate |
<=15Mbps |
|
Output mode |
NTSC/PAL |
|
Video output |
1V+/-20(mV)P-P |
|
Resolution |
720x576(PAL),720x480(NTSC) |
|
Channel decode |
Demodulation mode |
QPSK |
Symbol rate |
2~45Mbps |
|
LNB power supply |
13/18V |
|
Operating voltage |
80270V AC |
|
Power |
20W(Max.) |
