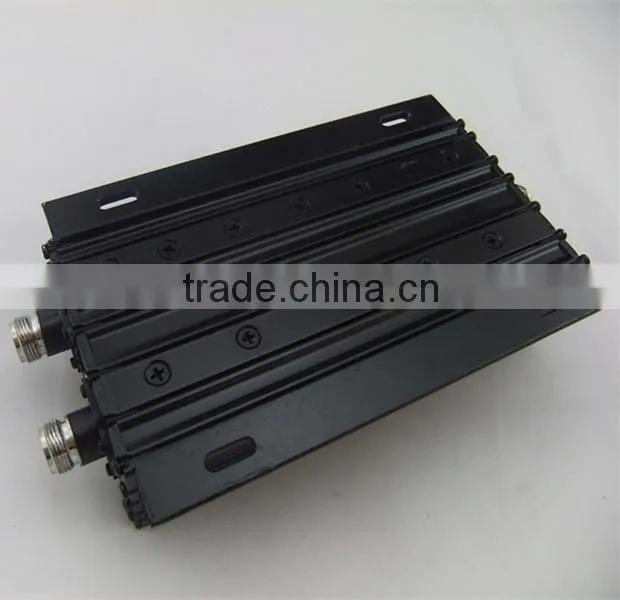

High quality Two / Dual band combiner professional China supplier
Techanical Specifications :
Model |
YFTX-RFCOM-07N |
|
CH1:GSM&DCS |
CH2:3G |
|
Frequency(MHz) |
800-960&1710-1880MHz |
1920-2170 |
Insertion Loss(dB) |
≤0.6dB@ 800- 960MHz ≤0.8dB@1710-1880MHz |
≤0.8dB |
Pass band Ripple(dB) |
≤0.4dB@ 800- 960MHz ≤0.6dB@1710-1880MHz |
≤0.6dB |
Out band Rejection(dB) |
≥80@CH2 |
≥80@CH1 |
VSWR |
≤1.25 |
|
IM3 |
≤-120dBC@2×43dBm |
|
Impedance(ohm) |
50 |
|
Power(W) |
200 |
|
Operating Temperature(deg) |
-30~+65°C |
|
Connector Type |
N-K |
|
Noted: Combiners can be customized according to the detailed requirements.
Appliction:
1.Mobile Communication Network Optimization and In-door distribution system.
2.Cluster communication, satellite communication,shortwave communication and hopping radio.
3.Radar, electronic navigation and electronic confrontation.
4.Aerospace equipment systems.
Product descriiptions:
Packing Details:
each piece in opp bag, each bag in small white inner box, and then the small boxes in standard
exporting carton. the products will be protected very well with paper cardboard and foam.
Product Center:

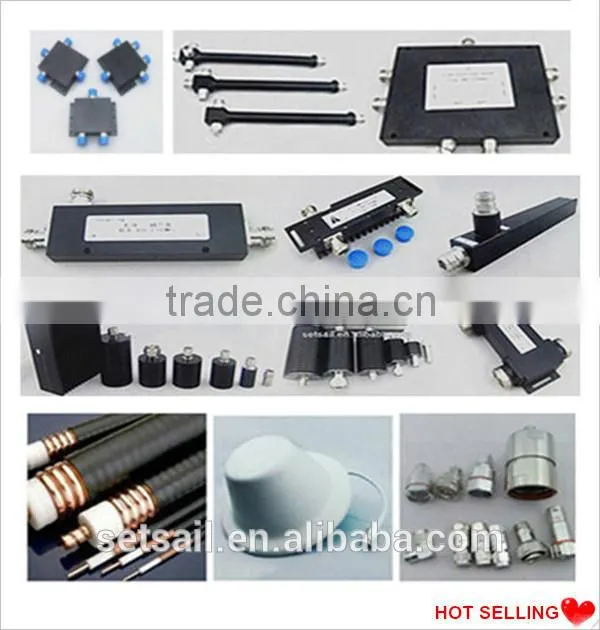

More hot selling products:
Our service
1. Professional skills support.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
Warranty and return
1. All products accessories have been checked for 3 times before shipping out.
2. All products have one year warranty. If there is no man-made problems,
we will replace or repair for you.
Looking forward to have a wonderful conversation with you !
