Help CenterDIN Male RF 50 Ohms RF Termination
Related Products
Specifications

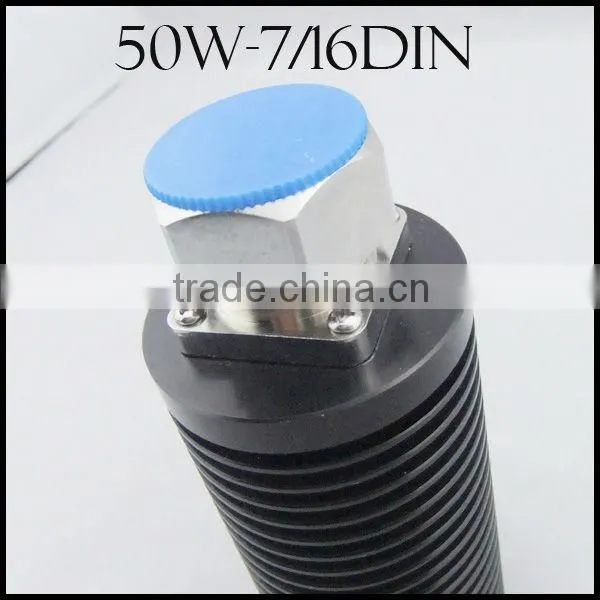

DIN Male RF termination1.Low VSWR of 50W RF Load
2.Wide Frequency Range of RF Termination
3.OEM service provides fo
Coaxial fixed dummy load absorb RF/Microwave energy and are commonly used as dummy loads of antenna and transmitter. They are used as match ports in many multiport microwave device such as circulator and directional coupler to make these ports which are not involved in the measurement be terminated in the characteristic impedance in order to ensure an accurate measurement.

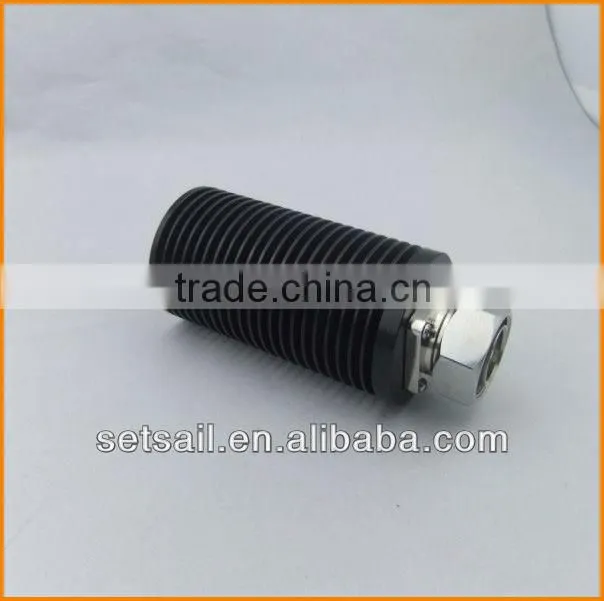

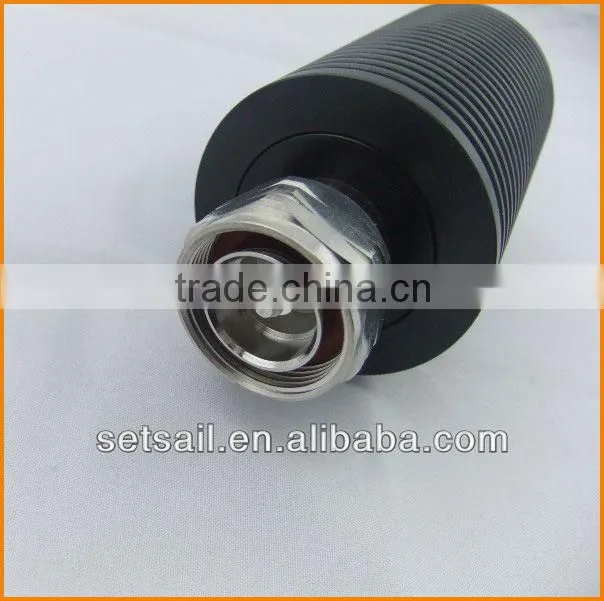

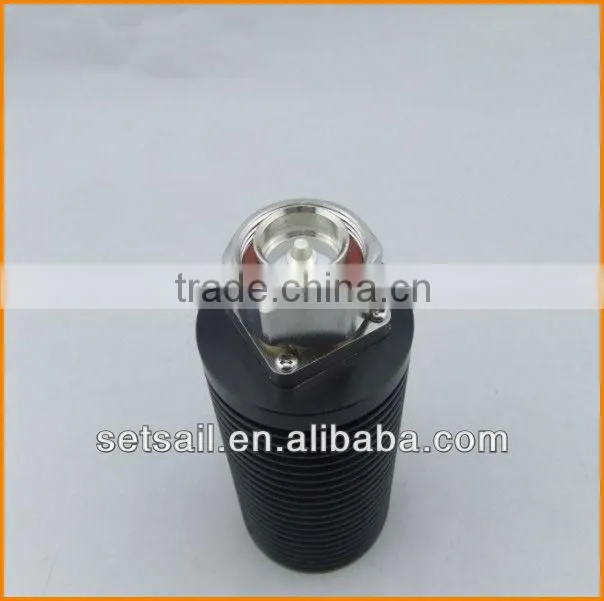

Product Name: DIN Male RF 50 ohms RF Termination
Product Name |
DIN Male RF 50 ohms RF Load |
Model Number |
YF-RFT-50W-3G-D-M |
Frequency(MHz) |
0-3GHz |
Temp Range |
-55°C~+80°C |
VSWR(max) |
1.20 |
Nominal Impedance |
50 |
Connector Type |
DIN-male |
Weight(kg) |
0.31 |

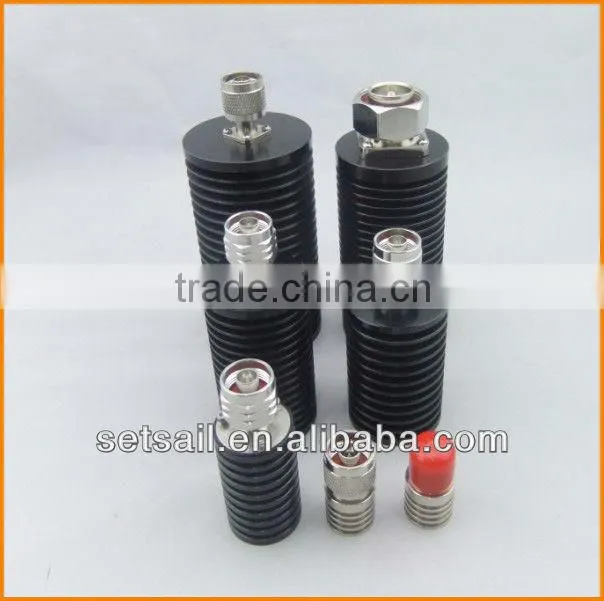

We are capable of manufacturing and providing 1W, 2W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 100W, 200W, 300W, 500W RF Dummy Load. The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G, DC-26G, DC-40G. RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type.
Application
Mobile communication network optimization
Indoor distribution system
Distributed Antenna System
