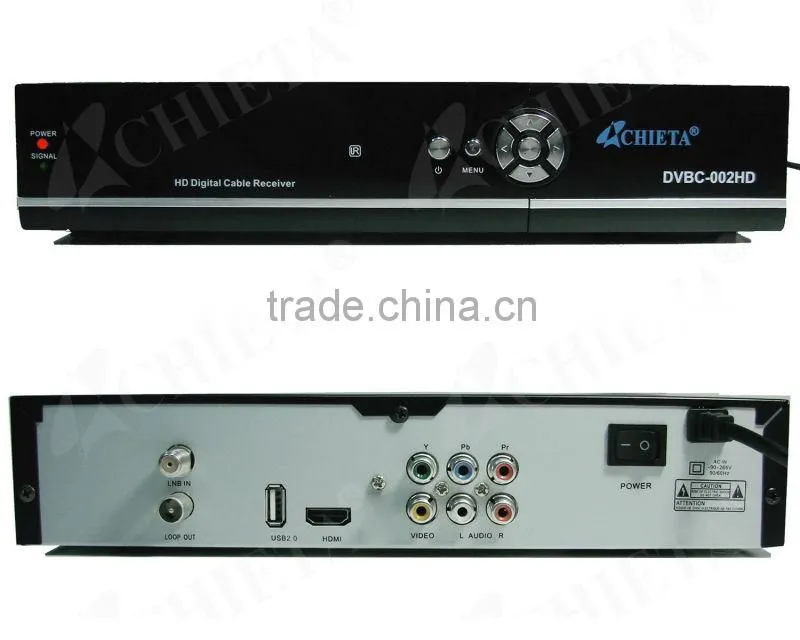

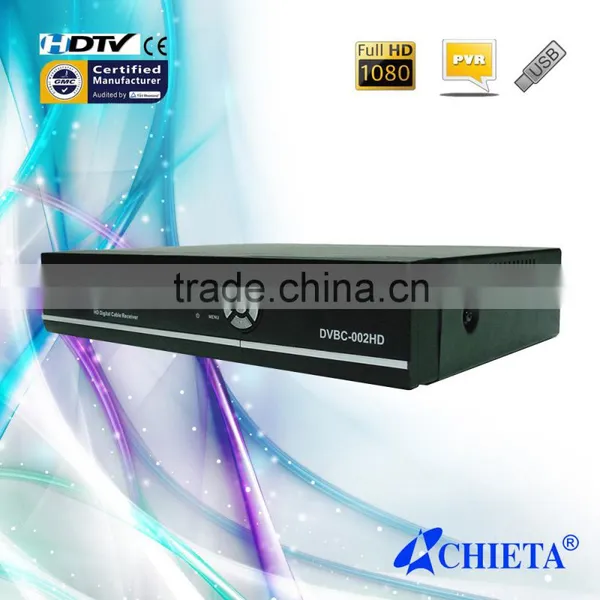

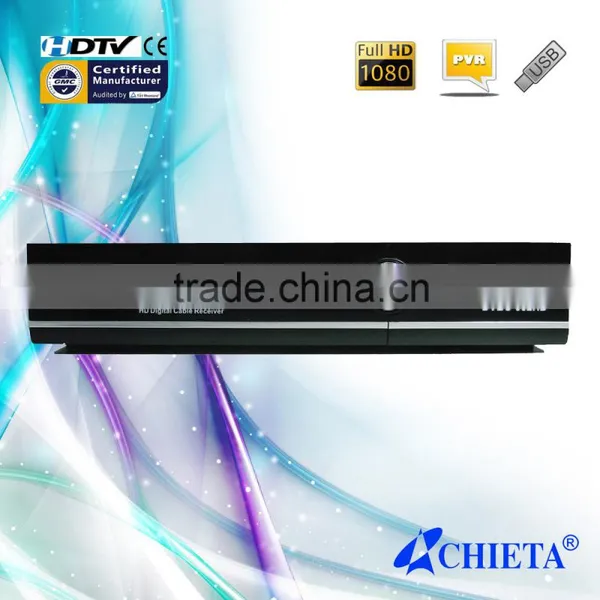

Full HD 1080p DVB-C Cable TV Set Top Box with Divitone CAS
* Fully compliant with DVB-C digital TV reception standards
* HDTV/SDTV MPEG-2 & MPEG-4 / H.264 decoding
* Support 480i/480p/576i/576p/720p/1080i
* Compliant wtih ITU J.83 Annex A standard
* 16-bit color OSD display
* HD output for High Definition
* Built-in Games
* Support teletext/subtitle/multi-language

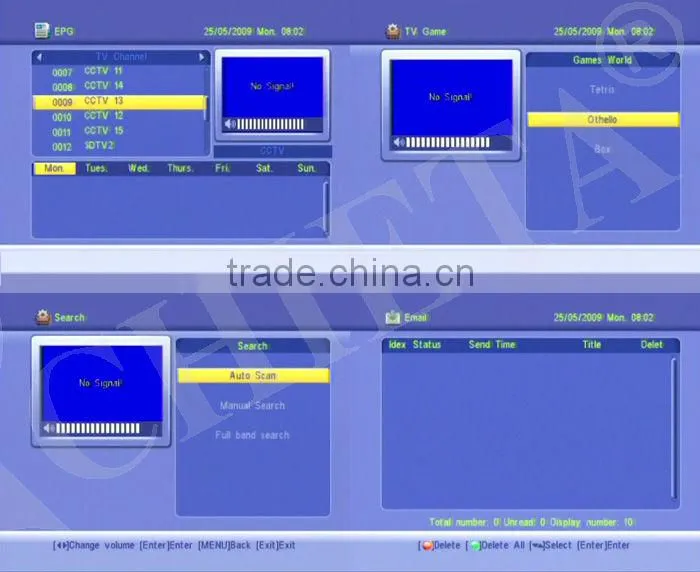

* Support EPG
* Channel edit function including Favourite, Move, Delete, Lock
* Variable aspect ratio (4:3, 16:9) 4:3 Pan & Scan or Letter Box modes
* Support USB 2.0 and OTA software upgrade
* With parental lock and favourite channels save key
NOTICE:
Dear Customer, you must contact your cable TV provider before you purchase any cable set top box to ensure they support the use of 3rd party cable set top boxes.
Specifications: |
|
Main System |
|
Main Processor |
HI3716 chipset, 600MHz |
Memory |
Flash 16MB |
|
DDRⅢ 4GB |
RF Input type |
IEC F-type connector |
Input impedance |
75Ω |
Min signals level |
33 dBmV |
Max signals level |
105 dBmV |
Input Frequency: |
50MHz~858MHz |
Decoding |
16,32,64 , 128,256 QAM |
Support scope |
0.45~7.0Mb/s |
RF Output Type |
IEC male plug, Loop through |
Output impedance |
75Ω |
Audio DECODING |
|
Decoding |
MPEG LayerⅠ&Ⅱ |
Audio output |
Stereo, mono, dual, SPDIF optical digital output |
Video DECODING |
|
Transport Stream |
MPEG-2 MP@ ML/MPEG4 |
Profile Level |
Up to H.264 HD, HP L4.1, Up to MPEG-2 HD, MP HL |
Aspect Ratio |
16:9 / 4:3 Letter-Box, Pan & Scan |
Video Resolution |
1920x1080p,1920x1080i, 1280x720p, 720x576p/i |
Video Format |
PAL,NTSC,SECAM(Option) |
Video output standard |
Output Scope:1.0±0.05V Vp-p |
A/V & Data In/Out |
RCA,S-VIDEO |
HD |
HD digital display, multi format capable (1080P,1080I, 720P, 480P, 480I) |
Y/Pb/Pr |
Analog HD output |
SCART |
Video CVBS output, Audio L/R output |
SPDIF |
Digital audio output |
USB |
High-Speed USB 2.0 Port |
Power Supply |
|
Power input voltage |
AC90~250V 50~60Hz |
Power Consumption |
10W max |
Standby Consumption |
<1W |
Operation Temperature |
0°C~45°C |
