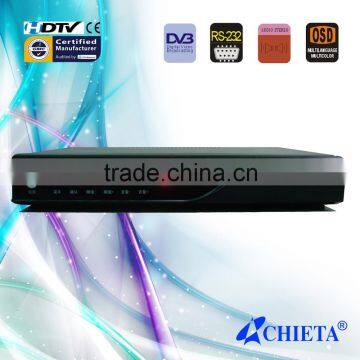

AV/ SCART Optional SD DVB-C Cable TV Receiver
*Fully compliant with DVB-C
*Supports 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
*Supports low frequency LNB
*Multi-CA can be chosen(optional)
*Internal loader suport OTA
*Multi-search function
*PAL/ NTSC auto switch

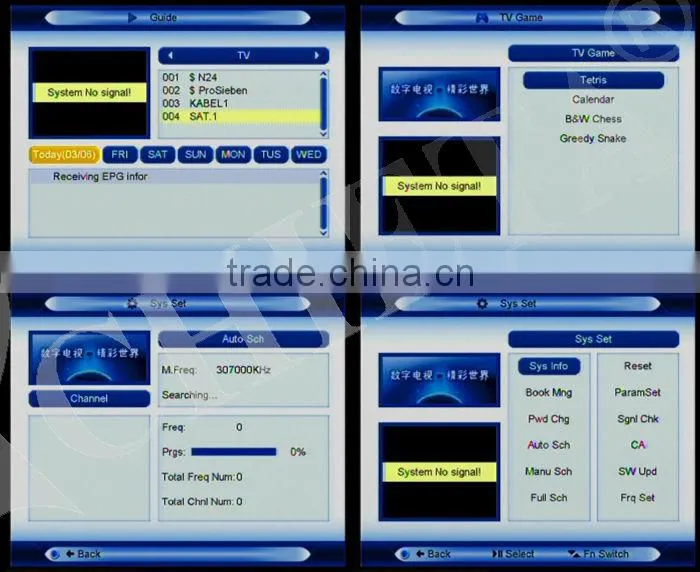

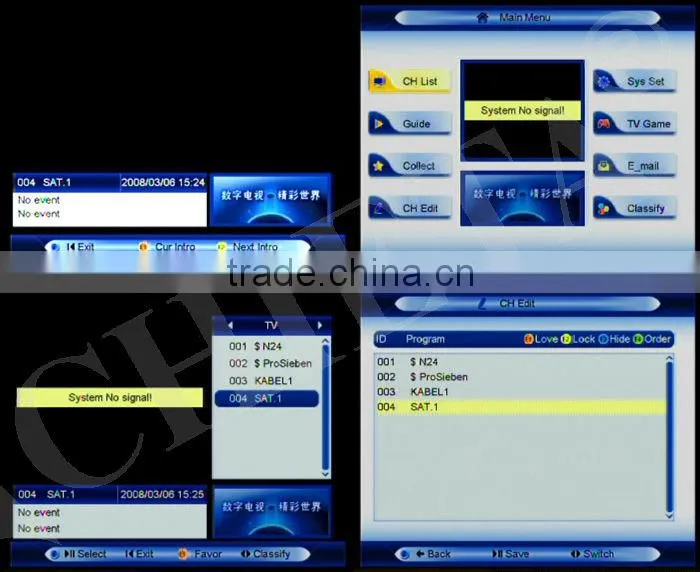

*Multi language OSD
*Dynamic user interface
*Memory backup when lost power
*Two SCART output
*Composition video signal
*Digital sound output
*Standard EPG, NVOD
*Supports short cut menu
*Games
NOTICE: Dear Customer, you must contact your cable TV provider before you purchase any cable set top box to ensure they support the use of 3rd party cable set top boxes.
LNB |
|
Input Frequency: |
47MHz-862MHz |
Input Level: |
-25dBmV~+25dBmV(64QAM) |
Input Impedance: |
|
Channel Decoder |
|
Compatible with: |
DVB-C EN300429 |
Modulation Mode: |
16/32 /64 /128 /256 QAM |
Symbol Rate: |
3.6-6.952MS/s |
Video Decoder |
|
Compatible with: |
ISO/ IEC 13818-2 MPEG- 2 MP@ML |
Video Formats : |
4:3,16:9 |
Resolution: |
720 * 576(PAL) 720 * 480(NTSC) |
Audio Decoder |
|
Compatible with: |
ISO/IEC -11172-3 |
Audio Decoder: |
MPEG-1 Layer I/II |
Audio Mode: |
Dual (main/sub), Stereo |
Frequency: |
44.1,48KHz |
Amplitude-frequency Response: |
20HZ~20KHZ +/-2Db |
SNR: |
min.76dB |
Physical Interface |
|
ANT Input: |
F-Type, 75Ω |
ANT Loop Output: |
IE-Type, male |
Video Output: |
2 * RCA |
Audio Output: |
1 * RCA |
Smart Card: |
ISO 7816 |
Power Parameter |
|
Inout Voltage: |
AC220V/ 50HZ |
Power Consumption: |
≤10W |
Physics Parameter |
|
Panel Keys: |
Power, Up, Down, Left, Right, Confirm& Menu |
Working Temperature: |
0~40°C |
General View of Company

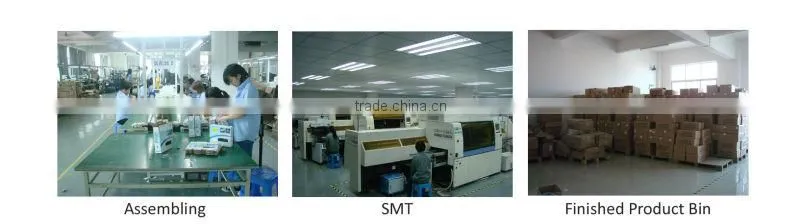

Production Sections

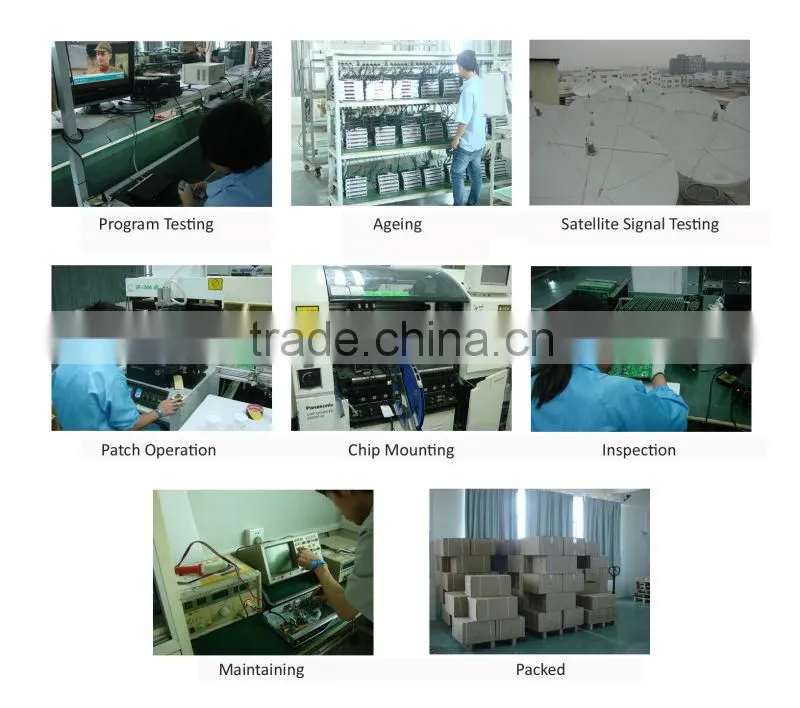

Production Process
