Home > Electrical & Electronics > Antenna > Communication Antenna > 500W 7dB 800-2500/800-2700/700-2700MHz RF Directional Coupler(N-Female)

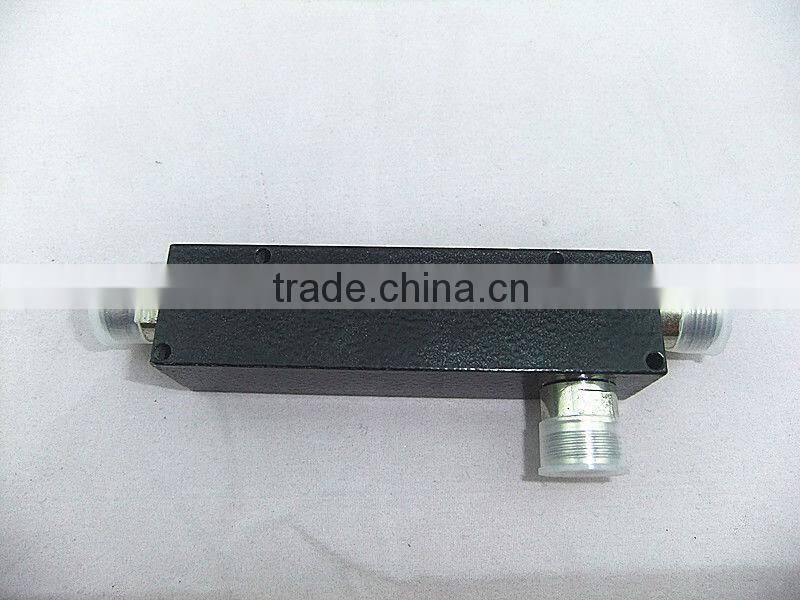

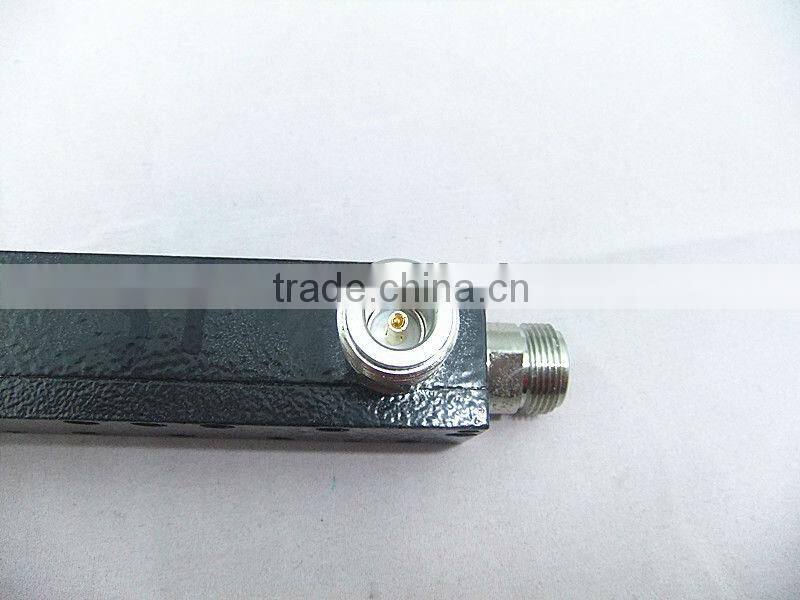

500W 7dB 800-2500/800-2700/700-2700MHz RF Directional Coupler(N-Female)

Name: 500W 7dB 800-2500/800-2700/700-2700MHz RF Directional Coupler(N-Female)
Brand: SETSAIL
SKU: 132978567
Availability: InStock

500W 7dB 800-2500/800-2700/700-2700MHz RF Directional Coupler(N-Female) thumbnail-1

500W 7dB 800-2500/800-2700/700-2700MHz RF Directional Coupler(N-Female) photo-1

Negotiable MOQ: 30 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Anhui, China

Brand Name:

SETSAIL

Model Number:

YF-DC-627-7-NF

Contact Supplier Request Quote Chat Now

Hefei Setsail Telecom Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Anhui, China

Brand Name SETSAIL

Model Number YF-DC-627-7-NF

Specifications

Directional Coupler,High Quality Directional Coupler,
Coupler,N-Female connector Coupler,
Low Inserrtion Loss, High Isolation

500W 7dB 800-2500/800-2700/700-2700MHz RF Directional Coupler(N-Female)Directional Coupler,High Quality Directional Coupler,Coupler,N-Female connector Coupler,

Model	YF-DC-627-5-N	YF-DC-627-6-N	YF-DC-627-7-N	YF-DC-627-10-N	YF-DC-627-15-N	YF-DC-627-20-N	YF-DC-627-30-N	YF-DC-627-40-N	YF-DC-627-50-N
Coupling(dB)	5±0.8dB	6±0.8dB	7±1dB	10±1dB	15±1.2dB	20±1.2dB	30±1.5dB	40±2.0dB	50±2.0dB
Insertion Loss(dB)	2.0dB	1.75dB	1.45dB	0.8 dB	0.45dB	0.4 dB	0.35 dB	0.30 dB	0.25 dB
Isolation(dB)	25 dB	26 dB	27dB	28dB	32dB	35 dB	45 dB	50dB	60dB
Frequency(MHz)	800-2500MHz800-2700MHz/700-2700MHz/670-2700MHz
VSWR	≤1.3:1
3rd order IMD	-120dBc or -140dBc or -150dBc
Power Capacity(W)	500Wmax
Impedance(ohm)	50Ω
RF Connector	N-F
Temperature(deg)	-40°C ~ +80°C
Color	Black-plated or Silvery-white Plated
IP Grade	IP60 or IP65
Weight(kg)	0.705

Notes: the work temperature, the size of the bottom plate and the installation way can be adjusted according to the customers' detailed requirements

Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
