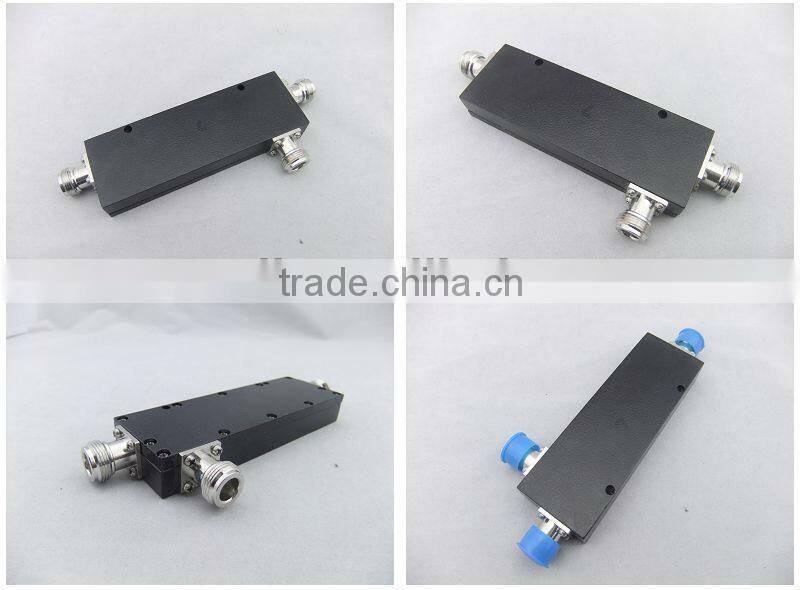

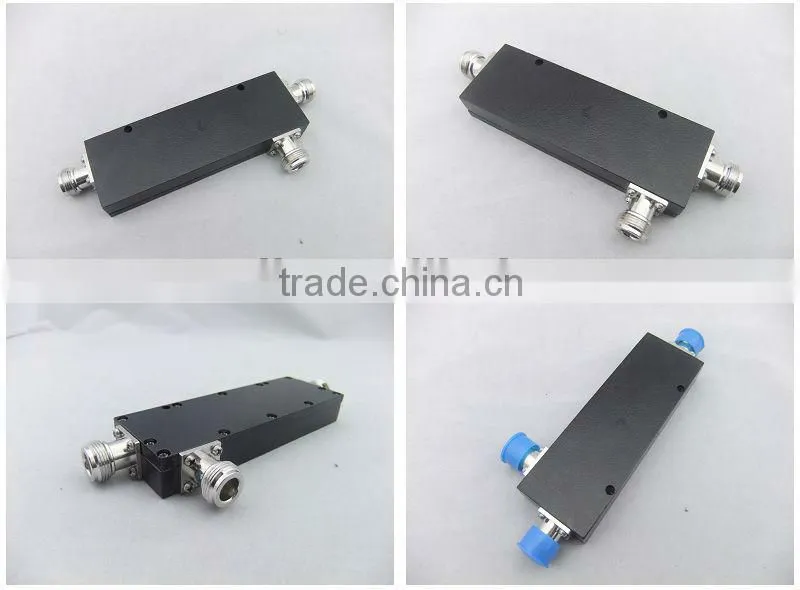

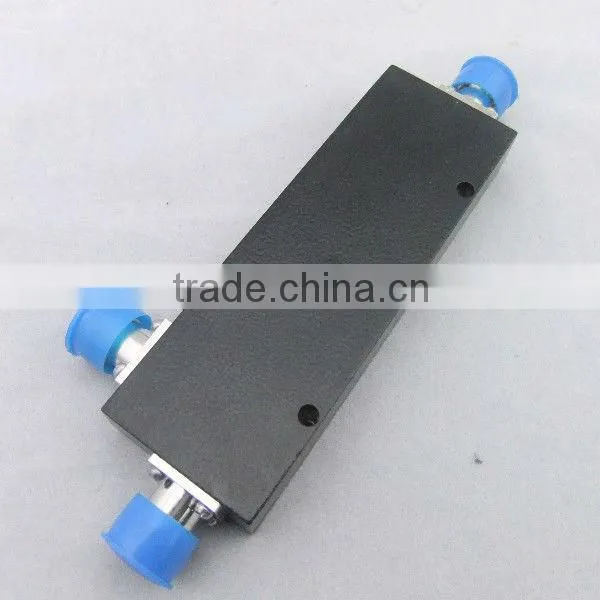

15dB Directional Coupler

Name: 15dB Directional Coupler
Brand: Setsail
SKU: 132978375
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Setsail

Model Number:

YFTX-RC-0825-15-NF

Hefei Setsail Telecom Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Setsail

Model Number YFTX-RC-0825-15-NF

Specifications

15dB Directional Coupler
1.Low Insertion Loss
2.Good VSWR
3.400pcs in stock
4.We are manufacturer

Application for 15dB Directional Coupler

1.Mobile Communication Network Optimization and In-door distribution system.

2. Cluster communication, satellite communication, shortwave communication and hopping radio.

3. Radar, electronic navigation and electronic confrontation.

4. Aerospace equipment systems

15dB Directional Coupler 800-2500MHz (IBS and BTS)

Technical Specifications :

800-2500MHz 6/10/15/20/30dB RF Directional Coupler

Model	YFTX-RC-0825-05-NF	YFTX-RC-0825-10-NF	YFTX-RC-0825-15-NF	YFTX-RC-0825-20-NF	YFTX-RC-0825-30-NF
Frequency(MHz)	800-2500
Product Name	800-2500MHz, 6/10/15/20/30dB RF Cavity Directional Coupler
Coupling(dB)	5±0.6	10±0.8	15±1.0	20±1.0	30±1.0
Insertion Loss(dB)	2.0	0.8	0.45	0.4	0.35
VSWR	1.25
Power Capacity(W)	200
Directivity(dB)	20
RF Connector	N-female or SMA-female
Impedance(ohm)	50
Relative Humidity	5%-95%
Color	Black/Silver-white
Temperature(deg)	-35~+125
Application	Indoor
Weight(kg)	0.23
