Help Center15dB RF Directional Coupler 800-2700MHz
Related Products
Techanical Specification of rf directional coupler:
Product Name |
RF directional coupler |
Model |
YFTX-DC-827-15-DIN |
Frequency(MHz) |
800-2700 |
Coupling(dB) |
15±1.2 |
Insertion Loss(dB) |
0.45 |
Isolation(dB) |
32 |
VSWR |
≤1.3:1 |
PIM3 |
≤-120dBc |
Power Capacity(W) |
500 |
RF Connector |
DIN-female |
Impedance(ohm) |
50 |
Relative Humidity |
5%-95% |
Color |
Black-plated |
Temperature(deg) |
-40~+80 |
Noted: All the specifications can be changed as Customer's request.

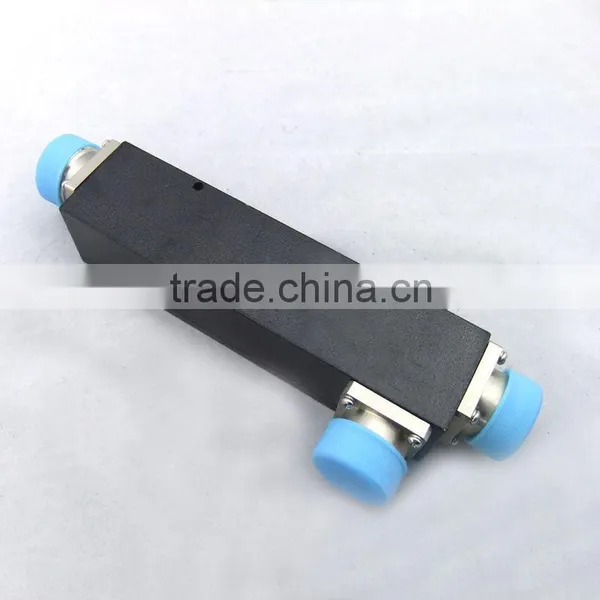

Details view for RF directional coupler :
Packing Details for RF directional coupler :
each piece in opp bag, each bag in small white inner box, and then the small boxes in standard exporting carton. the products will be protected very well with paper cardboard and foam
.
