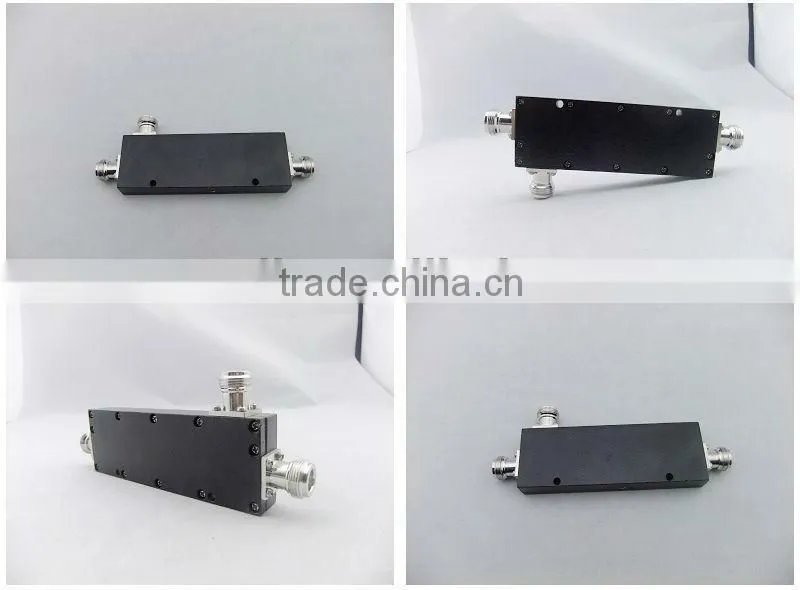

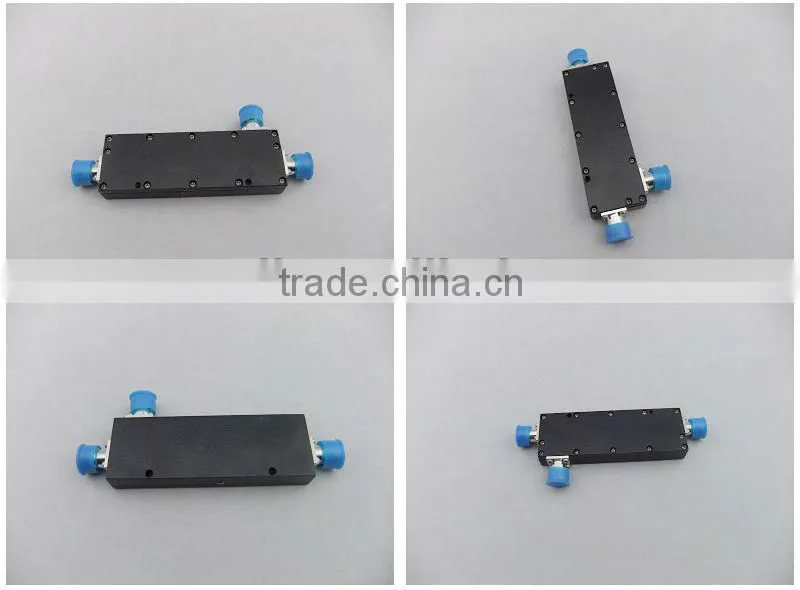

800-2500MHz 6/10/15/20/30dB RF Cavity Directional Coupler

Name: 800-2500MHz 6/10/15/20/30dB RF Cavity Directional Coupler
Brand: Setsail
SKU: 132978019
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Setsail

Model Number:

YFTX-RC-0825-15-NF

Hefei Setsail Telecom Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Setsail

Model Number YFTX-RC-0825-15-NF

Specifications

1.Low Insertion Loss RF Coupler
2.Good VSWR for Coupler
3.500pcs in stock and OEM offer
4.Best Price and we are manufacturer

Application:

1.Mobile Communication Network Optimization and In-door distribution system.

2. Cluster communication, satellite communication, shortwave communication and hopping radio.

3. Radar, electronic navigation and electronic confrontation.

4. Aerospace equipment systems

800-2500MHz 6/10/15/20/30dB RF Cavity Directional Coupler(IBS and BTS)

Technical Specifications :

800-2500MHz 6/10/15/20/30dB RF Cavity Directional Coupler

Model	YFTX-RC-0825-06-NF	YFTX-RC-0825-10-NF	YFTX-RC-0825-15-NF	YFTX-RC-0825-20-NF	YFTX-RC-0825-30-NF
Frequency(MHz)	800-2500
Product Name	800-2500MHz, 6/10/15/20/30dB RF Cavity Directional Coupler
Coupling(dB)	6±0.8	10±1.0	15±1.0	20±1.2	30±1.5
Insertion Loss(dB)	1.7	0.8	0.5	0.4	0.3
VSWR	1.25
Power Capacity(W)	200
Directivity(dB)	20
RF Connector	N-female or SMA-female
Impedance(ohm)	50
Relative Humidity	5%-95%

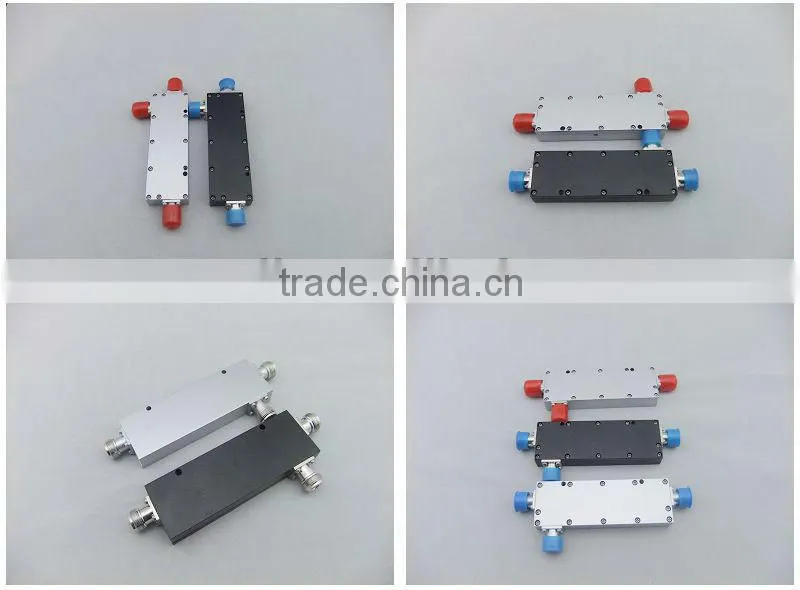

Color	Black/Silver-white
Temperature(deg)	-35~+125
Application	Indoor
Weight(kg)	0.23
