Specifications
1.Manufacturer of triplexers combiner2.Low RF insertion loss and VSWR
3.High power handing ,High rejection
4.ZTE Supplier

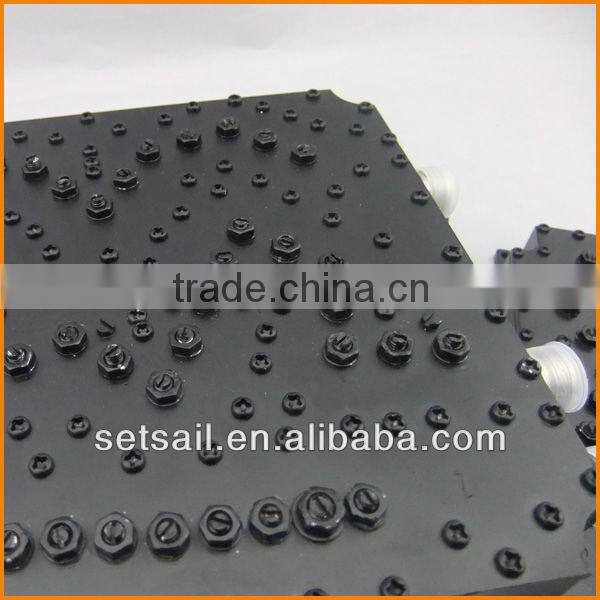

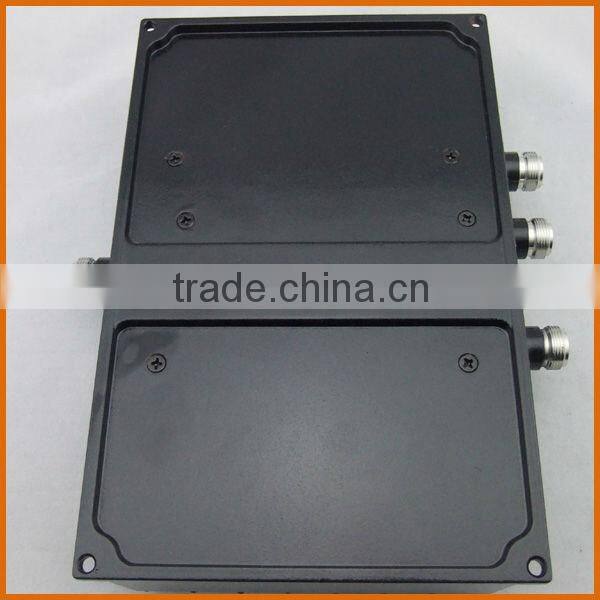

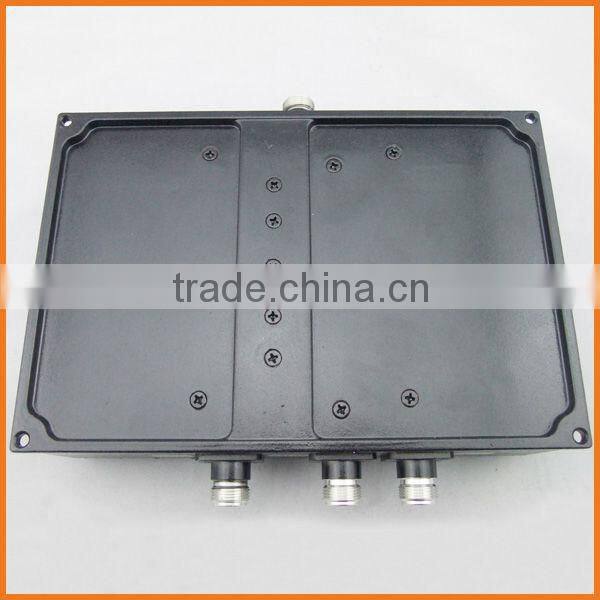

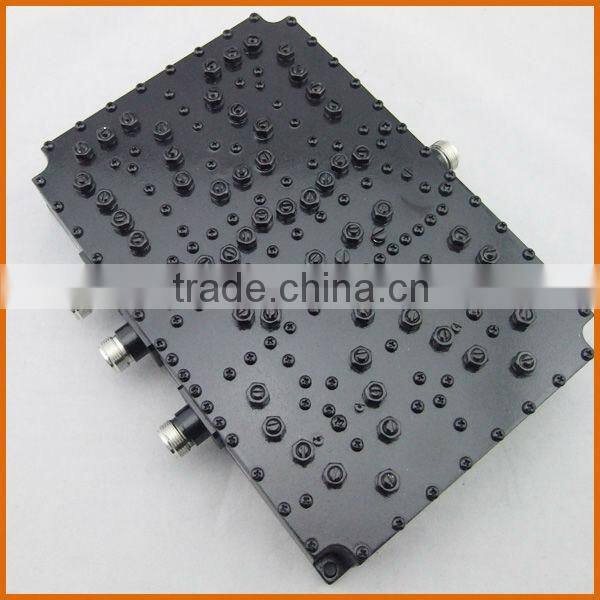

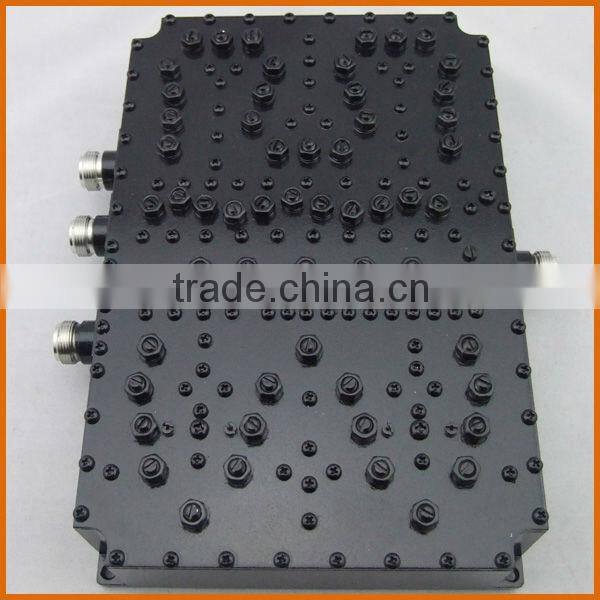

GSM/TD(A)/TD(B) triplexers combiner
Technical Specifications:
triplexers
Model |
YF-RFCOM-3-01N |
||
Channel |
CH1:GSM |
CH2:TD(A) |
CH3:TD(B) |
Frequency(MHz) |
885-954 |
1880-1920 |
2010-2025 |
Insertion Loss(dB) |
≤0.6dB |
≤0.6dB |
≤0.6dB |
Passband Ripple(dB) |
≤0.4dB |
≤0.4dB |
≤0.4dB |
Out band Rejection(dB) |
≥80@CH2&3 |
≥80@CH1&3 |
≥80@CH1&2 |
VSWR |
≤1.25 |
||
IM3 |
≤-120dBc or -140dBc@2×43dBm |
||
Impedance(ohm) |
50 |
||
Power(W) |
200 |
||
Operating Temperature(deg) |
-30~+65°C |
||
Connector Type |
N-F |
||
Dimensions(mm) |
219*147*41 (Without Connectors) |
||
Weight(kg) |
1.750 |
||
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
