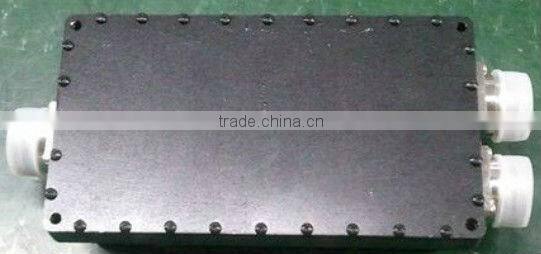

Help CenterCDMA2000&GSM/3G (800-960/1710-2170), RF DIN Combiner
Related Products
-
CDMA2000&GSM/3G (800-960/1710-2170), GSM900/1800 CombinerUS$ 1 - 100MOQ: 3 Pieces -
DCS/3G(1735-1850/1940-2160) RF DCS 3G Combiner (N-female)US$ 1 - 100MOQ: 3 Pieces
-
GSM/DCS/3G (825-960/1710-1880/1920-2170MHz) RF Tri-band CombinerUS$ 1 - 200MOQ: 3 Pieces
-
800-960/1710-1880/1920-2170MHz Tri Band Combiner/TriplexerNegotiableMOQ: 1 Piece
-
GSM&CDMA/DCS/UMTS Three/Tri Band Combiner(Triplexer)NegotiableMOQ: 1 Piece
Specifications
We are manufacturer and OEM1.Low Insertion Loss
2.Low VSWR
3.Short Lead Time and Fast Delievery
4.Competitive Price
Applications:
CDMA2000&GSM/3G(800-960/1710-2170) RF Dual Band Duplexer Combiner (DIN-female)
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
Technical Specifications:
Model |
YFTX-RF-21-NF |
|
| Channel | CH1 |
CH2 |
Frequency(MHz) |
800-960 |
1710-2170 |
Insertion Loss(dB) |
≤0.3dB |
≤0.5dB |
Passband Ripple(dB) |
≤0.2dB |
≤0.3dB |
Outband Rejection(dB) |
≥80@CH2 |
≥80@CH1 |
VSWR |
≤1.25 |
|
IM3 |
≤-130dBC@2×43dBm |
|
Impedance(ohm) |
50 |
|
Power(W) |
200 |
|
Operating Temperature(deg) |
-30~+65°C |
|
Connector Type |
N-K |
|
Dimensions(mm) |
183*102*61 (Without Connectors) |
|
