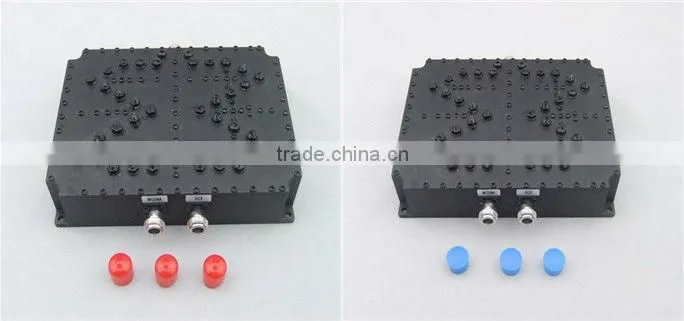

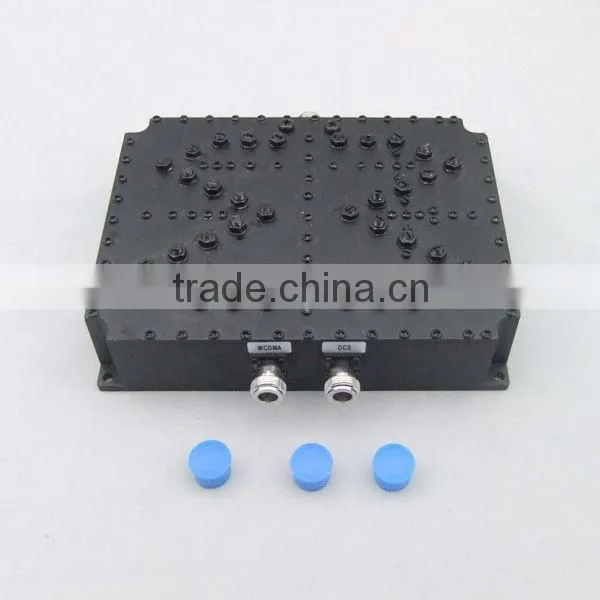

DCS/WCDMA RF Diplexer Combiner(1710-1880/1920-2170MHz)

Name: DCS/WCDMA RF Diplexer Combiner(1710-1880/1920-2170MHz)
Brand: SETSAIL
SKU: 132977069

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

SETSAIL

Model Number:

YFTX-RF-02-NF

Hefei Setsail Telecom Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name SETSAIL

Model Number YFTX-RF-02-NF

Specifications

1.Variours Combiners
2.Manufacturer
3.Low MOQ,competitive price,high quality .
4.OEM service can be provided

Applications: DCS/WCDMA RF Diplexer Combiner(1710-1880/1920-2170MHz)

1. Mobile Communication Network Optimization and In-door distribution system.

2. Cluster communication, satellite communication, shortwave communication and hopping radio.

3. Radar, electronic navigation and electronic confrontation.

4. Aerospace equipment systems.

Technical Specifications:

Product Name	Duplexer	Code	90040001
Product Type	YFTX-RF-02-NF
Port Name	DCS	WCDMA
Frequency Range(MHz)	1710-1880 MHz	1920-2170 MHz
Insertion loss(dB)	≤ 0.8dB	≤ 0.8dB
Ripple in-band(dB)	≤0.6dB	≤ 0.6dB
VSWR	≤1.3	≤ 1.3
Isolation(dB)	≥80dB	≥80dB
Impedance(ohm)	50 Ω
Third-order intermodulation(dBc)	≤-120dBc (2×43dBm)
Power Rating(w)	200W
Connectors	N female
Temperature	-25deg ~ +55deg
Color	Black paint(or Based on customer requirments)
Size(mm)	136mm×110mm×36mm(without tuningscrews,connector)
