Specifications
We are Manufacturer. OEM service provided1,ISO 9001:2001.
2,High Isolation.
3,Low Insertion Loss.
4,quality and quantity gu
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
CDMA825-880 GSM906-960MHz Dual-Band Combiner(Diplexer)
Detailed Technical Specifications:
Model |
YFTX-RFCOM-GSM-NF |
|
CDMA |
GSM |
|
Frequency(MHz) |
825-880 |
909-960 |
Insertion Loss(dB) |
≤0.6dB |
≤0.6dB |
Passband Ripple(dB) |
≤0.3dB |
≤0.3dB |
Outband Rejection(dB) |
≥80@CH2 |
≥80@CH1 |
VSWR |
≤1.25 |
|
IM3 |
≤-120dBC@2×43dBm |
|
Impedance(ohm) |
50 |
|
Power(W) |
200 |
|
Operating Temperature(deg) |
-30~+65°C |
|
Connector Type |
N-K |
|

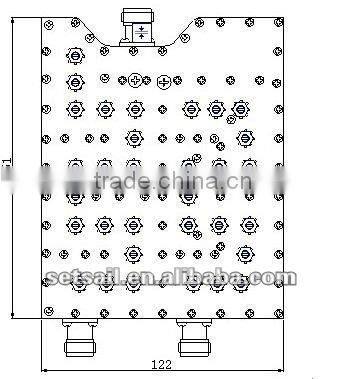

Dimensions(mm) |
151*122*51 (Without Connectors) |
|
