Mine crusher, mine cone crusher
- 100 Unit / Units per Month
- Qingdao Shanghai Tianjin
- T/T Credit Card
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Cone Crusher | Application: | Mining,Building Material,Metallurgy,Chemical Industry. |
Motor Type: | AC Motor | Power(W): | Please refer to the specification | Capacity(t/h): | 5-800 |
Place of Origin: | Henan, China | Brand Name: | Great Wall | Model Number: | High Efficient Cone Crusher |
Dimension(L*W*H): | 2234*1370*1675~4622*3302*4470 (mm) | Weight: | 5-81.4 t | Certification: | ISO & CE |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
"Great Wall Make Great Machine"

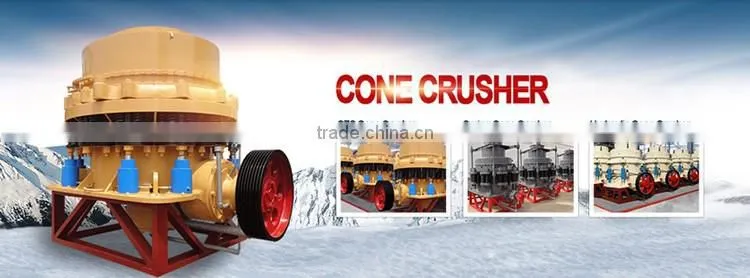

Mine crusher, mine cone crusher
Mine crusher, mine cone crusher Usage and Application
Mine crusher, mine cone crusher is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgy and so on. Mine crusher, mine cone crusher can crush materials with middle and high hardness, such as ironstone, copperore, quartz, metal ore, basalt, granite, limestone, cobblestone, sandstone and so on.
Mine crusher, mine cone crushe can be used as well as in stone crushing production line and sand making plant, therefore Mine crusher, mine cone crusher production capacity has close relationship with client’s investment and profits. Genetal speaking, the largest capacity can reach 800 tons per hour, which can reach all customer's demands. After continuous development, Mine crusher, mine cone crusher not only keeps pace with the times, but also has made great progress in the original foundation. There are many different types of devices emerging in the market to meet diverse demands.
Mine crusher, mine cone crushe Working Principle

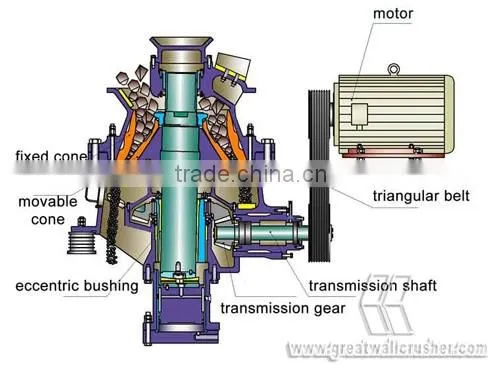

The Mine crusher, mine cone crusher is mainly composed of frame, fixed cone assembly, movable cone assembly, spring mechanism, bowl pedestal part, transmission device and so on, and the auxiliary device includes electrical system, diluted oil lubrication station and hydraulic cleaning chamber system. When Cone crusher works, the motor drives the drive shaft through the pulley and V-belt .The drive shaft and a pair of bevel gear make the eccentric sleeve rotating and this makes the cone axis swing, so sometimes the crushing wall is near the rolling mortar wall, but sometimes they are far away from each other. Stones in the crushing cavity are extruded, impacted, and boned continuously, finally they are crushed.
Mine crusher, mine cone crushe Features
1. High capacity and good quality;
2. Long life for quick-wear parts, and low investment cost;
3. Dilute petrol stations for continuous lubrication to reduce downtime maintenance time.
Mine crusher, mine cone crushe Main Specifications
Model | Chamber Size | Max Feeding | Adjusting Range | Capacity | Motor | Weight | Overall Dimension |
CZS36B | Fine | 85 | 9~22 | 45~91 | 75 | 14.5 | 2656×1746×2410 |
Coarse | 150 | 13-38 | 59~163 | ||||
Extra Coarse | 152 | 25-38 | 118~163 | ||||
CZS36D | Fine | 35 | 3~13 | 27~90 | 15 | ||
Medium | 65 | 5~16 | 36~100 | ||||
Coarse | 85 | 6~19 | 59~129 | ||||
CZS51B | Fine | 115 | 13~31 | 109~181 | 160 | 26.5 | 2958×2354×3156 |
Medium | 178 | 16~38 | 132~253 | ||||
Coarse | 205 | 19~51 | 172~349 | ||||
Extra Coarse | 220 | 25~51 | 236~358 | ||||
CZS51D | Fine | 54 | 3~16 | 36~163 | 27 | ||
Medium | 76 | 6~16 | 82~163 | ||||
Coarse | 89 | 8~25 | 109~227 | ||||
Extra Coarse | 113 | 16~25 | 209~236 | ||||
CZS66B | Fine | 178 | 16~38 | 181~327 | 220 | 51 | 3941×2954×3771 |
Medium | 205 | 22~51 | 258~417 | ||||
Coarse | 228 | 25~64 | 299~635 | ||||
Extra Coarse | 313 | 38~64 | 431~645 | ||||
CZS66D | Fine | 60 | 5~13 | 90~209 | 52 | ||
Medium | 76 | 6~19 | 136~281 | ||||
Coarse | 113 | 10~25 | 190~336 | ||||
Extra Coarse | 125 | 13~25 | 253~336 | ||||
CZS84B | Fine | 236 | 19~38 | 381~726 | 315 | 90 | 4613×3251×4732 |
Medium | 284 | 25~51 | 608~998 | ||||
Coarse | 314 | 31~64 | 789~1270 | ||||
Extra Coarse | 391 | 38~64 | 880~1361 | ||||
CZS84D | Fine | 89 | 5~16 | 190~408 | 92 | ||
Medium | 113 | 10~19 | 354~508 | ||||
Coarse | 151 | 13~25 | 454~599 | ||||
Extra Coarse | 172 | 16~25 | 508~653 |
The machine is fixed tightly when it is sent to the port by professionale truck. Before shipped, it is covered by waterproof material to avoid moisture and rough handling.
Great Wall Company is a professional machine manufacturer with more than 30 years' experience, which specializes in manufacturing all kinds of large and medium sized heavy industry machines. The company not only has established system of designing, testing, inspecting and measuring, but also all kinds of modern production equipments, such as casting , heat treating, welding, machining and so on .
Great Wall Company has professional technology and great production strength, which can meet customers' growing demands. We will spare no efforts to keep improving ourselves to develop our company to be a well-known international enterprise with core competitiveness
We can not only provide wholeheartedly service but also longtime warranty after sale. Before sale, our professional engineer would customize the client according to the production situation and demand. The machine we recommend is NOT the most expensive, NOT maximum profit for us, but the suitable. We insist the concept of “win-win” at the basic of the maximum profit for client. Our aim is to ensure the client to expend least money but create the greatest profit.
After sale, the machine has the 12 months warranty. But one different point from other manufacturers is we provide the professional technology support in the production progress. Any problems about the production, our senior engineer would help to solve them.
50 TPH river stone Mine crusher, mine cone crusher with 0-1 inch size
In a river stone crushing plant, a secondary crusher is need. The main specification as follows:
Material: river stone
Capacity: 50 TPH
Input size: 4 inch
Output size: 0-10 mm, 10 mm – 1 inch
When looking for a secondary crusher, we should take the raw material into consideration. The hardness of river stone belongs to medium and high hardness, so a mining cone crusher machine is suitable. Then we choose a right model according to the capacity, input size and output size. As for this situation, a mine cone crusher machine PYB 1200 is enough, which costs least.
Mine Cone Crusher machine is applied to secondary and fine crushing with large efficient and low investment cost. So it enjoys a great prestige in crushing machine.
Do not hesitate send us inquiry for more details about the Mine crusher, mine cone crusher.
