Standard Color Steel Roof Ridge Cap Roll Forming Machine

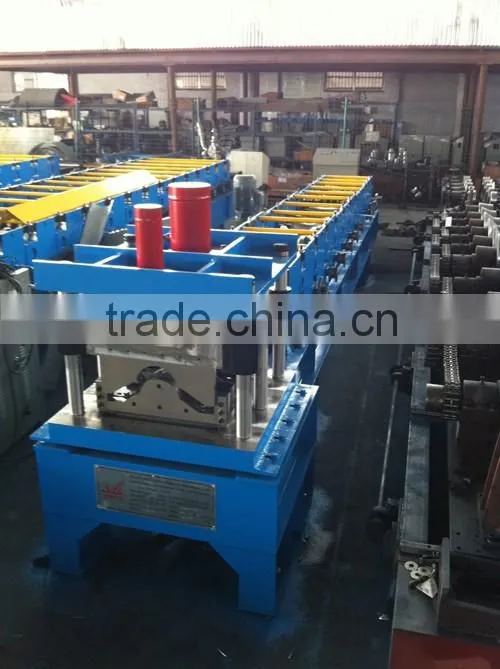

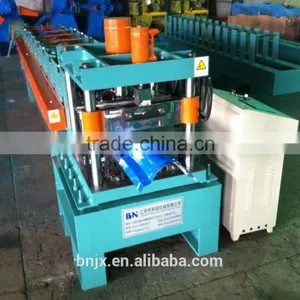

Standard Color Steel Roof Ridge Cap Roll Forming Machine photo-1

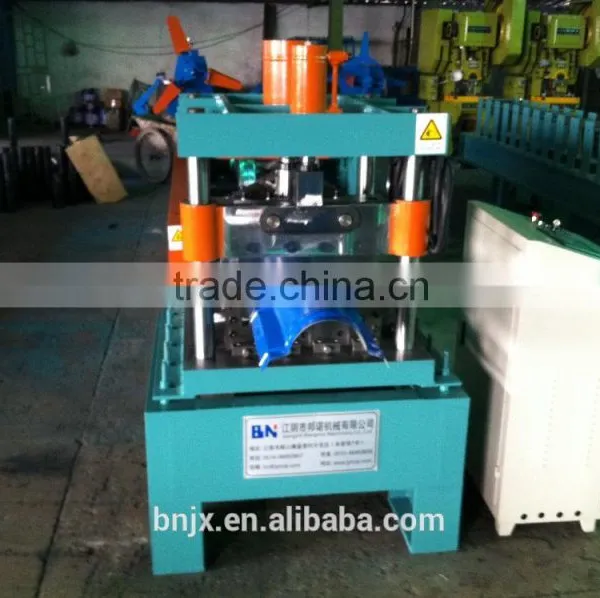

Standard Color Steel Roof Ridge Cap Roll Forming Machine photo-2

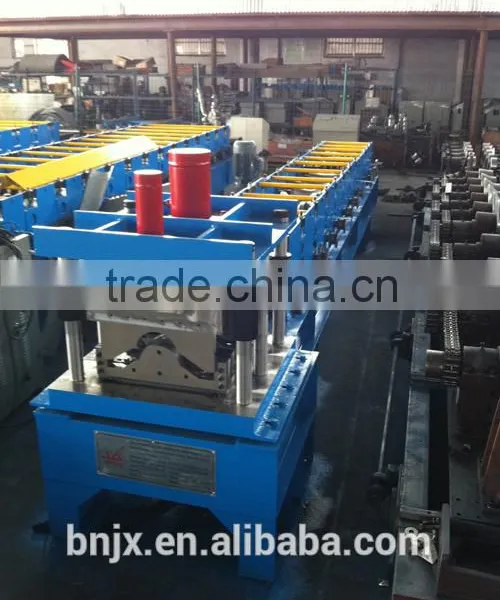

Standard Color Steel Roof Ridge Cap Roll Forming Machine photo-3
Standard Color Steel Roof Ridge Cap Roll Forming Machine photo-4
US$ 1,600 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Roof
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Roof
Automatic Grade Automatic
Production Capacity 10-15m/min
Place of Origin Jiangsu, China
Brand Name BN
Model Number steel roofing/panel roll forming machine
Voltage 380V 50Hz 3phases
Power(W) 4KW
Dimension(L*W*H) 5500*800*1200
Weight 4 tons
Features Automatic
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Main Features

1. Compact and elegant

2. PLC automatic control

3. Touch screen operation

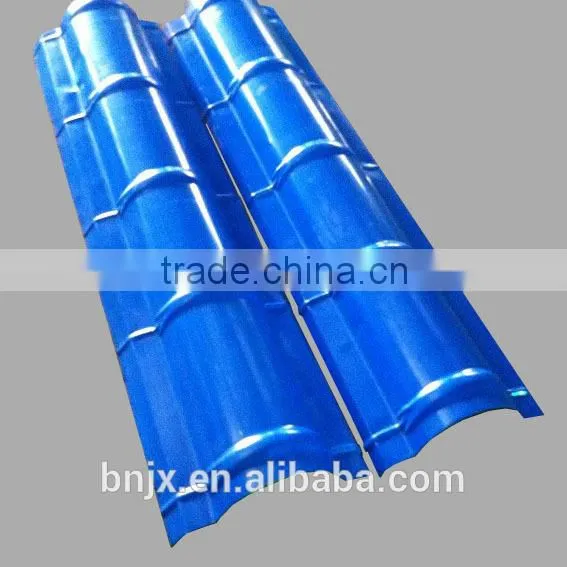

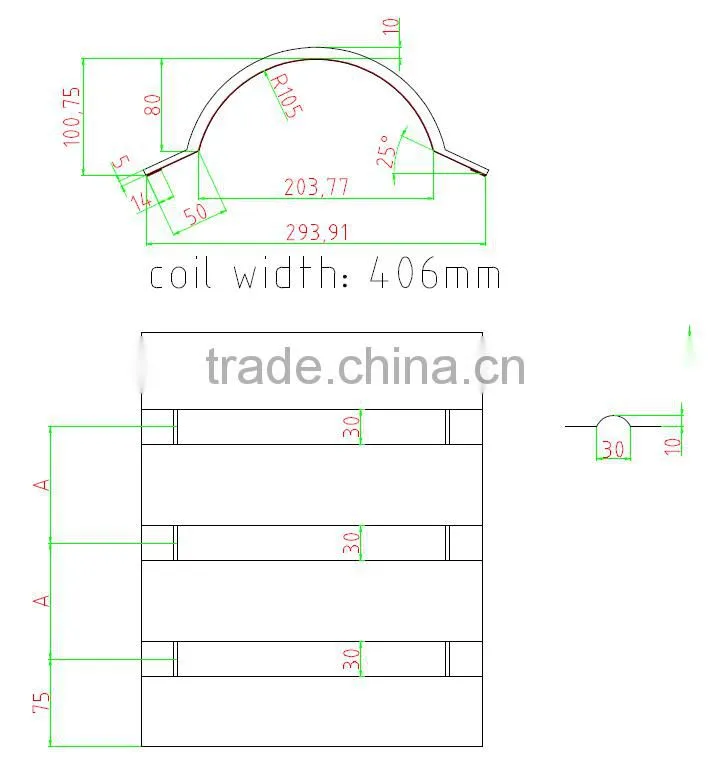

profile


Equipment Flowsheet
Detailed Technology
Uncoiler
Dimensions
1700mm*1000mm*800mm
Width of feeding
300mm
Capability
3Ton
Range of expand(by manual)
 420mm—510mm
Mode of expand &fight
manual
Color
blue
Forming Section
 Roller material
SAE1045, chrome plated surface
Thickness range
0.4-0.7mm
Main motor power
4kw, AC motor, motor inside of main machine
Roll station
7stations+4 station of side roller (base on final design)
Shaft diameter
¢65mm
 Machine roll forming speed
 not less than 15m/min
Transmission
by chain, 1.0inch double line
Output table
Frame
welding by tube
Size
about 2.0m long*0.3mwide*0.9mhigh
One out table with two support roller
Supporter roller
ASTM 1045 with chrome
 Diameter of rollers
55mm
Quantity
2units

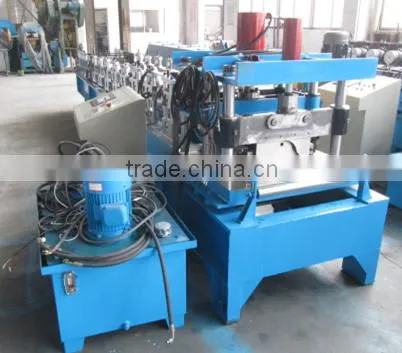

Hydraulic station
Hydraulic power
3kw
Working pressure
10Mp adjustable
Solenoid valve
2 groups
Hydraulic oil
46# hydraulic oil
Color
Blue (or base on customer request)
Quantity
1
Control desk
Programmable setting of profile length and quantity
Automatic stopping of the equipment after completion of the cutting programme will be provided.

 language
English and Chinese
Voltage, Frequency, Phase
380 V, 50 Hz, 3Phase
Control panel
Button-type switch and touch screen
Unit of length
millimeter
PLC brand
Panasonic
Packing & Delivery

No paking, directly fix the machine to the container with belt and wood.

Certifications
Our Service

1.1 year and life-long maintenance;

2.Installation and debugging:We will send professional engineer to make installation and debugging,buyer pay our engineer eachi one 50USD/day,and provide accommodation ,food and the round-trip ticket fee;

3.Installation Days:about 5-7 days


Our machine is definitely guarantee for 12 months. If there is any problem,we will send the technician to fix the problem ASAP!
