Product Details
Place of Origin: | Zhejiang, China | Brand Name: | WANSHFA | Model Number: | DS-429 |
Protection Level: | IP65 | Max. Current: | 250V | Max. Voltage: | 3 |
Product Description
Specifications
1.supply OEM,ODM for all kinds of push switchfessional manufacturer and exporter
3.great variety for you choose

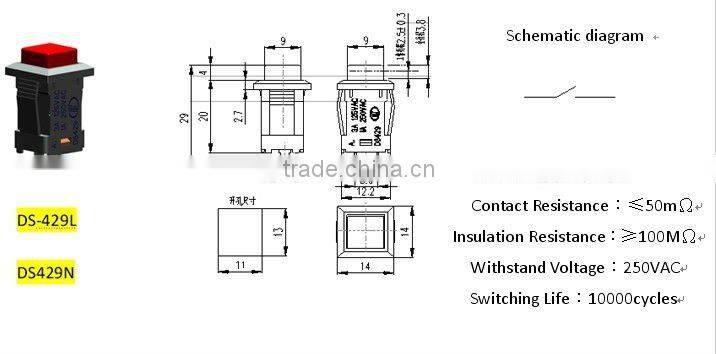

DS-429 Push button switch
Description
DS-429 push button switch External AppearanceVisual measurement: surface of metals cleanness, no rust stain, no cladding shell off
Temperature-25~ +70°C
Relative Humidity( 40°C) ≤ 95%
Normal Load 3A AC 250V
Withstand VoltageAC250V (50Hz)/1min
Contact Resistance ≤0.05Ω
Insulation Resistance ≥100MΩ
Travel 4mm
Service Life 100,000 Cycles
Operating Force 2N
Center Distance2.2mm
Diameter7mm
Height21.4mm
Length of Terminal 5.1mm
Width of Terminal 0.5mm
Quantity of Terminals 2
Setup ModeVertical Plug-in
Color of KeyRed
Lock Mechanism Lockless
UsesInstrument,Meter,Household Appliances,
Weighing apparatus etc
Note:
1.All parts made of withstand high temperature and RoHS parts raw materials.
2.Please contact us to get the drawing of the switch.
