Specifications
1.push button2.OEM ODM push button
3.great variety push button
4.10 years experience for push button
5.CE,ISO
XB2 LED push button switch 250v 3a/button/push button switch/button
Description for push button switch
push button switch External AppearanceVisual measurement: surface of metals cleanness, no rust stain, no cladding shell off
Temperature-25~ +70°C
Relative Humidity( 40°C) ≤ 95%
Normal Load 3A AC 250V
Withstand VoltageAC250V (50Hz)/1min
Contact Resistance ≤0.05Ω
Insulation Resistance ≥100MΩ
Travel 4mm
Service Life 100,000 Cycles PBS-2BA31 push button switch with indicator light
Operating Force 2N
Center Distance2.2mm
Diameter7mm
Height21.4mm
Length of Terminal 5.1mm
Width of Terminal 0.5mm
Quantity of Terminals 2
Setup ModeVertical Plug-in
Lock Mechanism Lockless
UsesInstrument,Meter,Household Appliances,
Weighing apparatus etc
Note:
1.All parts made of withstand high temperature and RoHS parts raw materials.
2.Please contact us to get the drawing of the switch.

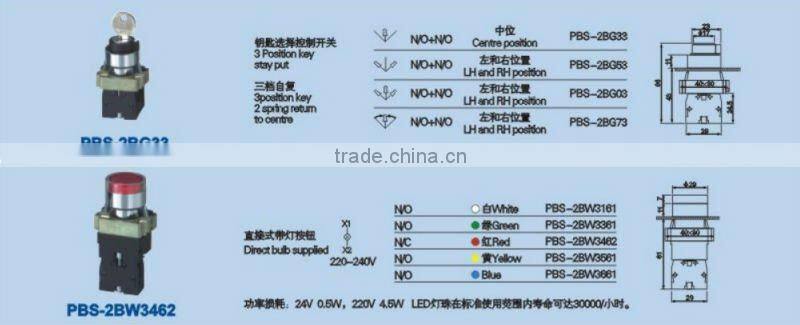

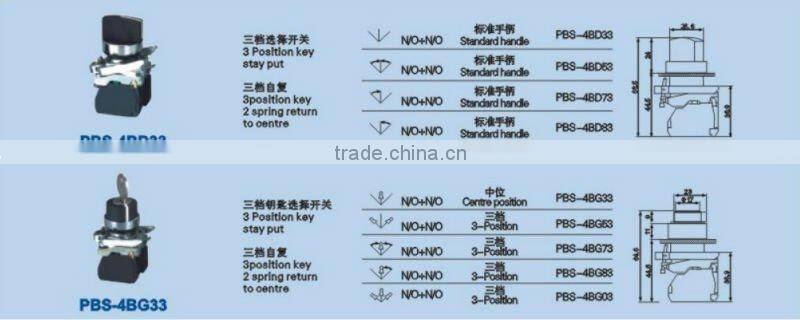

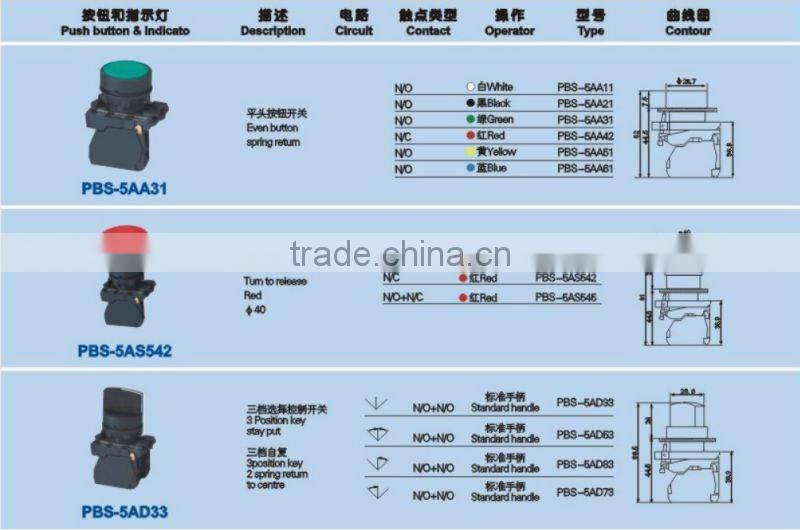

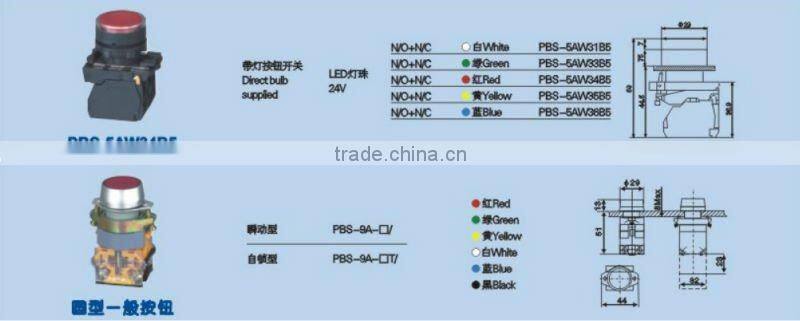

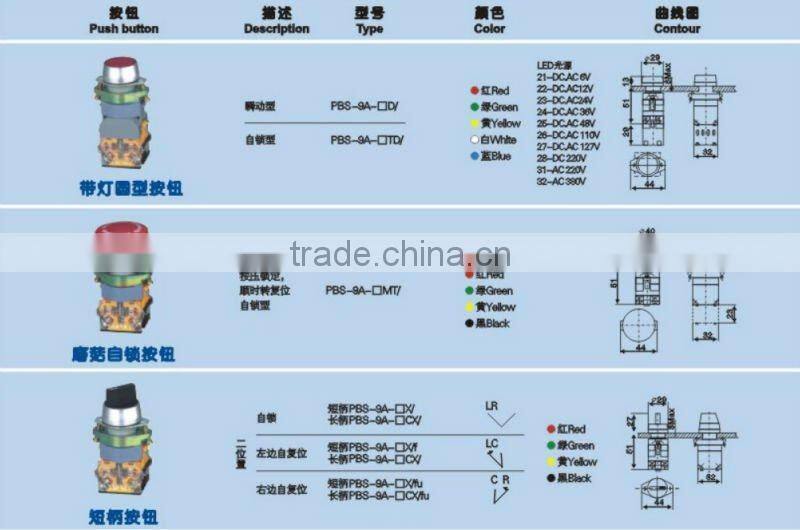

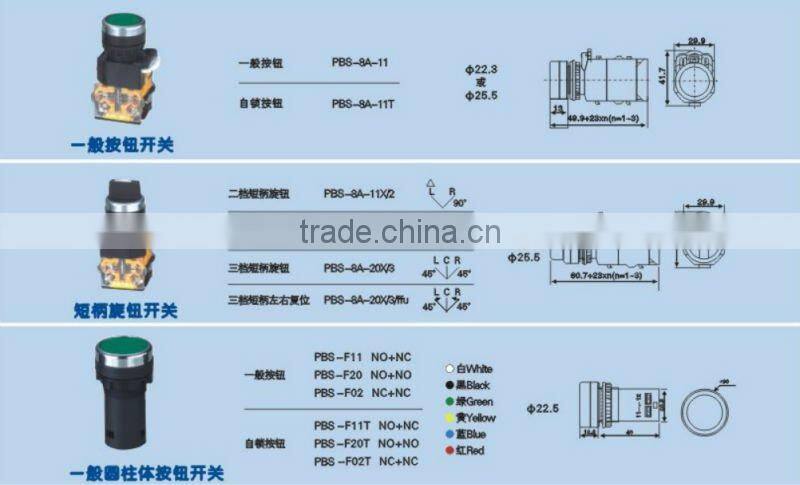

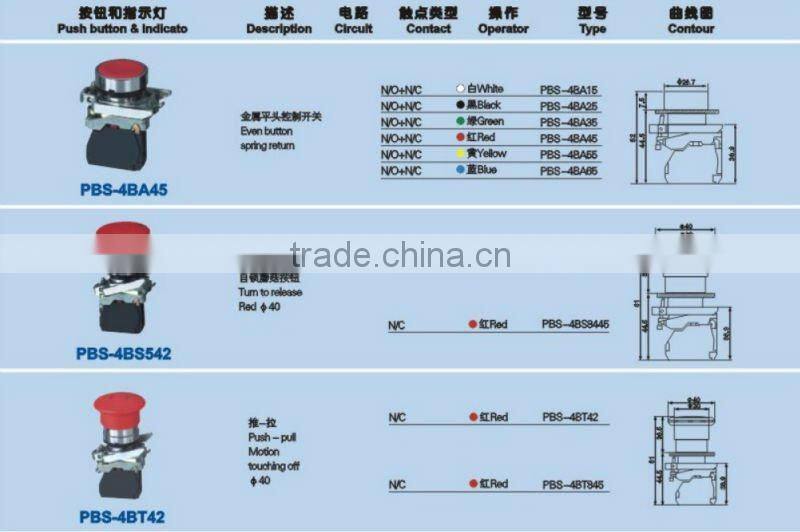

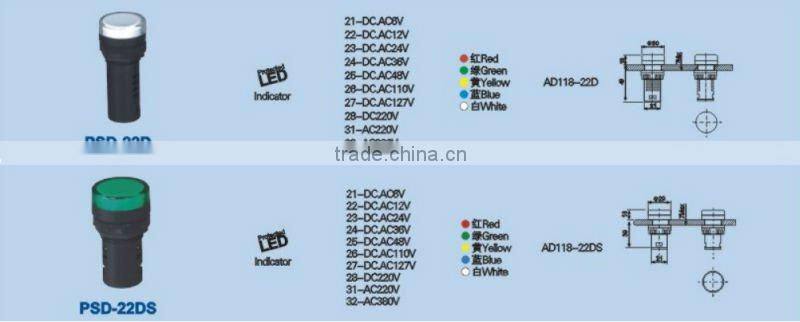

Catalogue for push button
