Help CenterDS110 Small Electric Push Switch
US$ 0.096 - 0.13
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WANSHFA
Model Number:
DS-110
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pushbutton SwitchNegotiableMOQ: 5000 Pieces -
DS110 Push Types of Electrical SwitchUS$ 0.096 - 0.13MOQ: 5000 Pieces
-
DS-430 Push Button Types of Electrical SwitchUS$ 0.046 - 0.055MOQ: 5000 Pieces
-
Push Button SwitchUS$ 0.55 - 0.75MOQ: 5000 Pieces
-
12 Volt Push Button SwitchUS$ 0.55 - 0.75MOQ: 5000 Pieces
Place of Origin
Zhejiang, China
Brand Name
WANSHFA
Model Number
DS-110
Protection Level
IP 65,66
Max. Current
3a
Max. Voltage
250V
Specifications
DS110 small electric push Switch1.Single pole,mini push switch
2.1a 250vac, 3a 125vac
3.on on, on off
4.CE,CCC,ISO9001

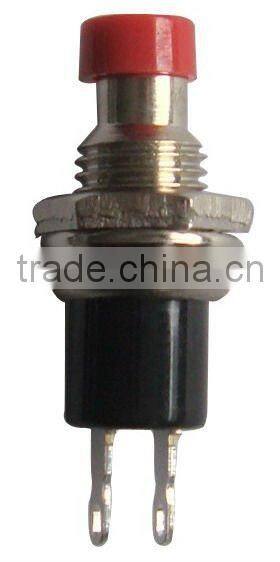

DS110 small electric Push Switch
Description:
15 years' experience of manufacturing in this field.
External AppearanceVisual measurement: surface of metals cleanness, no rust stain, no cladding shell off
Temperature-25~ +70°C
Relative Humidity( 40°C) ≤ 95%
Normal Load 1A AC 250V
Withstand VoltageAC250V (50Hz)/1min
Travel 4mm
Service Life 100,000 Cycles
Operating Force 4N
Center Distance2.2mm
Diameter:7mm
Height:21.4mm
Length of Terminal 5.1mm
Width of Terminal 0.5mm
Quantity of Terminals 2
Setup ModeVertical Plug-in
Color of Key :Red
Lock Mechanism Lockless
UsesInstrument,Meter,Household Appliances,
Push button switch, push switch, push switches, electric push switch, mini push switch
Specification:
| Rating | 1A 250V 3A 125VAC |
| Contact resistance |
≤50mΩ |
| Insulation resistance | ≥100mΩ |
| Withstand voltage | 500VAC |
| Switching life | ≥10000cycles |

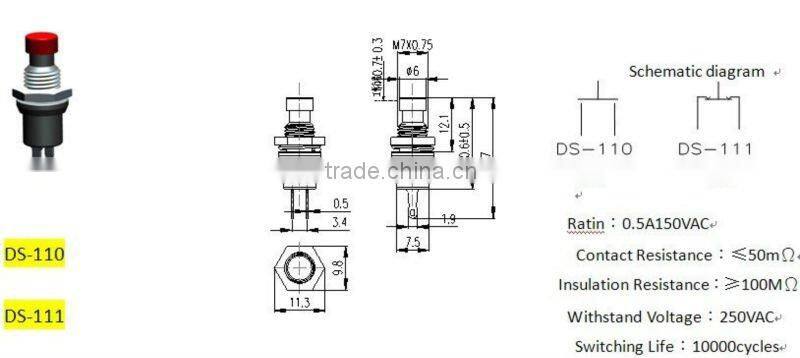

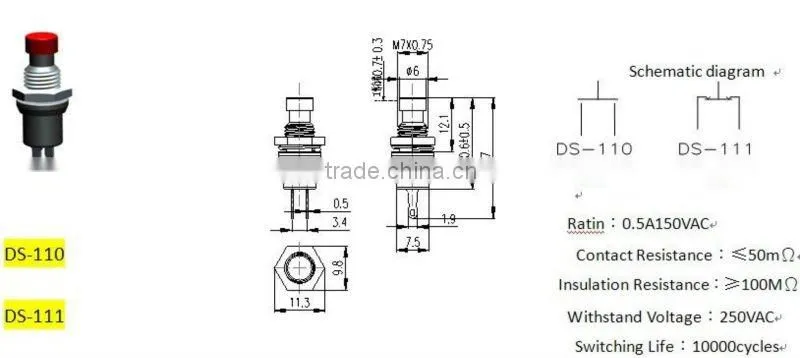

Contour:
