Tile Making Machine for Color Glazed Steel Sheet Roofing/step Tile

Tile Making Machine for Color Glazed Steel Sheet Roofing/step Tile photo-1

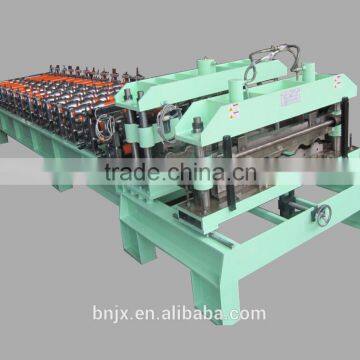

Tile Making Machine for Color Glazed Steel Sheet Roofing/step Tile photo-2
Tile Making Machine for Color Glazed Steel Sheet Roofing/step Tile photo-3

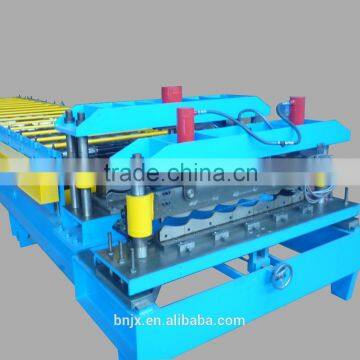

Tile Making Machine for Color Glazed Steel Sheet Roofing/step Tile photo-4
Tile Making Machine for Color Glazed Steel Sheet Roofing/step Tile photo-5

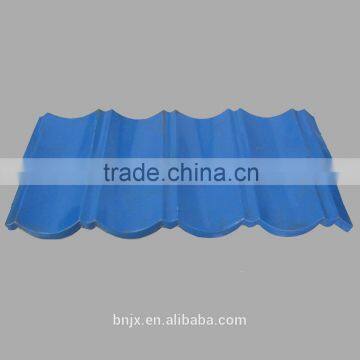

Tile Making Machine for Color Glazed Steel Sheet Roofing/step Tile photo-6
US$ 2,700 - 33,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Roof
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Roof
Automatic Grade Automatic
Production Capacity 2-4m/min
Place of Origin Jiangsu, China
Brand Name BN
Model Number steel roofing/panel roll forming machine
Voltage 380V 50Hz 3phases
Power(W) 5.5KW
Dimension(L*W*H) 7000*1500*1200
Weight 5.5 tons
Features Automatic
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Main Features

Steel tile roll forming machine adopts new station to increase the solidity of the machine;

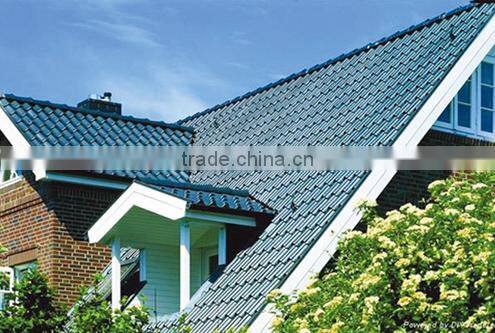

products are widely used in modern architecture roofing, the product increased the housing aesthetics.

1. Compact and elegant

2. PLC automatic control

3. Touch screen operation

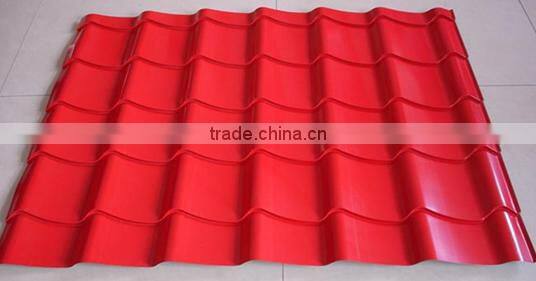

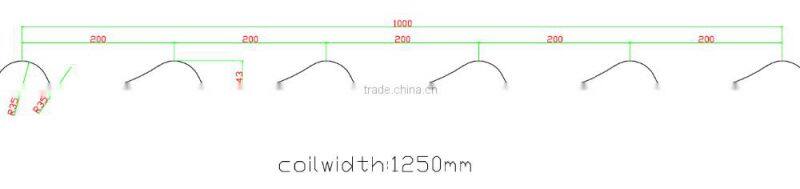

profile


Equipment Flowsheet
Detailed Technology
5T manual decoiler
Dimensions
1700mm*1000mm*800mm
Width of feeding
1250mm
Capability
5 Ton
Inter diameter
 480mm—570mm
Mode of expand &fight
manual
Color
blue
Forming Section
 Roller material
ASTM1045 chrome plated surface with chrome, CNC
Thickness range
0.4-0.6mm
Main motor power
5.5kw, AC motor, motor inside of main machine
Roll station
about 11 stations (according the final design)
Shaft diameter
¢70mm
 Machine roll forming speed
2-4m/min
Transmission
by chain, one inch
Output table
Frame
welding by tube
Size
about 1.0m long*1.0mwide*0.9mhigh
One out table with some support roller
Supporter roller
ASTM 1045 with chrome
 Diameter of rollers
55mm
Quantity
2units
Hydraulic station
Hydraulic power
5.5kw
Working pressure
12Mp adjustable
Solenoid valve
2 groups
Hydraulic oil
46# hydraulic oil
Color
Blue (or base on customer request)
Quantity
1
Control desk
Programmable setting of profile length and quantity
Automatic stopping of the equipment after completion of the cutting programme will be provided.

 language
English and Chinese
Voltage, Frequency, Phase
380 V, 50 Hz, 3Phase
Control panel
Button-type switch and touch screen
Unit of length
millimeter
PLC brand
Panasonic
Packing & Delivery

No paking, directly fix the machine to the container with belt and wood.

Certifications
Our Service

1.1 year and life-long maintenance;

2.Installation and debugging:We will send professional engineer to make installation and debugging,buyer pay our engineer eachi one 50USD/day,and provide accommodation ,food and the round-trip ticket fee;

3.Installation Days:about 5-7 days


Our machine is definitely guarantee for 12 months. If there is any problem,we will send the technician to fix the problem ASAP!
