W Beam Steel Highway Guardrail Roll Forming Machine

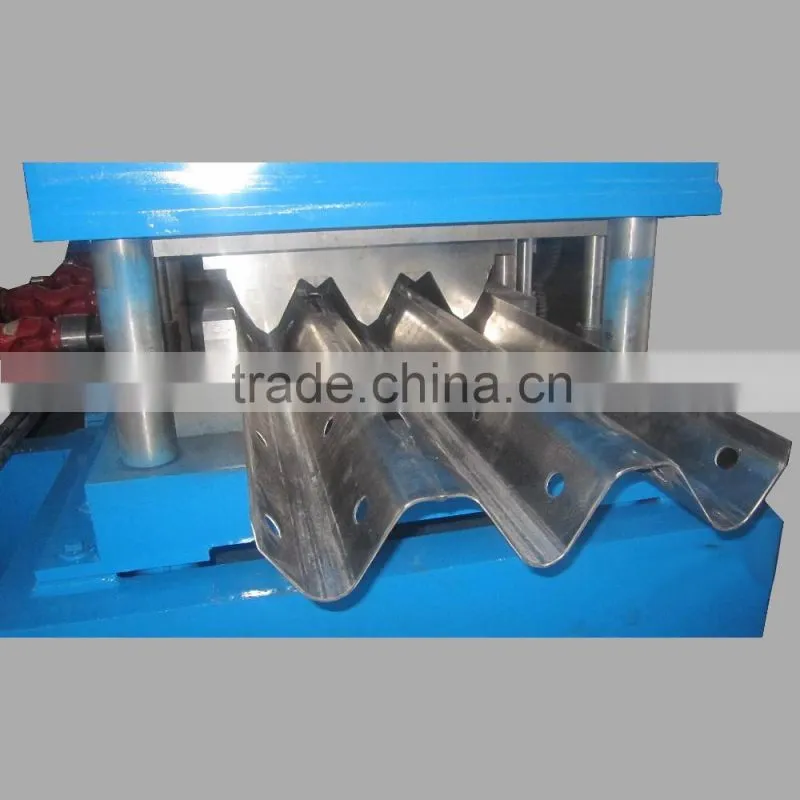

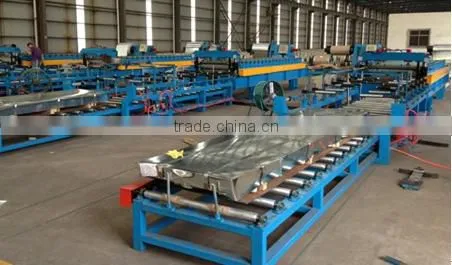

W Beam Steel Highway Guardrail Roll Forming Machine photo-1
W Beam Steel Highway Guardrail Roll Forming Machine photo-2

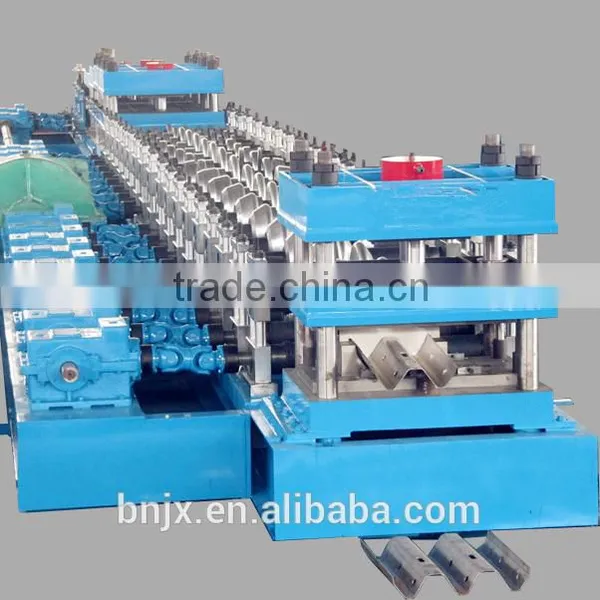

W Beam Steel Highway Guardrail Roll Forming Machine photo-3

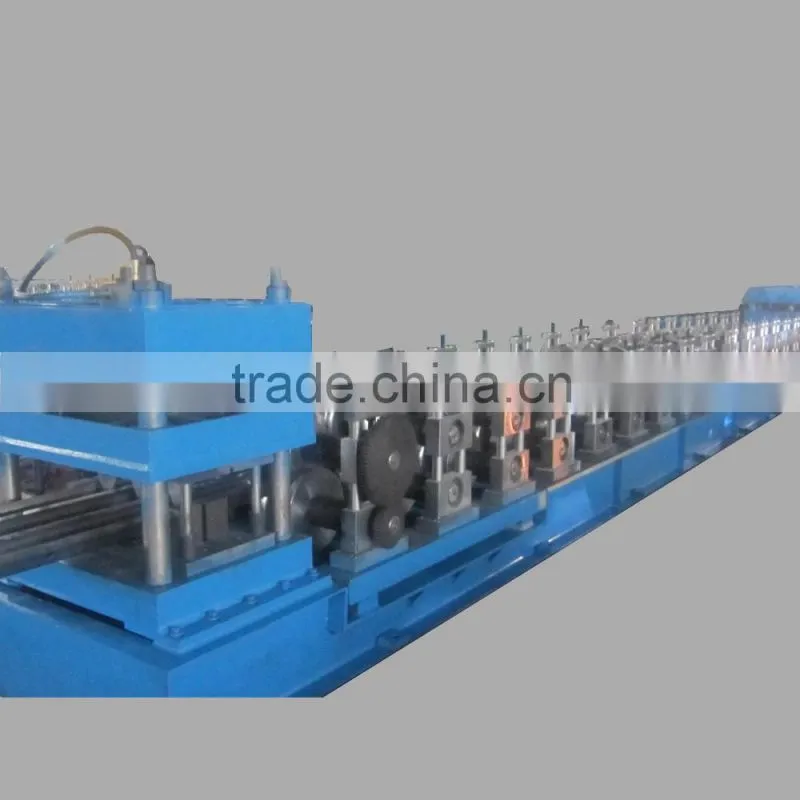

W Beam Steel Highway Guardrail Roll Forming Machine photo-4
US$ 16,000 - 31,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Wall Panel Machine
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Wall Panel Machine
Automatic Grade Automatic
Production Capacity 0~15m/min
Place of Origin Jiangsu, China
Brand Name BN
Model Number Tile Forming Machine
Voltage 380V 50Hz 3phases
Power(W) 55 KW
Dimension(L*W*H) 18000*2200*1500
Weight 10 tons
Features Automatic
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Main Features

1. Compact and elegant

2. PLC automatic control

3. Touch screen operation

profile


Equipment Flowsheet
Detailed Technology
5T hydraulic decoiler
Steel coil width
from 1000 mm to 1250 mm
Internal diameter of coil
variable, from 480 mm to 530 mm
Coil placement in the coil holder
hydraulic hoist
Maximum coil weight
5000 Kg
Working speed
0-15m/min adjustable
Maximal out diameter
2000mm
Main motor power
5.5KW AC motor
Hydraulic power
4kw

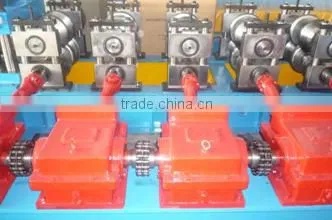

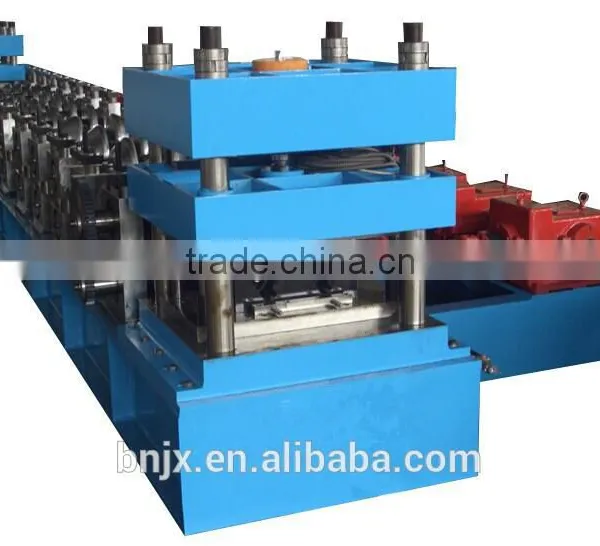

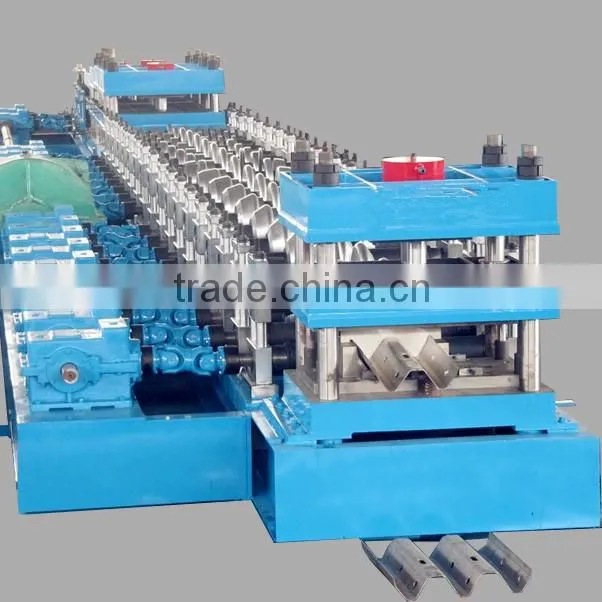

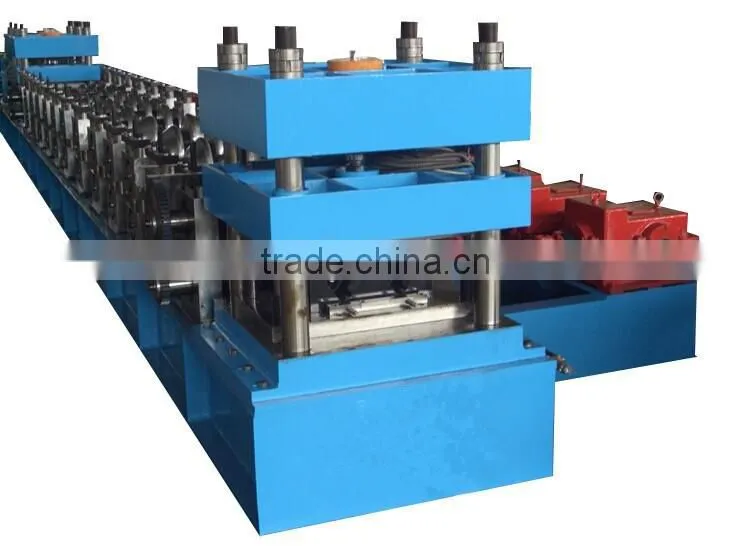

Forming Section
Cycloidal pin wheel reducer
BWD14-43-55KW
Thickness range
3.0-4.0mm
Main motor power
55kw, AC motor, motor inside of main machine
Roll station
16stations (according the final design)
Shaft diameter
¢110mm
 Machine roll forming speed
0m-15m/min(without punching)
Transmission
by gear box 【170#】
Auto stacker and transmission table
Take the sheet by air compressor, 5.5KW( provide by customer)
Air cylinder swing arm size
40mmx80mm
Transmission power
4kw AC motor
Stacker length in 12m, transmission table length in 25m
Drive of transmission
by 1.0inch double line chain
Transmission roller
ASTM1045 with chrome, diameter of roller is in 80mm
Carrying capacity
maximal 5000Kg
 Length of capacity
500-12000mm
The maximal stacker height
300mm
Hydraulic station
Hydraulic power
11kw
Working pressure
20-25Mpa adjustable
Solenoid valve
3groups
Hydraulic oil
46# hydraulic oil
Color
Blue (or base on customer request)
Quantity
1
Control desk
Programmable setting of profile length and quantity
Automatic stopping of the equipment after completion of the cutting programme will be provided.

 language
English and Chinese
Voltage, Frequency, Phase
380 V, 50 Hz, 3Phase
Control panel
Button-type switch and touch screen
Unit of length
millimeter
PLC brand
Panasonic

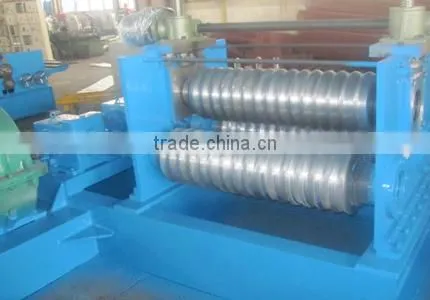

3 Station Curving Machine
Thickness
3-4mm
Maximal feeding width
1000mm
Roll speed
0—10m/min
Main power
30KW
Roll station
3 stations
Shaft material
45# forge steel, polished and coated with chrome
Diameter of shaft
180mm
Material of roller
Gcr15 steel, polished and with HRC58-62°
Adjust angle motor power
3KW
Dimension of machine
2000 mm×1200 mm×1300 mm
Drive
by gear box
Curving mode
horizontal
Curving diameter
≥800mm
Packing & Delivery

No paking, directly fix the machine to the container with belt and wood.

Our Service

1.1 year and life-long maintenance;

2.Installation and debugging:We will send professional engineer to make installation and debugging,buyer pay our engineer eachi one 50USD/day,and provide accommodation ,food and the round-trip ticket fee;

3.Installation Days:about 5-7 days


Our machine is definitely guarantee for 12 months. If there is any problem,we will send the technician to fix the problem ASAP!
