Help CenterKW3 Micro Types of Electrical Switches
Related Products
Specifications
KW3 micro types of electrical switches1.In:5A,250VAC
2.10A 125VAC/T125 5E4
3. micro type of electrical switches
4.CCC,CE
KW3 micro types of electrical switches/ types of electrical switch
15 years' experience of manufacturing in this field.
Nice appearance,tight configuration.
Characteristic:small contact clearance.
Quick action,high sensitivity and small operating travel.
Long life,high reliability.

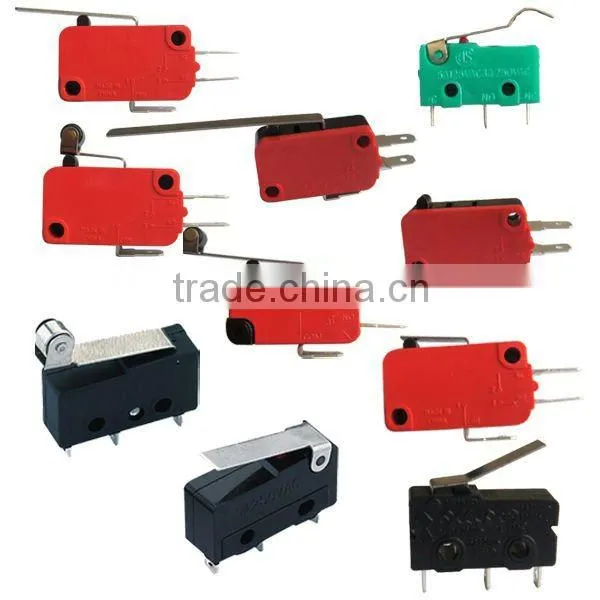

A variety of models with low operating force to high operating force are available.
micro types of electrical switch is suitable for using in each kind of control circuit with the rated voltage less than 250V and rated current less than 20A (DC and AC effective value) for controlling elements. It is the sense switch with the certain movement strength through the certain travel ling to cause the electronic contact speed but to transform the electric circuit. It has small gap, instantaneous movement and small travel ling characteristics. It is widely used in electronic products, instrument measuring appliance and domestic electric appliances and so on ,For example: Computer mouse ,auto omobile electronic products, communication equipment, war industry product, measuring instrument, fuel gas water heater, coal gas stove ,small household electrical appliances and so on.
Specification:
| Rating | 5A125/250VACT125 5A250VAC5E4 5A250VAC 10A125VAC/10A250VAC |
| Contact resistance | ≤50Ω |
| Insulation resistance | ≥100Ω |
| Withstand voltage | ≥750VAC/1min |
| Switching life | ≥10000cycles |

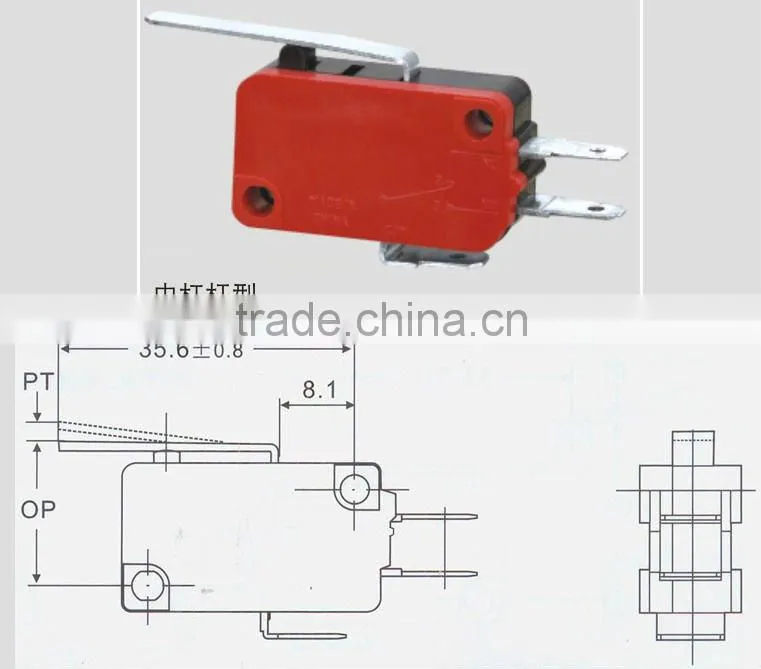

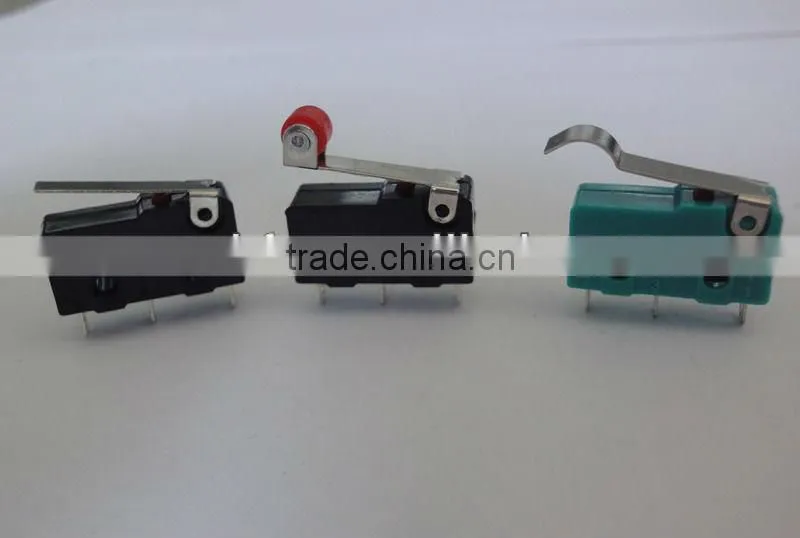

Outlook:
