Home > Products > Micro Switch > KW3 types of micro switch
KW3 types of micro switch
- 10000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card
- High lifespan KW2-3 series KW2-3-02P-30-5 micro switch long handle small micro action
- Limit Switches Professional Customised Source Factory Silver Contact Quick Switch for Rail Transportation
- Travel Limit Switches Manufacturers Direct Sales Self-cleaning contacts Micro Switches for Automation Control
- Micro Switch Waterproof Strength Factory Professional Customised Micro Switch Waterproof for Rail Switches
- LXC micro switch high-voltage switch is suitable for high-speed rail transit travel switch circuit breakers
- Magnetic blow micro switch high voltage switch for railroad transportation pure silver contact PC housing
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | WANSHFA | Model Number: | KW3 |
Max. Current: | 10a | Max. Voltage: | 250V | Operating Temperature: | -20~80 |
Protection Level: | IP65 |
Product Description
Specifications
KW3 types of micro switch1.In:5A,250VAC
2.10A 125VAC/T125 5E4
3. micro switch,mini micro switch
4.CCC,CE,ISO9001
KW3 types of micro switch/ micro switches/ mini micro switch
15 years' experience of manufacturing in this field.
Nice appearance,tight configuration.
Characteristic:small contact clearance.
Quick action,high sensitivity and small operating travel.
Long life,high reliability.
A variety of models with low operating force to high operating force are available.
micro switch is suitable for using in each kind of control circuit with the rated voltage less than 250V and rated current less than 20A (DC and AC effective value) for controlling elements. It is the sense switch with the certain movement strength through the certain travel ling to cause the electronic contact speed but to transform the electric circuit. It has small gap, instantaneous movement and small travel ling characteristics. It is widely used in electronic products, instrument measuring appliance and domestic electric appliances and so on ,For example: Computer mouse ,auto omobile electronic products, communication equipment, war industry product, measuring instrument, fuel gas water heater, coal gas stove ,small household electrical appliances and so on.
Specification:
Rating | 5A125/250VACT125 5A250VAC5E4 5A250VAC 10A125VAC/10A250VAC |
Contact resistance | ≤50Ω |
Insulation resistance | ≥100Ω |
Withstand voltage | ≥750VAC/1min |
Switching life | ≥10000cycles |
micro switch, mini micro switch, types of micro switch, micro switches

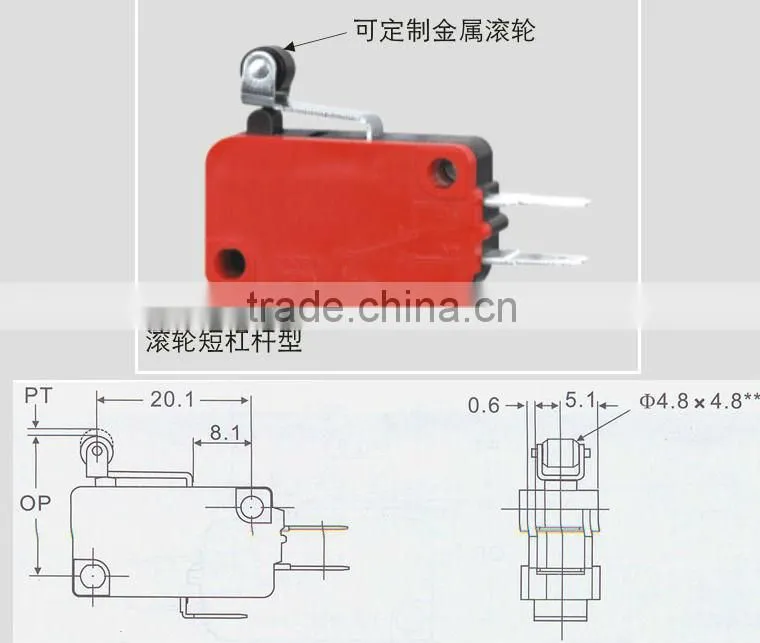

Outlook:
